7.6.2 RECIPE NO. 550

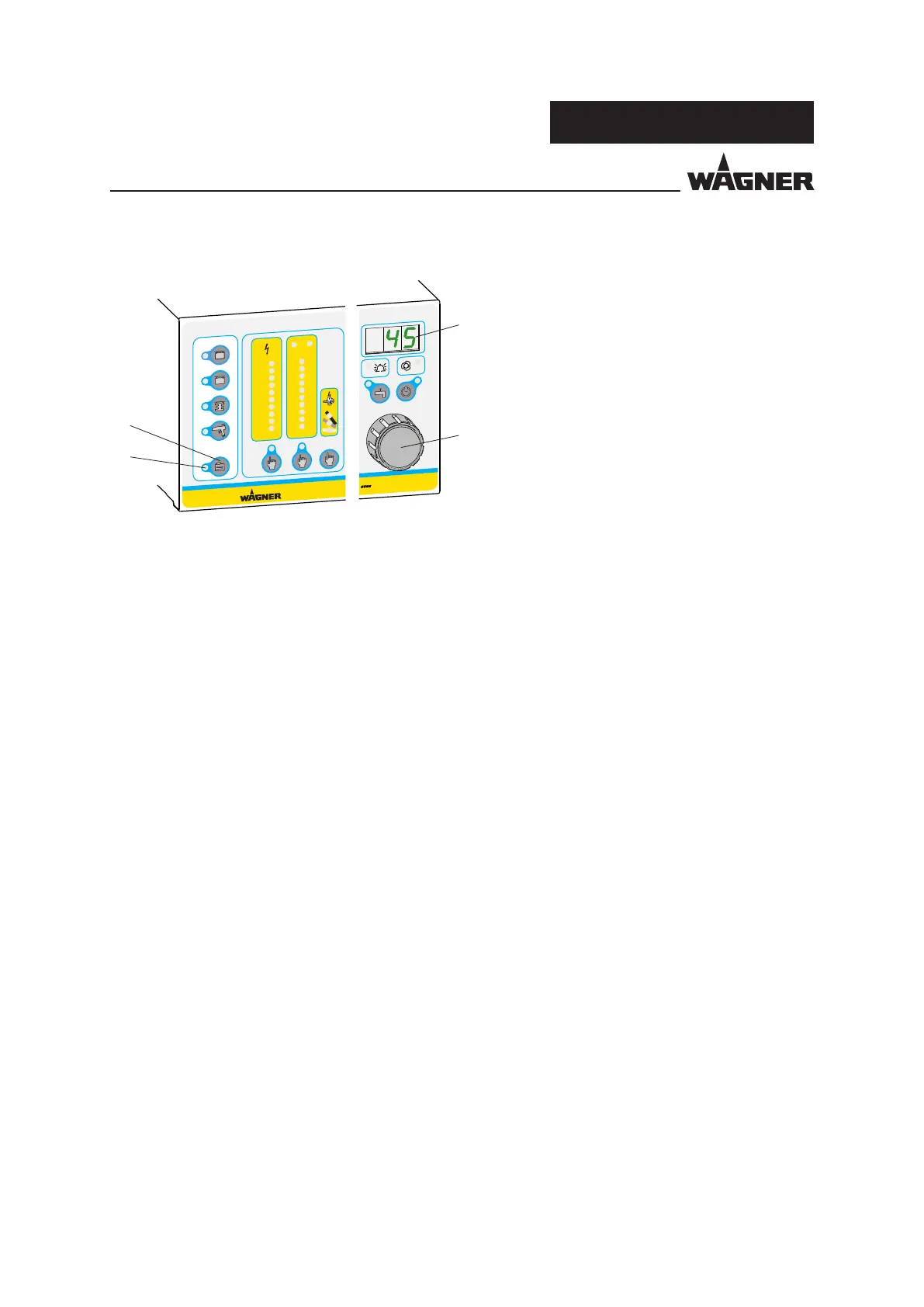

Recipes 5-50 can be indirectly selected and saved. First press the "Additional Recipes"
button 25. The yellow "Additional Recipes" LED 26 then lights up and the LED display 19
indicates the current recipe number. The required recipe can be set by turning the universal
rotary controller 24. In the following example, the values in recipe no. 10 are to be modied
and saved.
Procedure:
1. Select recipe no. 10.
2. Set the desired values in the recipe (see Chapters 7.7.1-7.7.8).
3. Instead of showing the current recipe number, the LED display 19 now shows the
modied value.
4. To save the changes, hold down the "Additional Recipes" button 25 until the previous
recipe number ashes in the LED display 19.
5. To save the values, there are two options:
– To save the recipe to the recipe number currently displayed, hold the "Additional
Recipes" button 25 down for another 2 seconds until the yellow "Additional
Recipes" LED 26 ashes quickly. The modied values are then saved to the original
recipe.
– To save the changes to another recipe number, use universal rotary controller
24 to set the desired recipe number - this is now displayed ashing. To save the
values, press and hold down the "Additional Recipes" button 25 for 2 seconds until
the yellow "Additional Recipes" LED 26 ashes quickly. The changes are thereby
saved to the set recipe number.
