OPERATING MANUAL
VERSION 09/2017 ORDER NUMBER DOC2354913

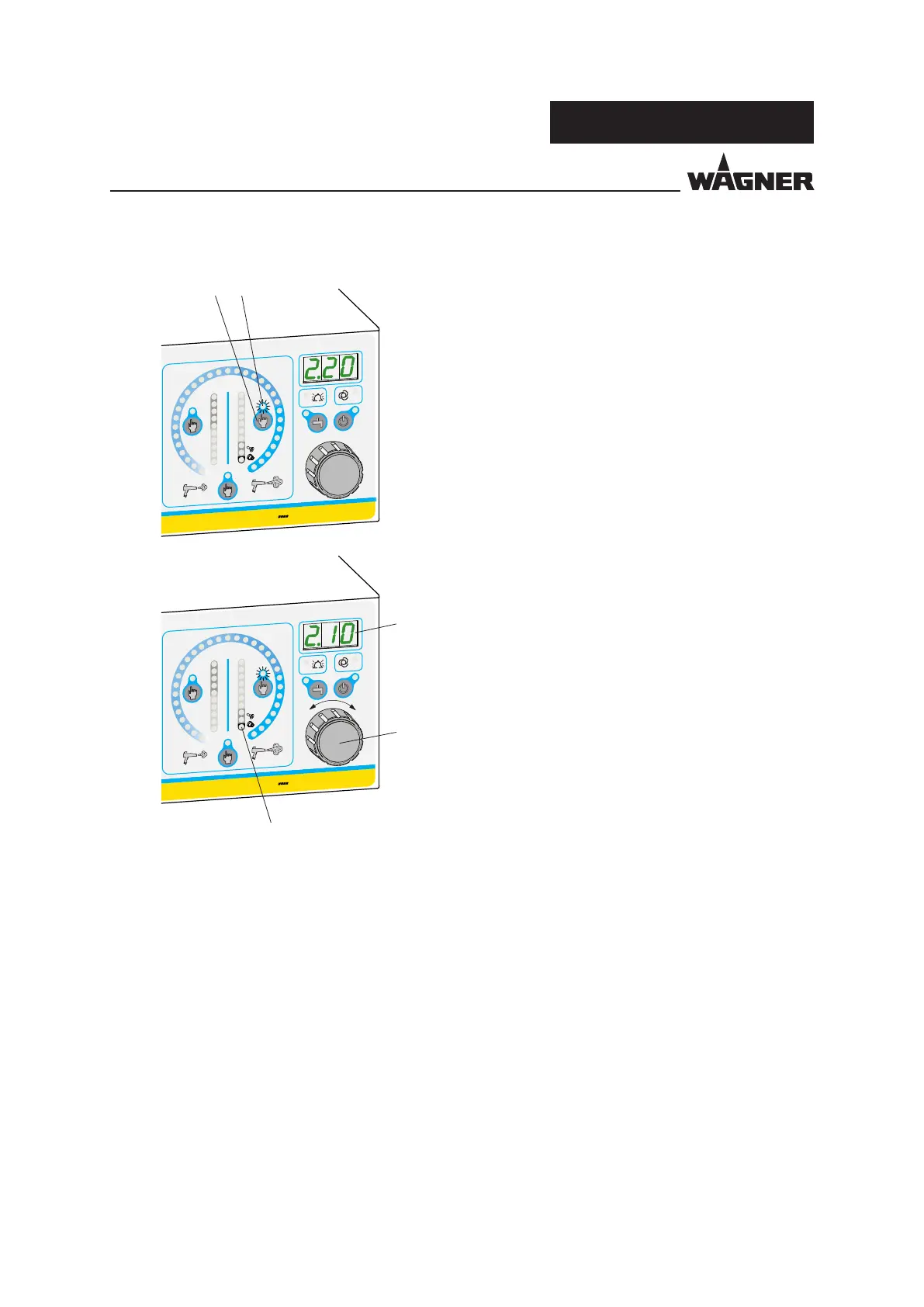

7.7.3 SETTING THE ADDITIONAL AIR ATOMIZING/IONIZING/TRIBO AIR VOLUME
The "Additional Air" bar graph display 35 can be found to the left of the "Additional Air"
button 21. When the control unit is in the ready position, this light strip shows the set point
as a dot and when powder feeding is switched on it shows the actual value as a bar.
Dierent amounts of air are required depending on the type or gun and/or nozzle. For the
correct settings, please refer to the operating manual for the relevant powder spray gun.
The additional air volume can be set between 0.05 and 4 m³/h as described above.
The additional air cannot be fully deactivated, therefore the spray gun always receives
minimal additional air.
Procedure:
1. Press "Additional Air" button 21 to set the
additional air volume. Yellow LED23 indicates that
the additional air is selected.
2. The additional air volume can now be adjusted
using the universal rotary controller 24 between
0.05-4.0 m³/h with a resolution of 0.05 m³/h. The
value is shown in the LED display 19.

WAGNER EPG-SPRINT XE Specifications

General

Brand	WAGNER
Model	EPG-SPRINT XE
Category	Paint Sprayer
Language	English
