WAGNER EPG-SPRINT XE User Manual

51
EPG-SPRINT XE
EPG
SPRINT X
0
%
100
%
kV
80
60
40
20
100
Tri Cor
5
4
3
2
1
120
80
40
20
10
10
20
30
40
50
60
70
80
90
Ø
12
10
11
9
8
m /h
2.0
3.0
0.5
0.3
0.1
1.5
3
5.5
4.5
3.5
2.5
Tri
µA
EPG
SPRINT X
0
%
100
%
kV
80
60
40
20
100
Tri Cor
5
4
3
2
1
120
80
40
20
10
10
20
30
40
50
60
70
80
90
Ø
12
10
11
9
8
m /h
2.0
3.0
0.5
0.3
0.1
1.5
3
5.5
4.5
3.5
2.5
Tri
µA
P_01756
2
19
24
29
30
OPERATING MANUAL
VERSION 09/2017 ORDER NUMBER DOC2354913

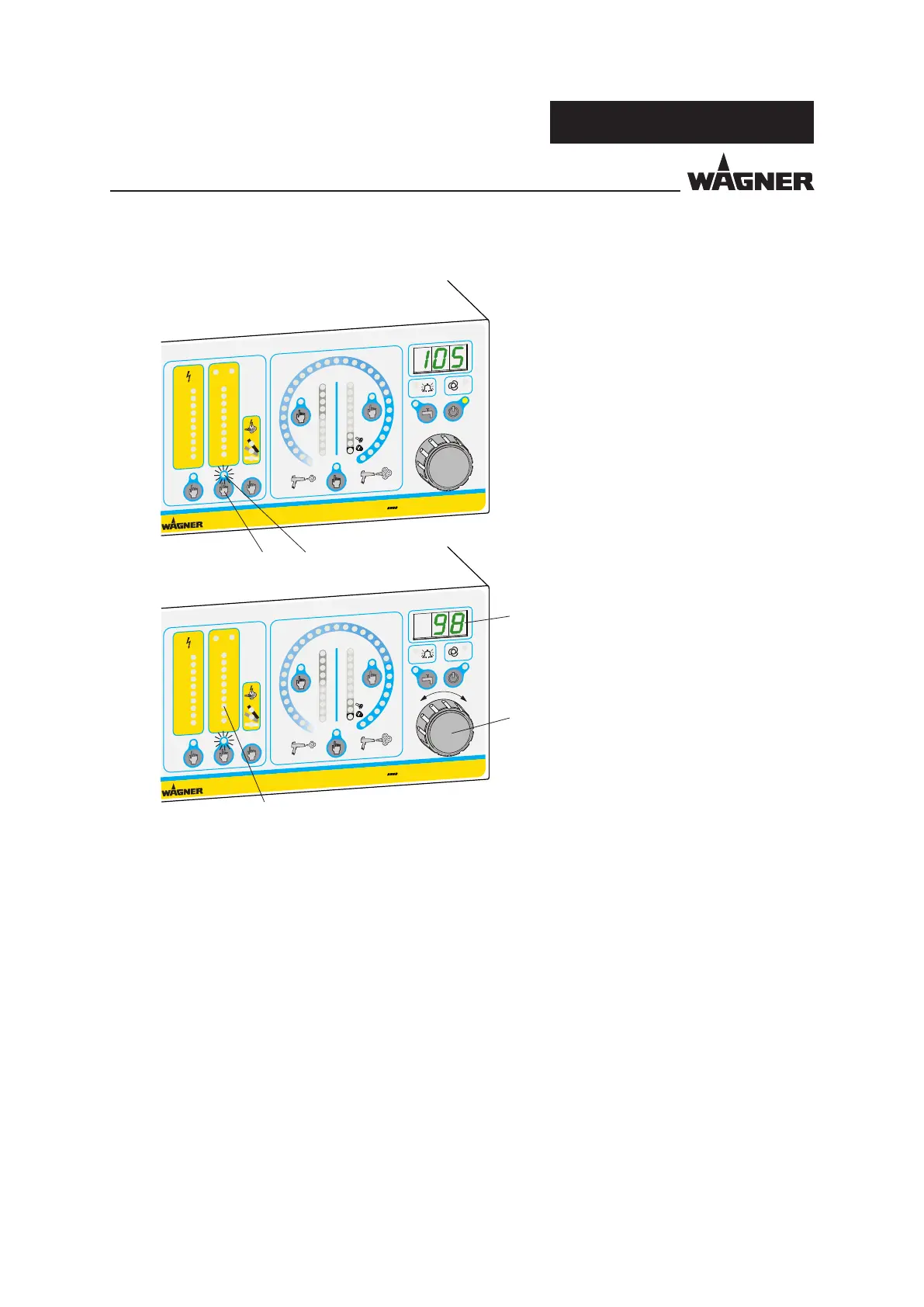

7.7.6 SETTING THE CURRENT LIMITATION
Above the "Current limitation" button 29 is the "Current limitation" bar graph display 2.
When the control unit is in the ready position, this display shows the set point as a dot and,
when high voltage is switched on, it shows the actual value as a bar.
The current limitation is an adjustable threshold. If this threshold is exceeded, the high
voltage is adjusted downwards until the threshold is no longer exceeded.
Procedure:
1. Press the "Current limitation"
button 29 to adjust the limitation
of the spray current. The yellow LED
30 indicates that current limitation
is selected.
2. The current limitation can now be
adjusted using the universal rotary
controller 24 between 5-120 µA
with a resolution of 1 µA. The value
is shown in the LED display 19.
