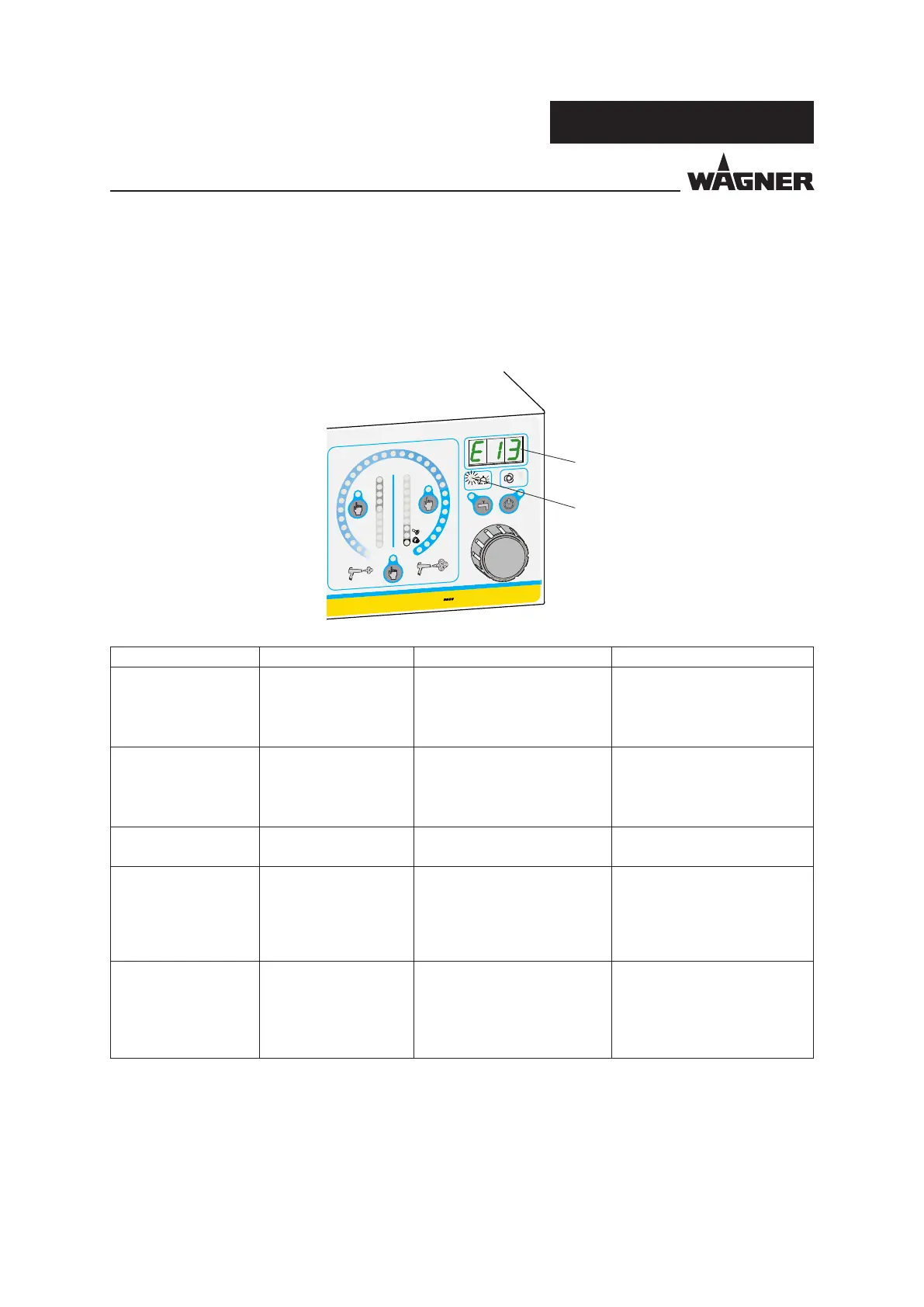

11.2 FAU LTS
Faults are indicated by fault LED 13 lighting up. In addition, the error number "Exx" (xx
stands for the fault number) is shown in the LED display 19 (7-segment LED). If a fault
occurs, high voltage, air, etc. is immediately switched o. Work can be continued only after
removing the fault and pressing any button.
Fault number Malfunction Cause Remedy
E11 Ground monitoring of
the spray gun handle
is missing
– Grounding cable in the
gun cable is interrupted
– Check/replace gun cable
– Check/replace gun
– Gun is not connected – Connect gun
E12 No coil current/
cascade interrupt
– Gun is not connected – Connect gun
– Gun cable is interrupted – Check/replace gun cable
– Cascade in gun is
interrupted --> defective
– Check/replace gun
E13 Coil current too big – Cascade of the connected
gun is defective
– Check/replace gun
E14 Tribo current too high – The Tribo current has
exceeded the upper limit
value of 12µA
ATEX guidelines do not
permit higher values.
– Reduce Tribo air
– Reduce powder quantity
E15-E17 High-voltage
generator error
– Hardware defect – If problem persists, contact
the WAGNER Service
Department
– Switch o unit and after 10
seconds, switch on again
