5.3 Installation example

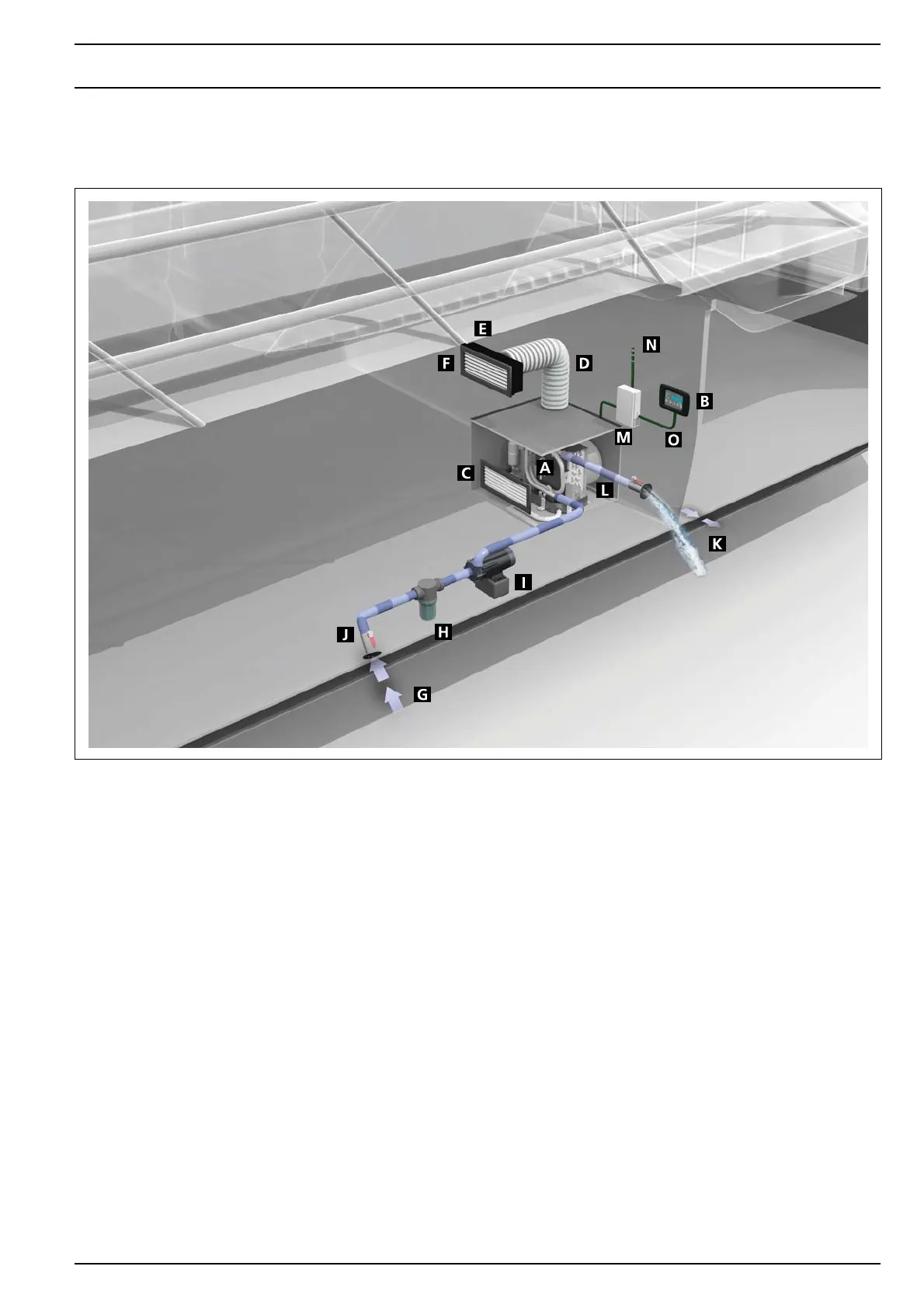

The illustration below shows an example of a typical installation of a BlueCool S air-conditioning system.
Fig. 6 Installation example
A) BlueCool S air-conditioning unit
B) Digital display
C) Return air grille
D) Flexible air duct
E) Transition box
F) Supply air grille
G) Sea water inlet
H) Sea water strainer
I) Sea water pump
J) Sea valve
K) Sea water outlet
L) Sea water hose
M) Electrical box
N) Power supply
O) Cable for digital display
