Main Components and Functions 33

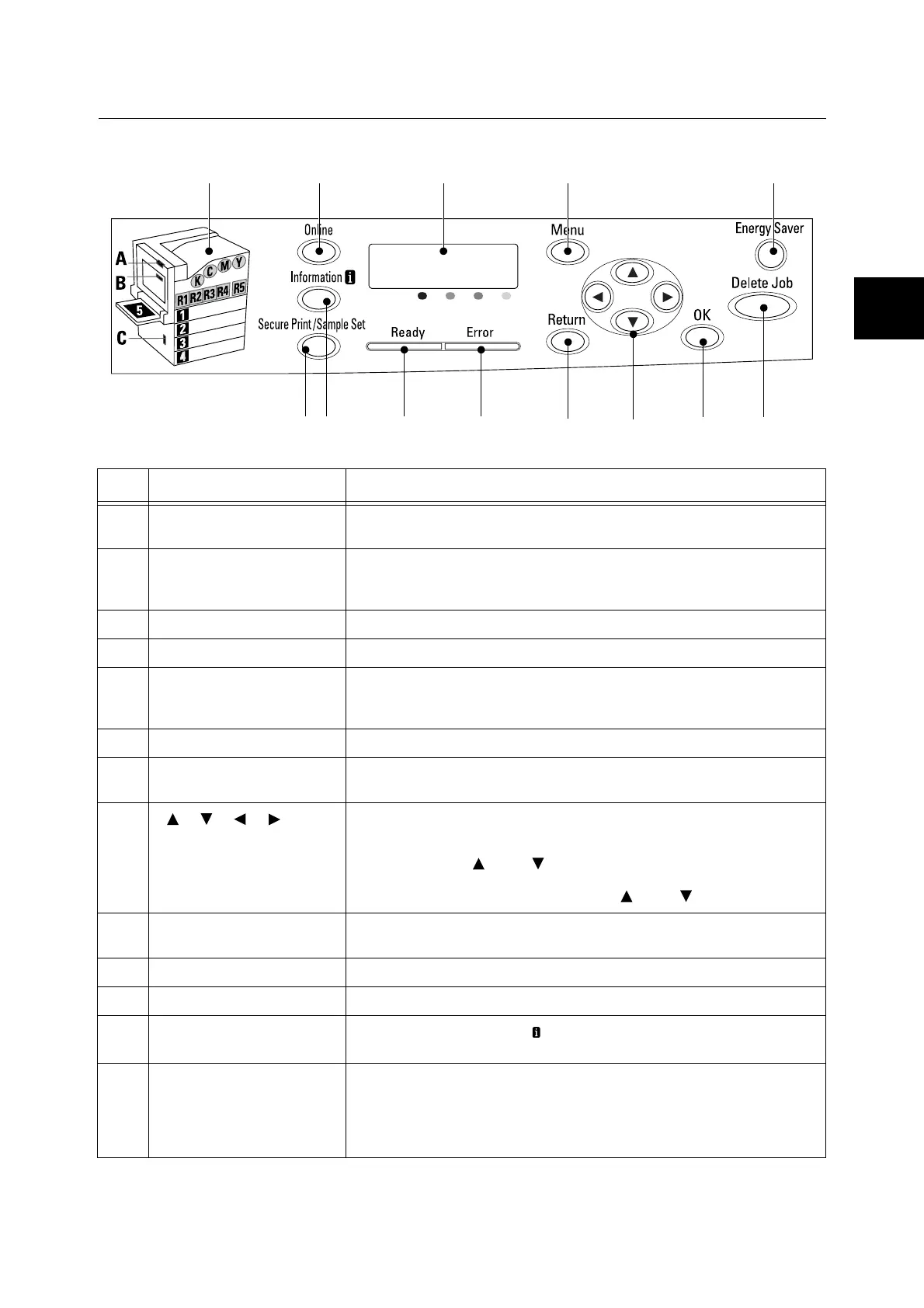

Control panel
No. Name Description
1 Indicators In the event of an error, use this to verify the location indicated in an error
message displayed on the display.
2 <Online> button Pressing the <Online> button takes the printer offline. The <Ready> lamp is off
and printing is not done while the printer is offline. Pressing the <Online> button
again takes the printer back online (printing enabled).
3 Display Displays the status of the printer, menu options, and messages.
4 <Menu> button Pressed to display the menu screen.
5 <Energy Saver> button/lamp Pressed to exit Energy Saver mode.
The lamp lights while the printer is in Energy Saver mode. The lamp flashes
while the hard disk (option) is being accessed.
6 <Delete Job> button Pressed to stop printing.
7 <OK> button Pressed to confirm the menu option selected on the menu screen. This button
is used also when printing reports/lists.
8
<> <> <> <> buttons
Pressed to advance to the next menu, item, or option.
Note
• When using the < > and < > buttons to change the current setting,
holding down either button cycles through available settings at high speed.
To display a setting’s default value, press < > and < > at the same time.
9 <Return> button Press this button while the menu screen is displayed to return to the previous
item.
10 <Error> lamp Blinks or lights when an error occurs.
11 <Ready> lamp Lights when the printer is ready to print.
12 <Information> button
Pressing this button while the mark is on the display will display detailed
information about some current event.
13 <Secure Print/Sample Set>
button
Press to perform Secure Print/Sample Set operation.
Note
• To use the Secure Print/Sample Set feature, the hard disk (optional) must be
installed.
1 2 3 4 5
13 12 11 10 9 8 7 6
To Next Page
