78 6 Replacing Consumables
2. Unplug the power cord from the power outlet
and the printer.
3. Wait 40 minutes for the machine to cool off.

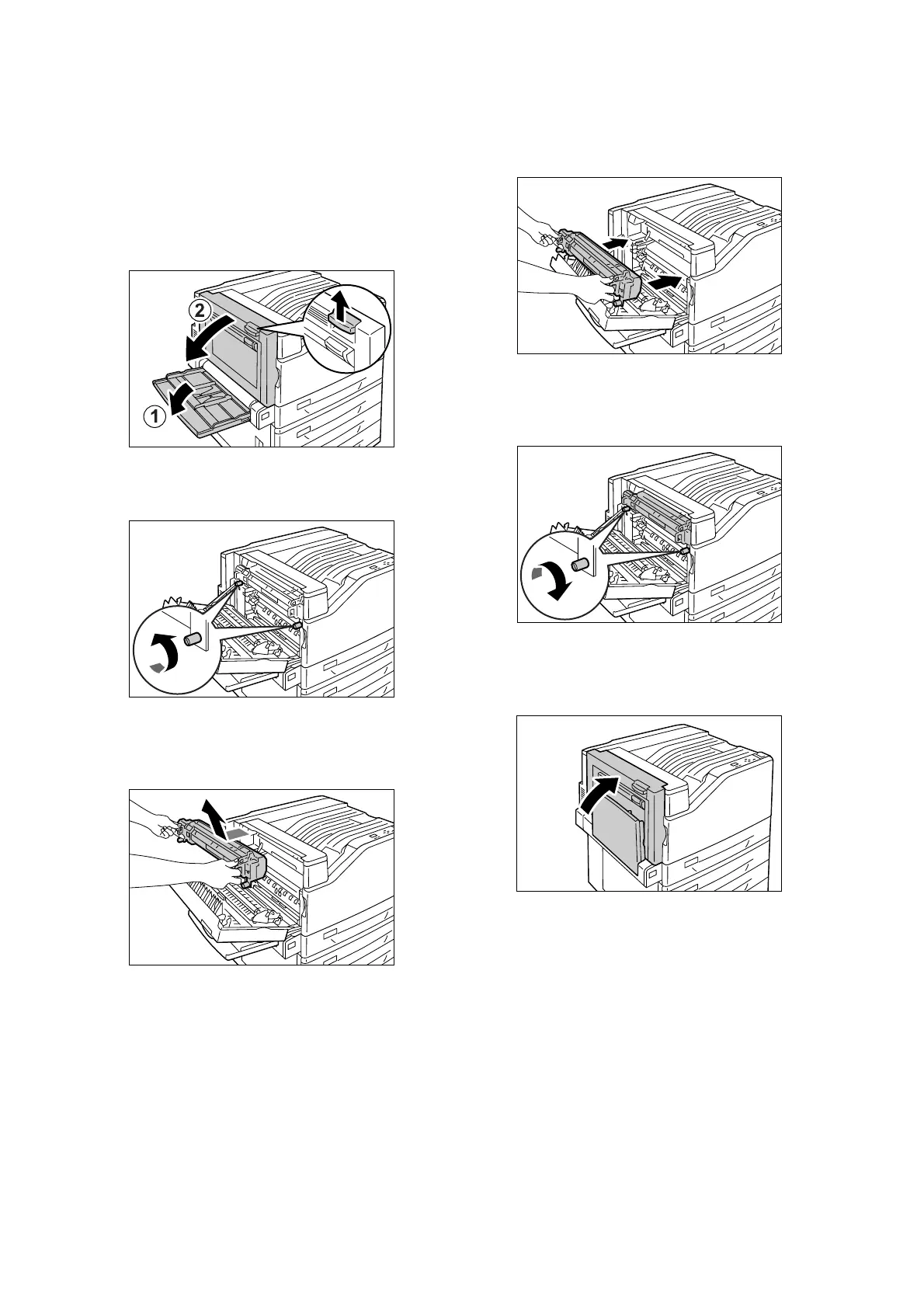

4. Lower the bypass tray.
While raising the release lever, carefully
open cover A.
5. Loosen the two knobs on the fuser unit.
6. Holding the fuser unit with both hands, pull it
out of the printer.
Important
• The fuser unit is heavy, so use both hands to remove it.
7. Remove the new fuser unit from its package.
Holding it with both hands, slide it into the
printer.
8. Tighten the two knobs to secure the fuser
unit in place.
9. Press the center of cover A and gently close
it. Next raise the bypass tray.
Important
• When closing the covers, be careful not to get your
fingers caught between the covers and the printer.
10. Connect the power cord to the printer.
Press the <|> side of the printer's power
switch to turn on the power.
11. Advance to “Resetting the Counter” (P. 79).
To Next Page
