4.2.7 Toner Cartridge

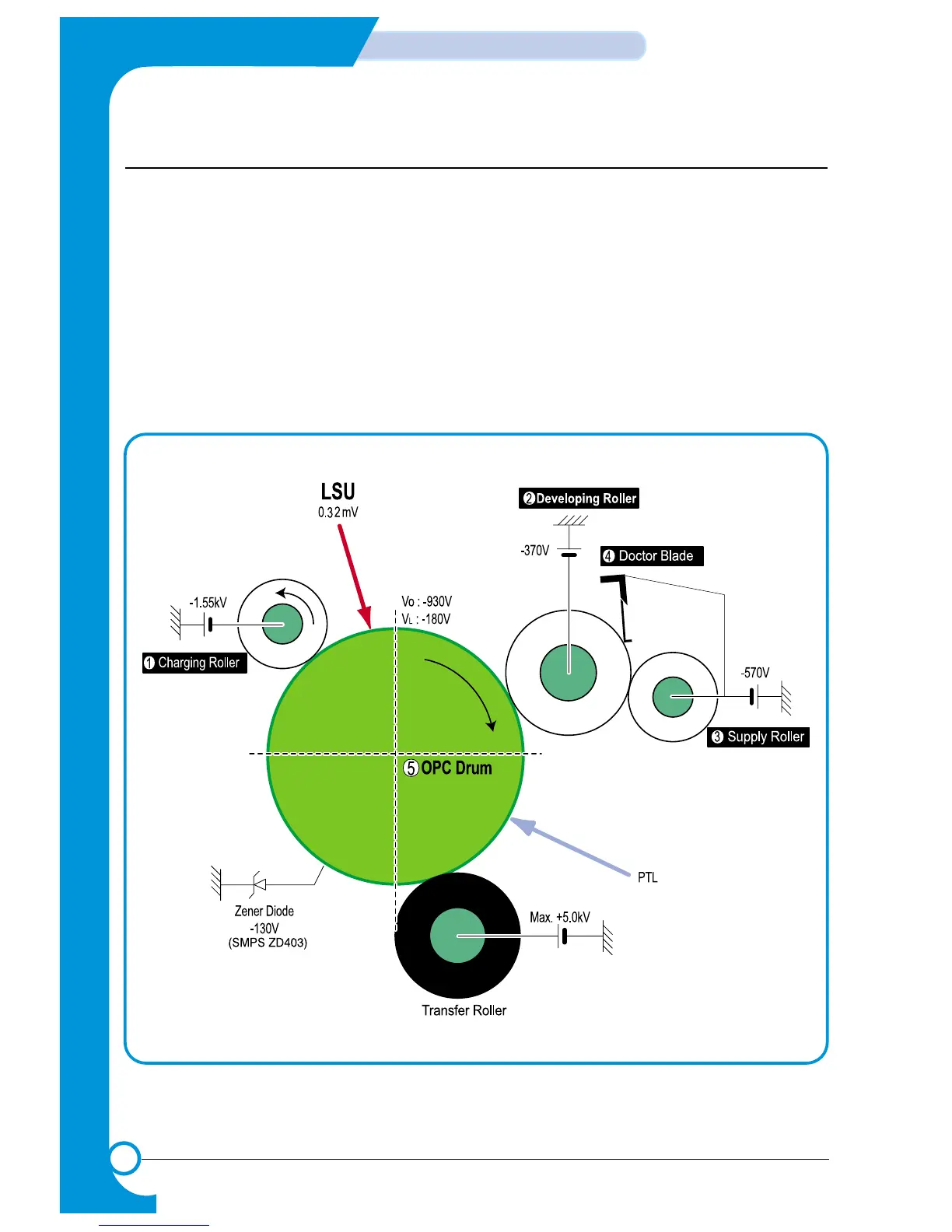

The xerographic process creates a visual image from the latent image. The Toner Cartridge contains the OPC
Drum, developer, and toner components in one unit. The OPC unit contains the OPC drum and charging roller.
The developer unit contains toner, toner cartridge, supply roller, developing roller, and blade (Doctor blade).
- Developing Method: Non magnetic 1 element contacting method
- Toner: Non magnetic 1 element shatter type toner
- The life span of toner: 3,000 sheets (IDC Pattern/A4 standard)
- Toner remaining amount detecting sensor: None
- OPC Cleaning: Collect the toner by using electric charge + FILM OPC
- Management of excess toner: Collect the toner by using electric charge (Cleanerless Type- No
excess toner)
- OPC Drum protecting Shutter: None
- Classifying device for toner cartridge: ID is classified by interruption of the frame channel.
