5-4
Disassembly and Reassembly
Service Manual
July 2003 WorkCentre PE16
5.4 Front Cover

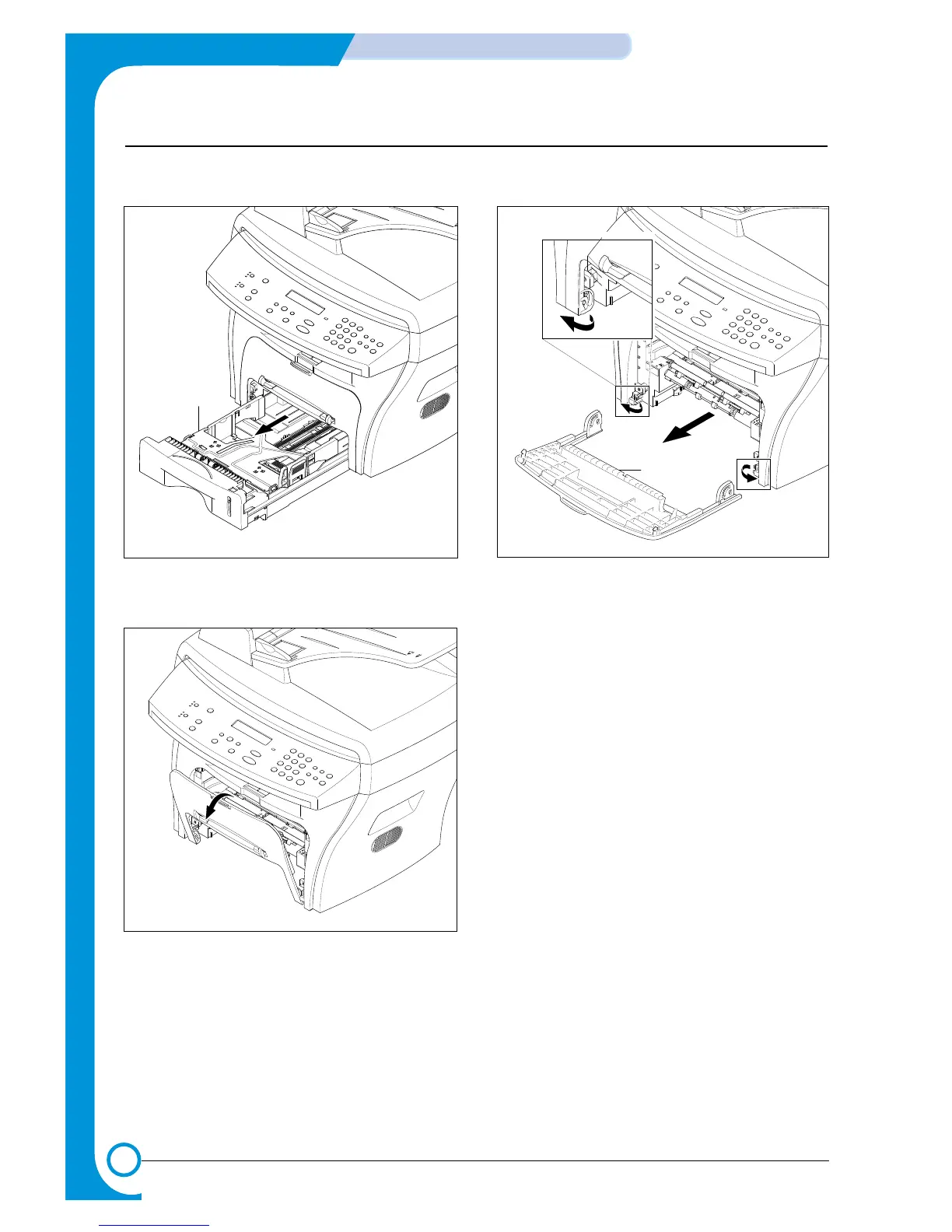

1. Take out the Cassette.
2. Open the Front Cover.
3. Unlatch the Front Cover securing the Frame Ass'y.
Then remove the Front Cover, as shown below.
Front Cover
