5-2
Disassembly and Reassembly
Service Manual
July 2003 WorkCentre PE16

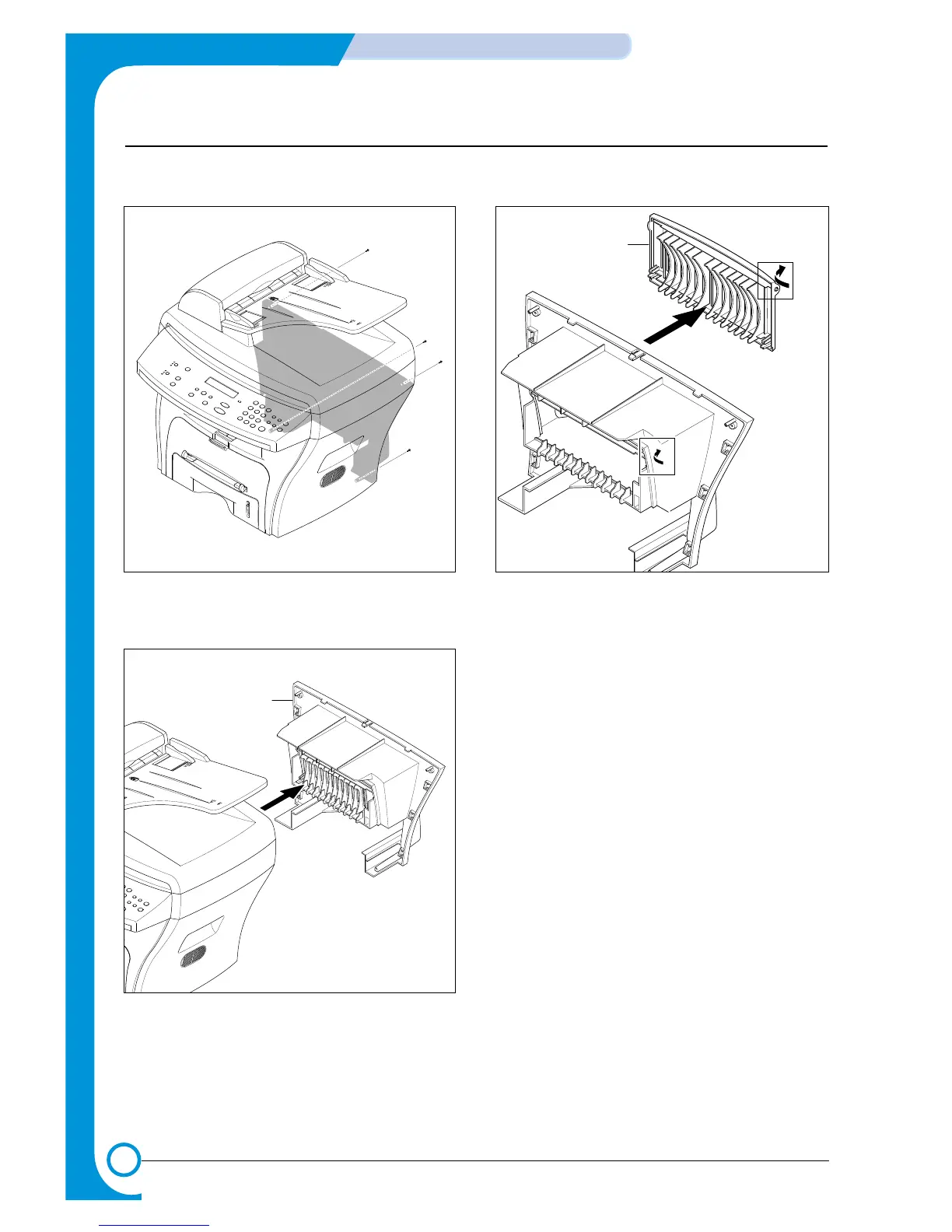

5.2 Rear Cover
1. Remove the four screws securing the Rear Cover.
2. Remove the Rear Cover from the Frame Ass'y and
Scanner Ass'y.
3. Unlatch the (Cover Face Up) securing the Rear cover,
as shown below.Then lift the (Cover Face Up) out.
Rear Cover
Cover Face Up
