5-10
Disassembly and Reassembly
Service Manual
July 2003 WorkCentre PE16
5.7 OPE Unit

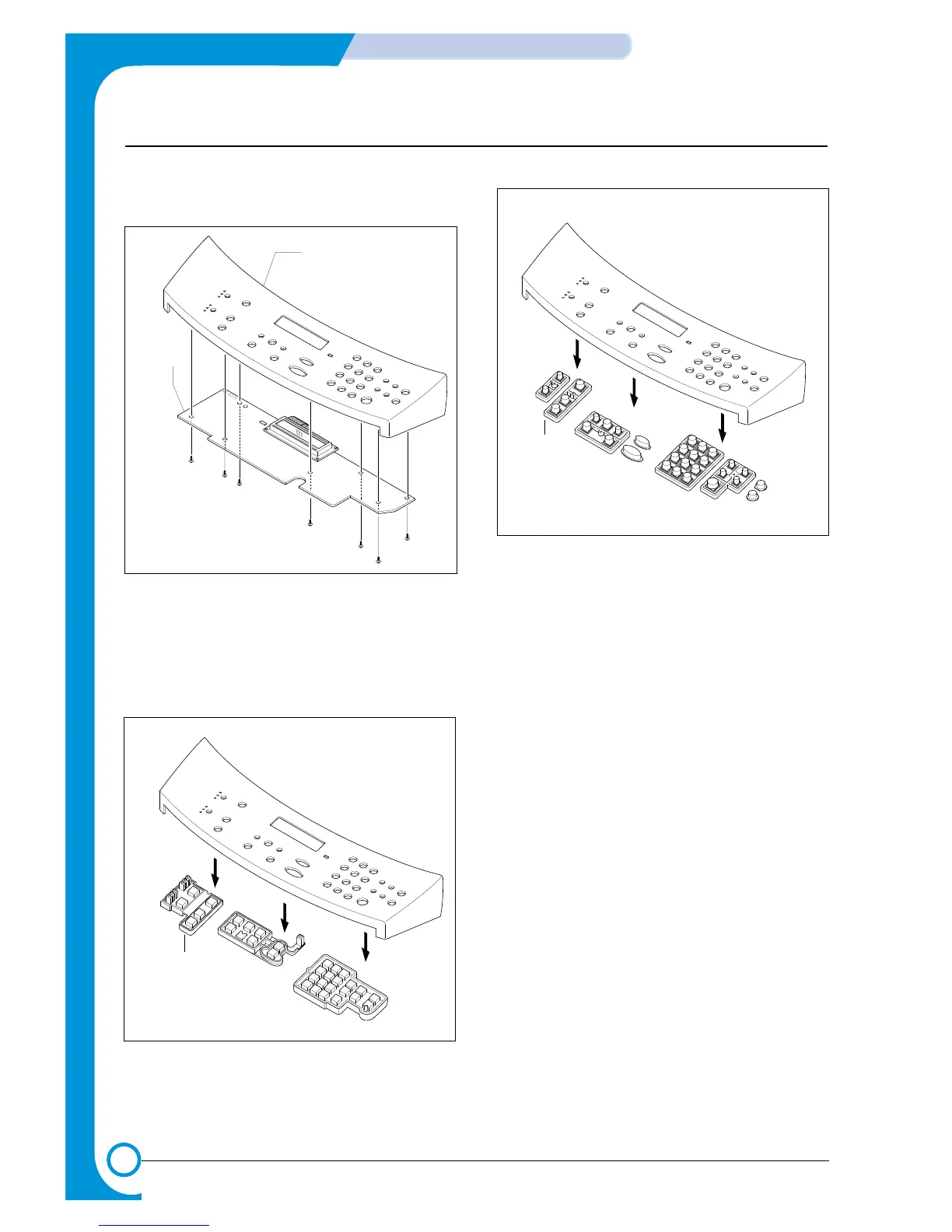

1. Remove the seven screws securing the OPE PBA
to the OPE Cover.
2. Remove the Contact Rubber from the OPE Cover.
3. Remove the Key Pad from the OPE Cover.
OPE Cover
OPE PBA
Contact Rubber
Key Pad
