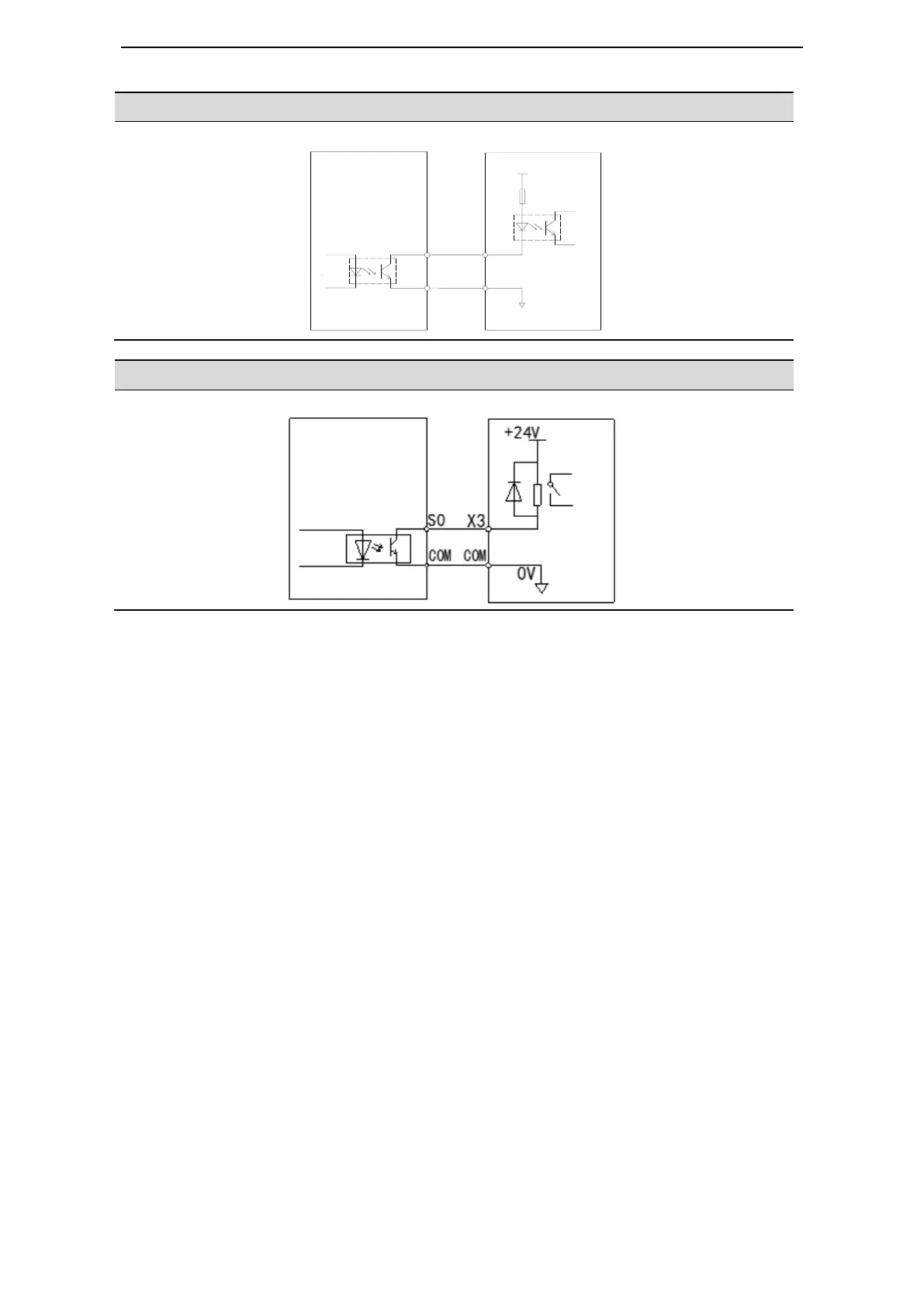

Note: SO output max allowable load current is 400mA. (please check the brake current if the SO
controls the brake motor, it needs to use auxiliary relay for current larger than 400mA)
3-2-2-4. Analog input circuit
DS3E/DS3L series servo drive cannot support analog input function.
3-2-2-5. Encoder feedback signal
DS3E series servo drive cannot support encoder feedback output function.
3-2-3. Standard wiring example
The input and output terminal function is out of factory settings in wiring example. The setting can be
changed, please see chapter 5-12.
3-2-3-1. Position mode
Refer to chapter 3-1-3 (DS3E series servo drive cannot support encoder feedback output).
3-2-4. Regenerative resistor
Refer to chapter 3-1-4.
