FT-90R OPERATING MANUAL
MIC Jack
This 6-pin modular jack accepts transmit audio, and provides 9600 bps data
for Packet Operation.
Pin 1: SW 2 (multi-function switching)
Pin 2: 9600 bps Packet Data Output
(Impedance:10 kΩ Maximum Output:500 mV pp)
Pin 3: +9V
Pin 4: GND
Pin 5: Microphone Input
Pin 6: SW 1 (multi-function switching)

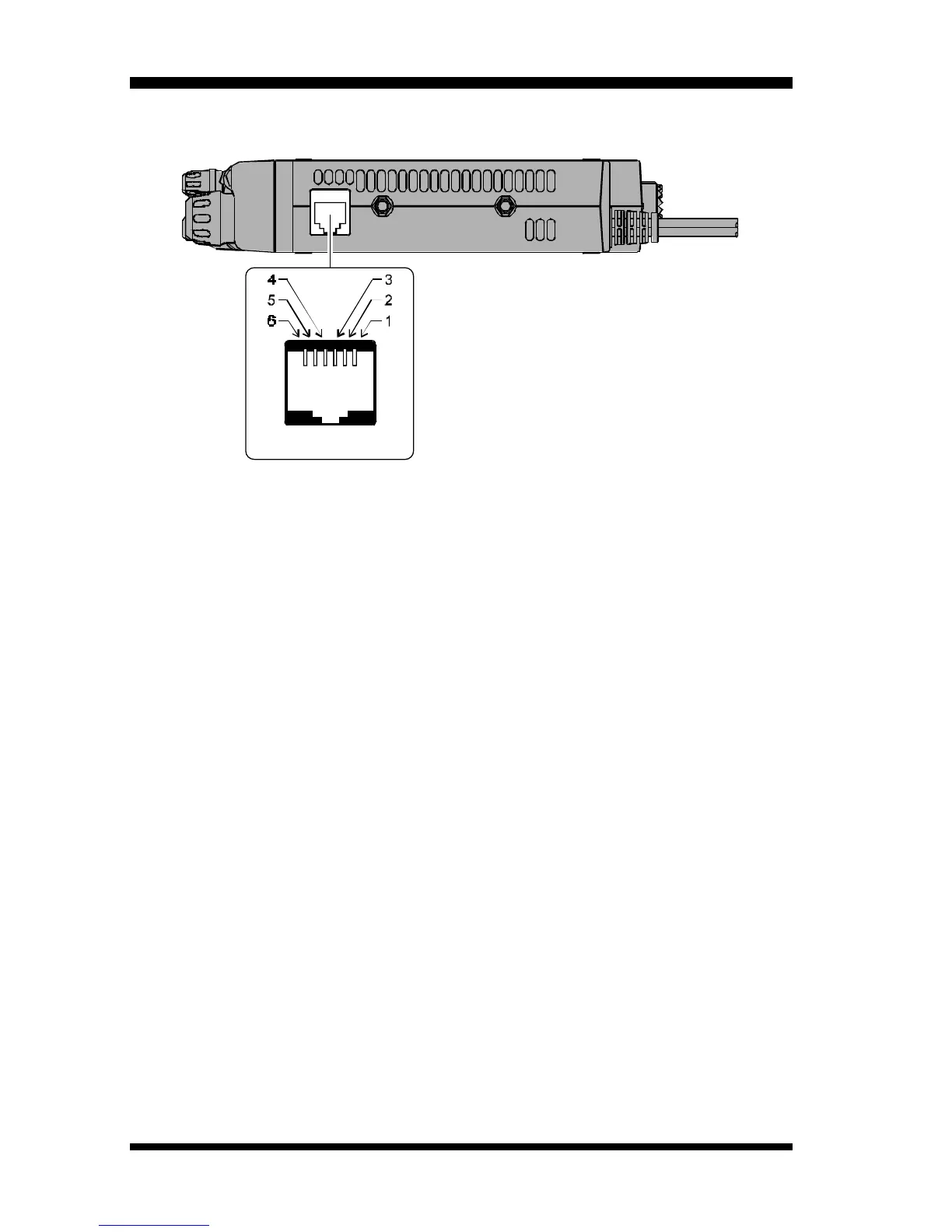

Right Side Connector
MIC Jack
