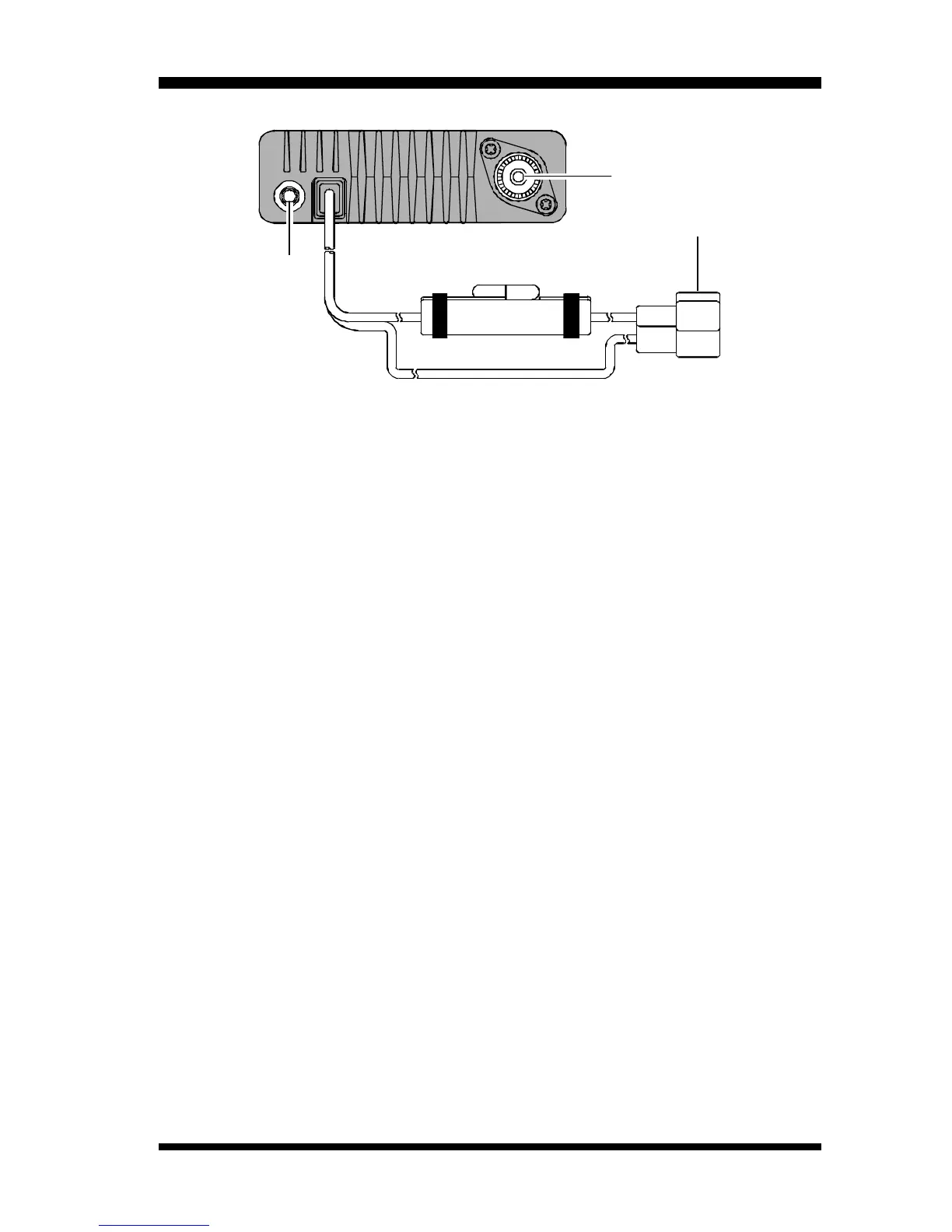

EXT SP Jack
This 2-conductor, 3.5-mm mini phone jack provides receiver audio output for
an optional external speaker. The audio impedance is 8Ω, and the level varies
according to the setting of the front panel’s VOL control. Inserting a plug into
this jack disables audio from the transceiver’s internal speaker. This jack may
also be used as a source of receiver audio during 1200 bps Packet operation.
‚
13.8 VDC Cable Pigtail w/Fuse
This is the DC power supply connection for the transceiver.
ƒ
ANTENNA Connector
Connect a dual-band antenna’s 50Ω cable to this M-type (SO-239) coaxial
connector (European versions are equipped with a Type-N connector). Be
certain to use the proper type of plug for connection of the coaxial cable.
•
ƒ
‚
