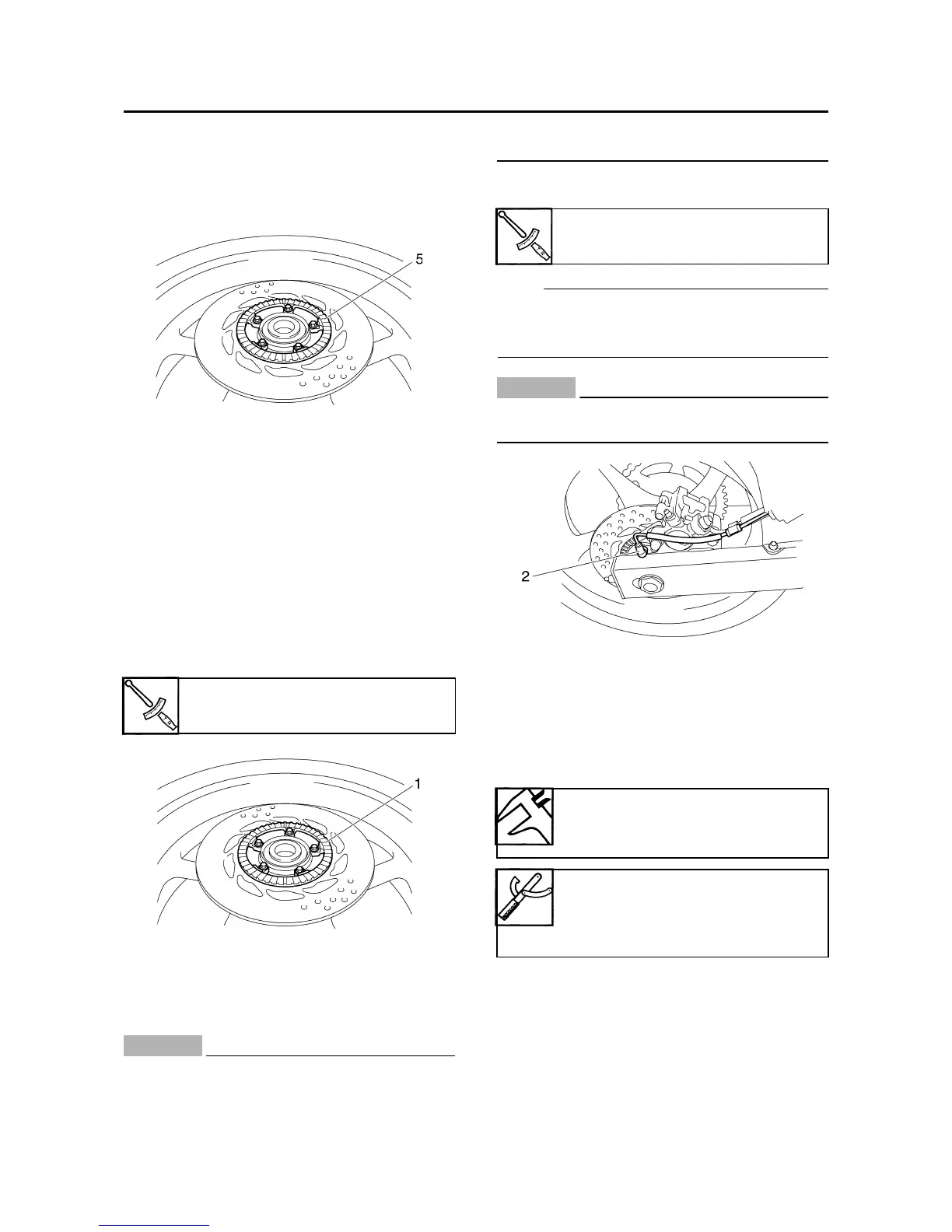

REAR WHEEL
4-21
• Rear wheel
Refer to "REMOVING THE REAR WHEEL"
on page 4-19.
5. Remove:
• Sensor rotor “5”
Checking the rear wheel sensor and sensor
rotor
1. Check:
• Rear wheel sensor
Cracks/bends/distortion → Replace.
Iron powder/dust → Clean.
2. Check:
• Rear wheel sensor rotor
Cracks/damage → Replace.
Installing the rear wheel sensor
1. Install:
• Sensor rotor “1”
2. Install:
• Rear wheel
Refer to "INSTALLING THE REAR
WHEEL" on page 4-22.
CAUTION:
ECA14470
Make sure there are no foreign materials in
the wheel hub. Foreign materials cause
damage to the inner sensor rotor and wheel
sensor.
3. Install:
• Rear wheel sensor “2”
NOTE:
When installing the rear wheel sensor, check
the rear wheel sensor lead for twists and the
sensor electrode for foreign materials.
CAUTION:
ECA14500
To route the rear wheel sensor lead, refer to
"CABLE ROUTING" on page 2-47.
4. Check:
• Check the clearance “a” between the rear
wheel sensor and sensor rotor.
Out of specification → Check the existence
of foreign matters in the wheel sensor
attaching section, remove if any, and per-
form the installation.
Sensor rotor bolt
6 Nm (0.6 m·kg, 4.3 ft·lb)
Rear wheel sensor bolt
7 Nm (0.7 m·kg, 5.1 ft·lb)
Rear wheel sensor and sensor
rotor clearance
0.9–1.5 mm (0.035–0.059 in)
Thickness gauge
90890-03079
Narrow gauge set
YM-34483
