SWINGARM
4-82
EAS23380

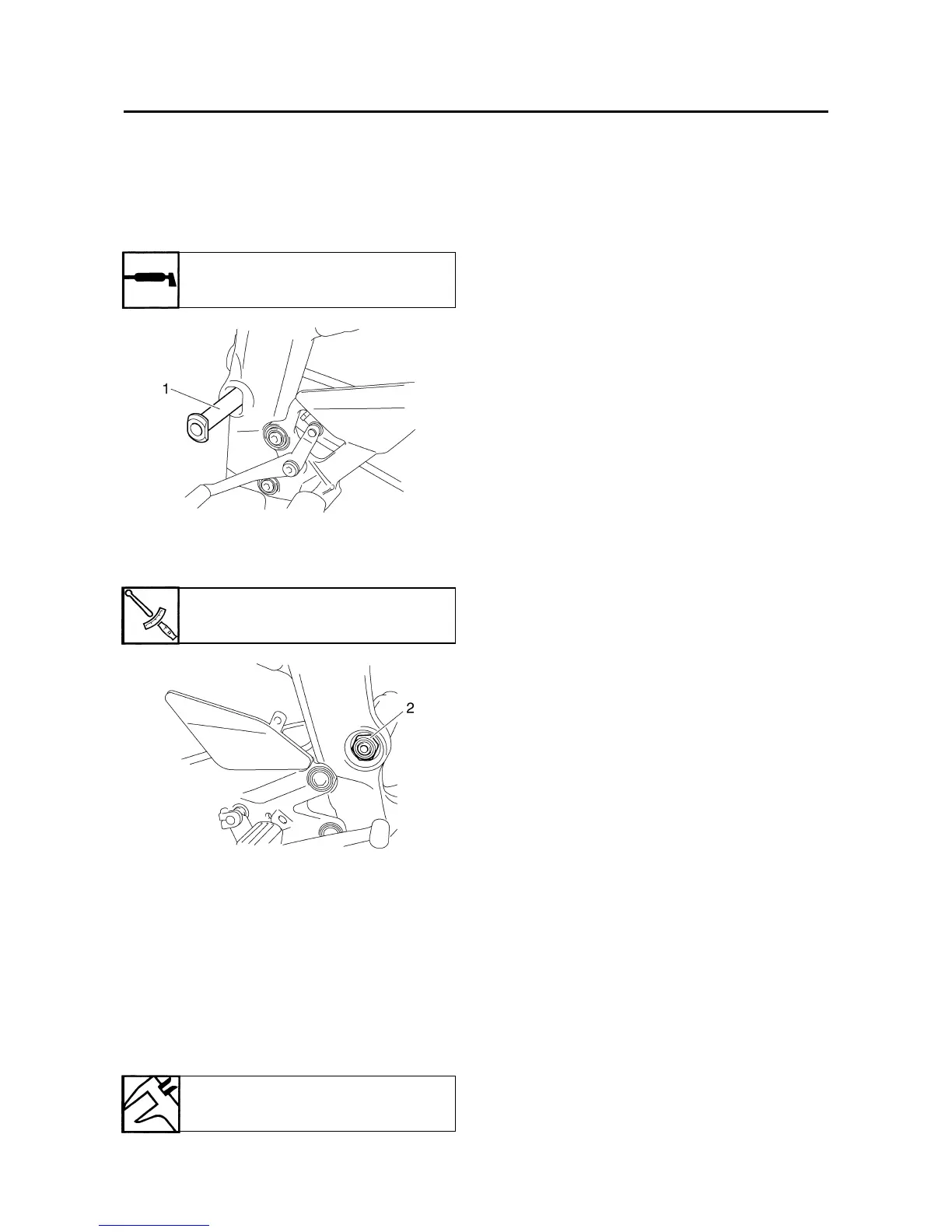

INSTALLING THE SWINGARM
1. Lubricate:
• Bearings
•Spacers
•Dust covers
• Pivot shaft “1”
2. Install:
• Swingarm
• Pivot shaft nut “2”
3. Install:
• Rear shock absorber assembly
Refer to "INSTALLING THE REAR SHOCK
ABSORBER ASSEMBLY" on page 4-78.
• Rear wheel
Refer to "INSTALLING THE REAR
WHEEL" on page 4-22.
4. Adjust:
• Drive chain slack
Refer to "ADJUSTING THE DRIVE CHAIN
SLACK" on page 3-28.
Recommended lubricant
Lithium-soap-based grease
Pivot shaft nut
120 Nm (12.0 m·kg, 87 ft·lb)
Drive chain slack
45.0–55.0 mm (1.77–2.17 in)
