FUEL TANK
7-3
EAS4S81001
INSTALLING THE FUEL TANK
1. Install:
• Fuel hose
CAUTION:
ECA4S81001
When installing the fuel hose, make sure
that it is securely connected, and that the
fuel hose holders are in the correct posi-
tion, otherwise the fuel hose will not be
properly installed.
NOTE:
Install the fuel hose connector securely onto
the fuel tank until a distinct “click” is heard, and
then make sure that it does not come loose.

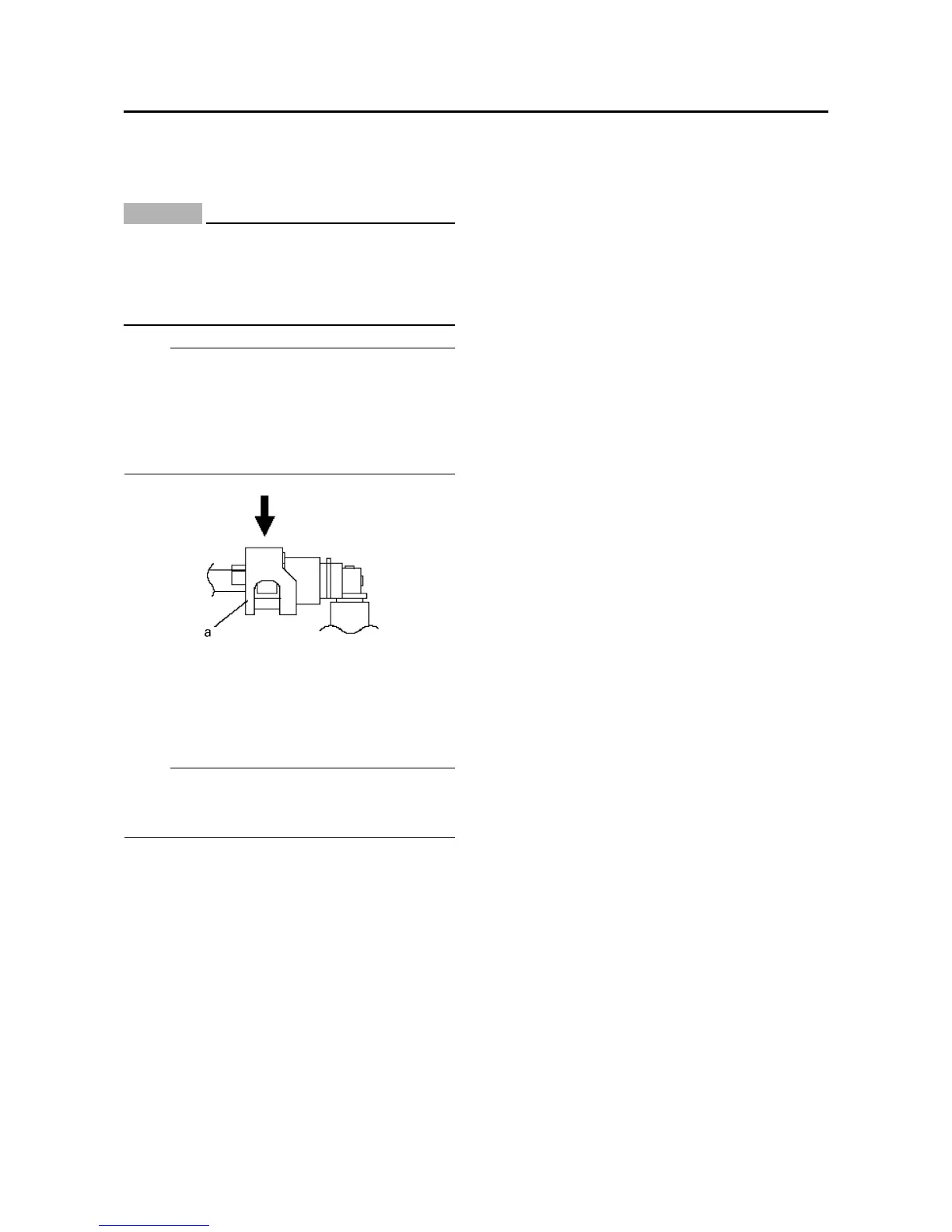

To install the fuel hose from the fuel injection
hose, slide the cover “a” on the end of the hose
in the direction of arrow shown.
2. Install:
• Fuel sender coupler
• Fuel pump coupler
• Fuel tank breather hose
• Fuel tank drain hose
NOTE:
There is a white paint mark on the fuel tank
breather hose.
Refer to "CABLE ROUTING" on page 2-47.
