REAR WHEEL
4-22

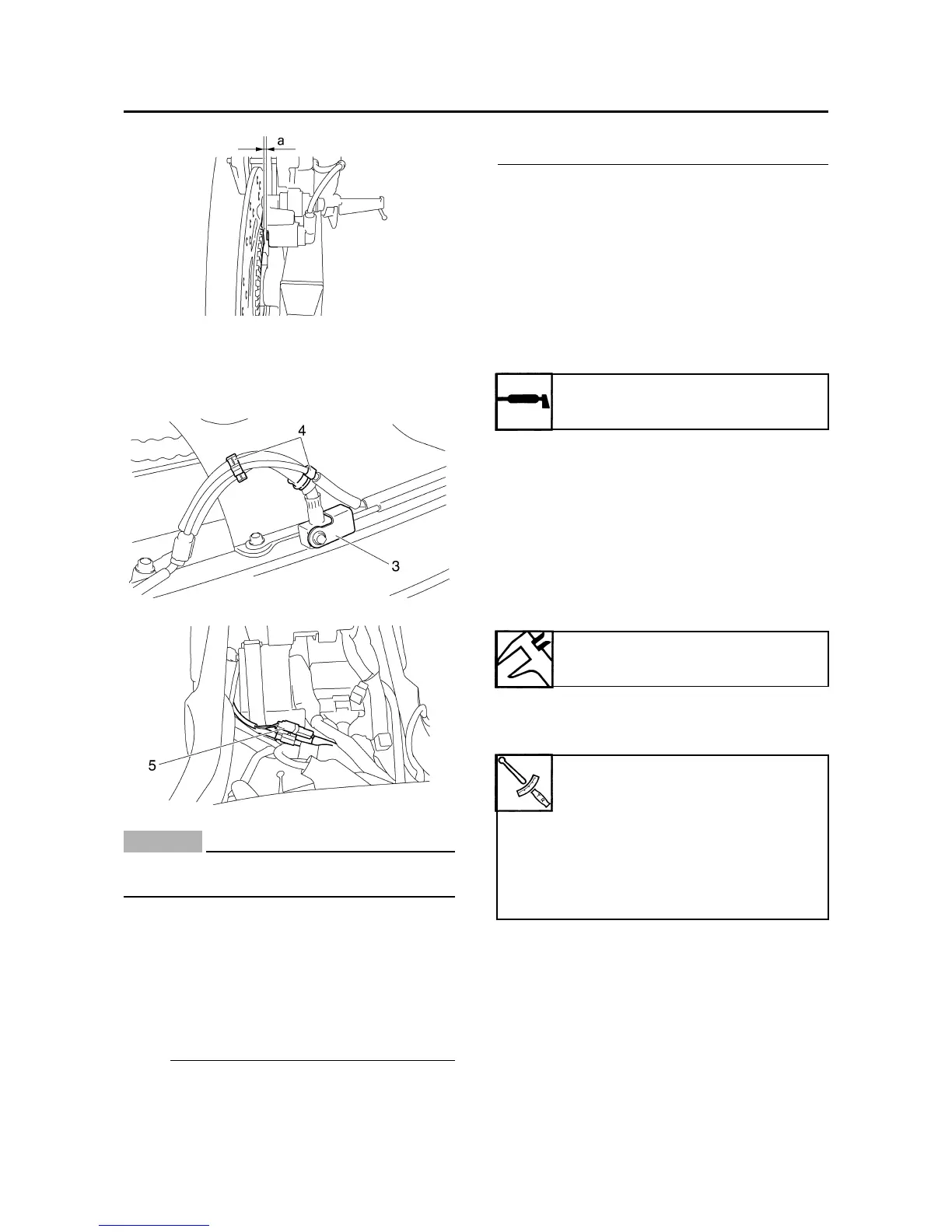

5. Connect:
• Rear wheel sensor lead holder “3”
•Clamp “4”
• Rear wheel sensor coupler “5”
CAUTION:
ECA14500
To route the rear wheel sensor lead, refer to
"CABLE ROUTING" on page 2-47.
6. Check:
• Rear wheel sensor installation
Check if the wheel sensor housing is
installed properly.
EAS22150
ADJUSTING THE REAR WHEEL STATIC
BALANCE
NOTE:
• After replacing the tire, wheel or both, the
rear wheel static balance should be adjusted.
• Adjust the rear wheel static balance with the
brake disc and rear wheel drive hub installed.
1. Adjust:
• Rear wheel static balance
Refer to "ADJUSTING THE FRONT
WHEEL STATIC BALANCE" on page 4-13.
EAS22160
INSTALLING THE REAR WHEEL
1. Lubricate:
• Wheel axle
• Wheel bearings
• Oil seal lips
2. Install:
•Collars
• Rear brake caliper bracket
• Rear wheel
•Washer
• Rear wheel axle
3. Adjust:
• Drive chain slack
Refer to "ADJUSTING THE DRIVE CHAIN
SLACK" on page 3-28.
4. Tighten:
• Wheel axle nut
• Rear brake caliper bolts
Recommended lubricant
Lithium-soap-based grease
Drive chain slack
45.0–55.0 mm (1.77–2.17 in)
Wheel axle nut
120 Nm (12 m·kg, 87 ft·lb)
Rear brake caliper bolt (front
side)
27 Nm (2.7 m·kg, 20 ft·lb)
Rear brake caliper bolt (rear
side)
22 Nm (2.2 m·kg, 16 ft·lb)
