OIL COOLER
6-4
EAS26410
OIL COOLER

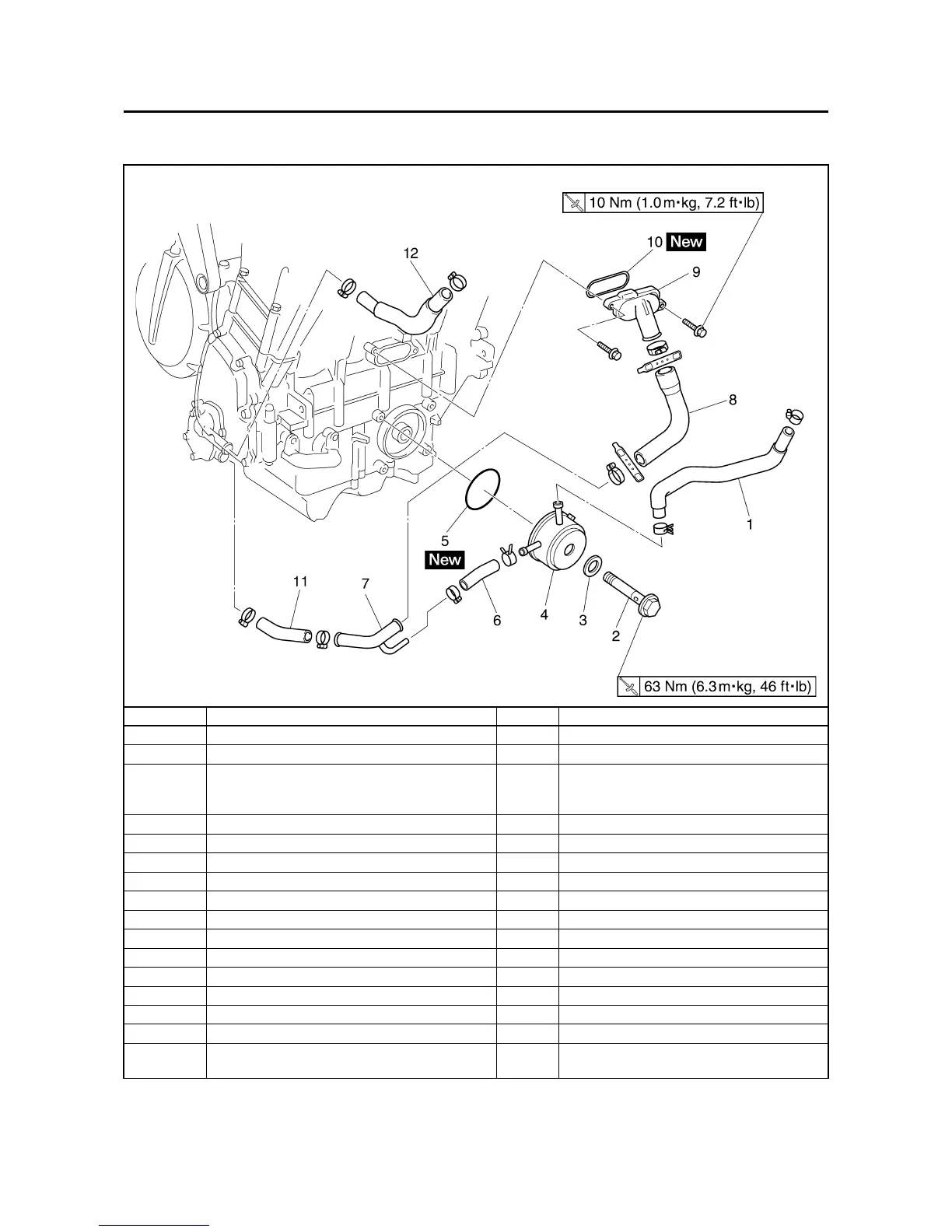

Removing the oil cooler
Order Job/Parts to remove Q’ty Remarks
Radiator assembly Refer to "RADIATOR" on page 6-1.
Coolant reservoir Refer to "RADIATOR" on page 6-1.
Engine oil
Drain.
Refer to "CHANGING THE ENGINE OIL" on
page 3-14.
1 Oil cooler outlet hose 1
2 Union bolt 1
3 Washer 1
4 Oil cooler 1
5O-ring 1
6 Oil cooler inlet hose 1
7 Oil cooler inlet pipe 1
8 Water jacket joint hose 1
9 Water jacket joint 1
10 O-ring 1
11 Water pump outlet hose 1
12 Radiator outlet hose 1
For installation, reverse the removal proce-
dure.
To Next Page
