CHAIN DRIVE
4-85
▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲

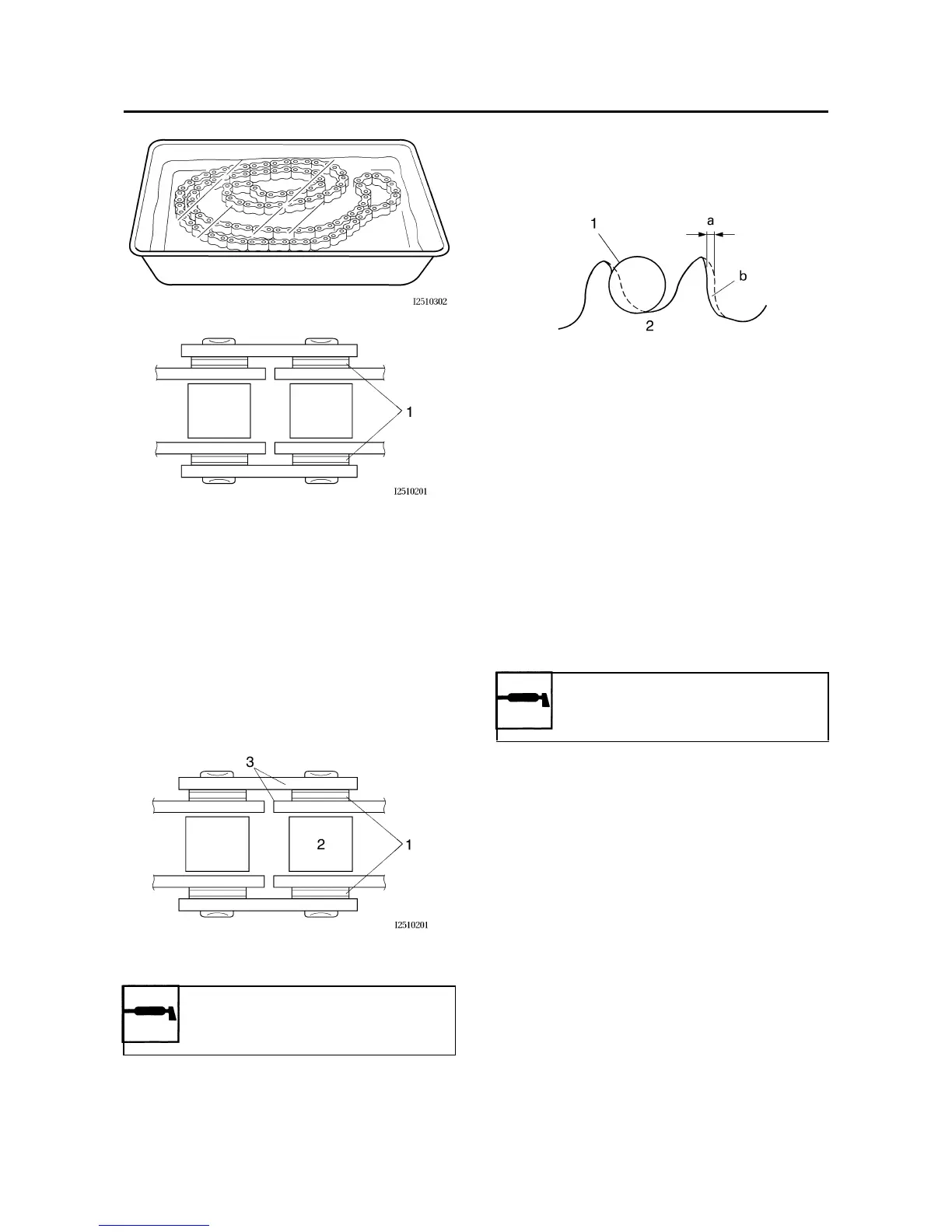

4. Check:
• O-rings “1”
Damage → Replace the drive chain.
• Drive chain rollers “2”
Damage/wear → Replace the drive chain.
• Drive chain side plates “3”
Damage/wear → Replace the drive chain.
Cracks → Replace the drive chain and
make sure the battery breather hose is
properly routed away from the drive chain
and below the swingarm.
5. Lubricate:
• Drive chain
EAS23460
CHECKING THE DRIVE SPROCKET
1. Check:
• Drive sprocket
More than 1/4 tooth “a” wear → Replace
the drive chain sprockets as a set.
Bent teeth → Replace the drive chain
sprockets as a set.
EAS23470
CHECKING THE REAR WHEEL SPROCKET
Refer to "CHECKING AND REPLACING THE
REAR WHEEL SPROCKET" on page 4-20.
EAS23480
CHECKING THE REAR WHEEL DRIVE HUB
Refer to "CHECKING THE REAR WHEEL
DRIVE HUB" on page 4-19.
EAS28800
INSTALLING THE DRIVE CHAIN
1. Lubricate:
• Drive chain
2. Install:
• Drive chain
3. Install:
• Swingarm
Refer to "INSTALLING THE SWINGARM"
on page 4-82.
Recommended lubricant
Engine oil or chain lubricant
suitable for O-ring chains
b. Correct
1. Drive chain roller
2. Drive chain sprocket
Recommended lubricant
Engine oil or chain lubricant
suitable for O-ring chains
