4.The ABS warning light “1” flashes and a malfunction code “2” is indicated on the multi-function dis-
play when the test coupler adapter “3” is connected to the ABS test coupler “4” for troubleshooting
the ABS.
The ABS test coupler can be accessed by removing the left inner panel (front cowling). When the
test coupler adapter is connected to the ABS test coupler, the ABS warning light starts flashing
and the multi-function display indicates all the malfunction codes recorded in the ABS ECU.
NOTE:
The ABS warning light comes on or flashes if the vehicle is ridden with the test coupler adapter con-
nected to the ABS test coupler.

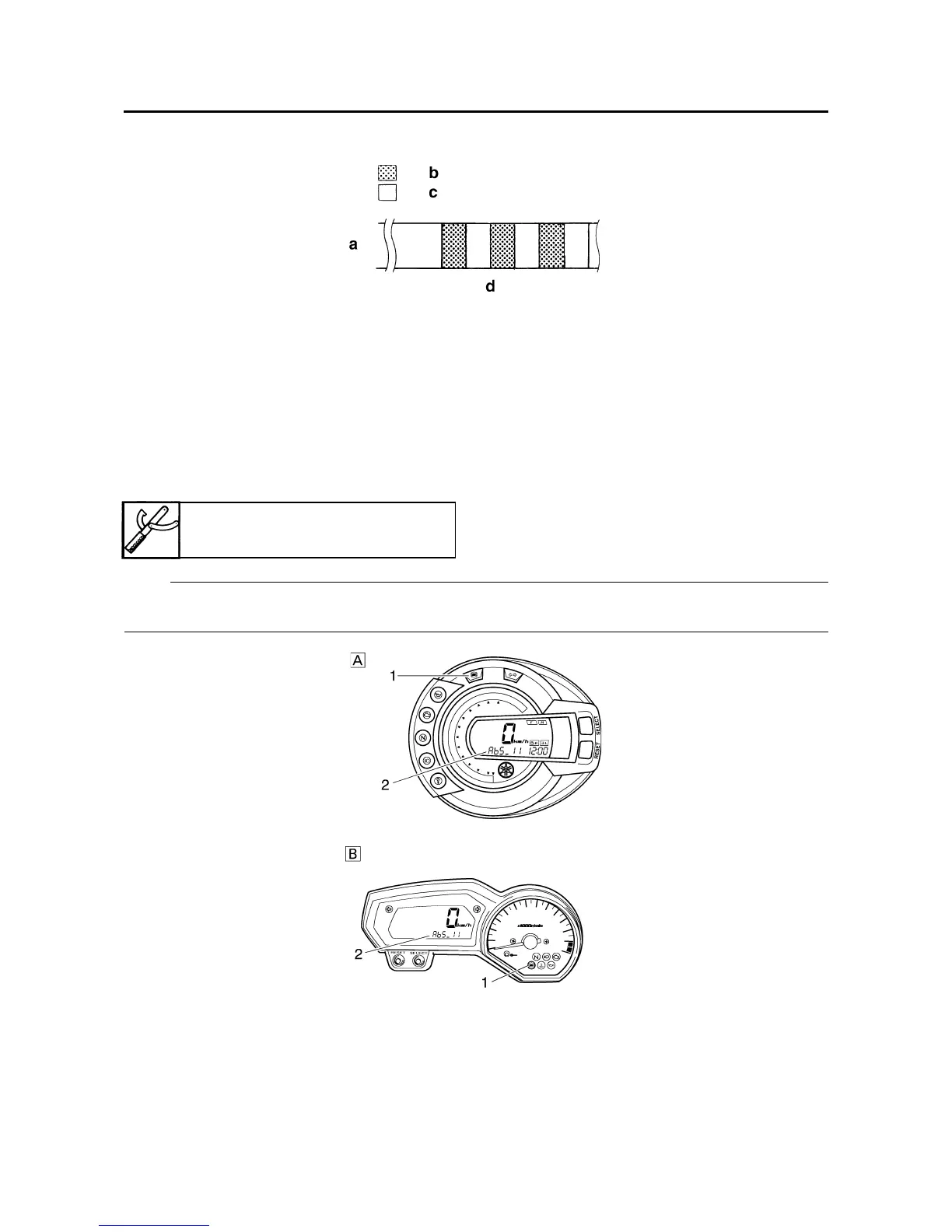

a. ABS warning light
b. Comes on
c. Goes off
d. Preparation
Test coupler adapter
90890-03149
A. FZ6-NA/FZ6-SA
B. FZ6-NAHG/FZ6-SAHG
