FUEL TANK
7-1
EAS26620
FUEL TANK

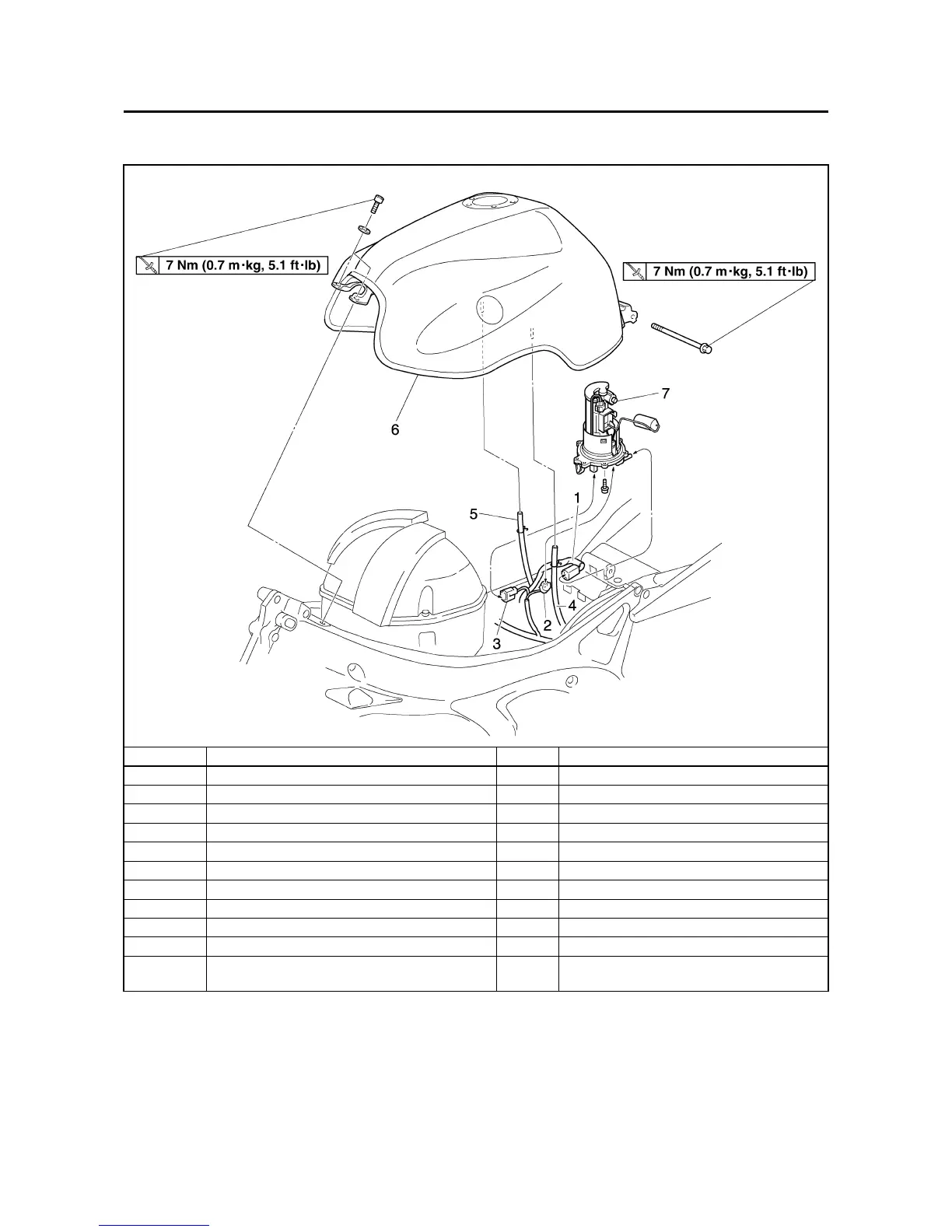

Removing the fuel tank
Order Job/Parts to remove Q’ty Remarks
Seat Refer to "GENERAL CHASSIS" on page 4-1.
Left front cowling inner panel (with cowling) Refer to "GENERAL CHASSIS" on page 4-1.
Right front cowling inner panel (with cowling) Refer to "GENERAL CHASSIS" on page 4-1.
1 Fuel hose 1
2 Fuel sender coupler 1 Disconnect.
3 Fuel pump coupler 1 Disconnect.
4 Fuel tank drain hose 1
5 Fuel tank breather hose 1
6Fuel tank 1
7Fuel pump 1
For installation, reverse the removal proce-
dure.
