THROTTLE BODIES
7-5

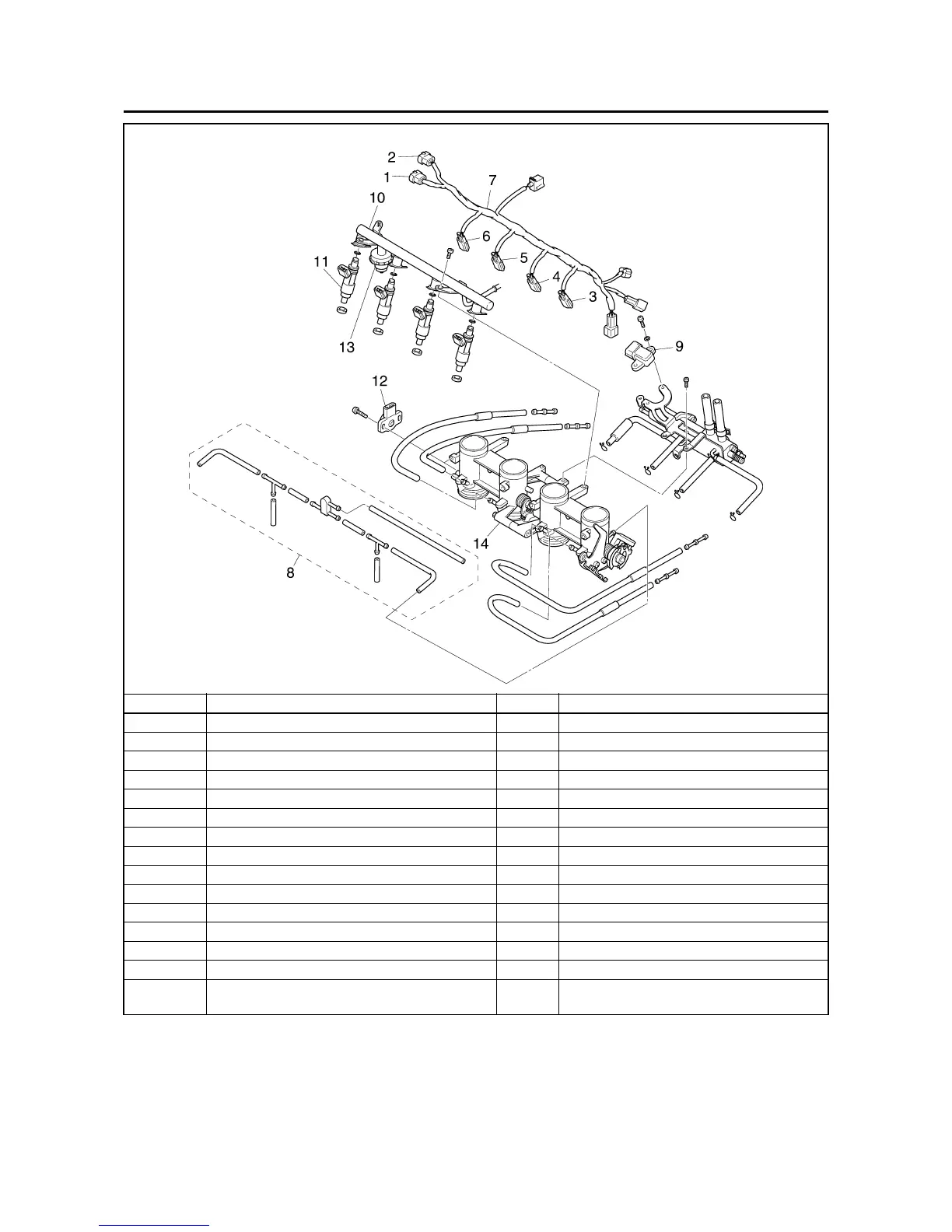

Removing the injectors
Order Job/Parts to remove Q’ty Remarks
1 Throttle position sensor coupler 1 Disconnect.
2 Intake air pressure sensor coupler 1 Disconnect.
3 Cylinder #1 injector coupler 1 Disconnect.
4 Cylinder #2 injector coupler 1 Disconnect.
5 Cylinder #3 injector coupler 1 Disconnect.
6 Cylinder #4 injector coupler 1 Disconnect.
7 Sub-wire harness 1
8 Negative pressure hose 1
9 Intake air pressure sensor 1
10 Fuel distributor 1
11 Injector 4
12 Throttle position sensor 1
13 Fuel pulsation damper 1
14 Throttle bodies 1
For installation, reverse the removal proce-
dure.
