THROTTLE BODIES
7-7
c. Measure the throttle position sensor volt-
age.

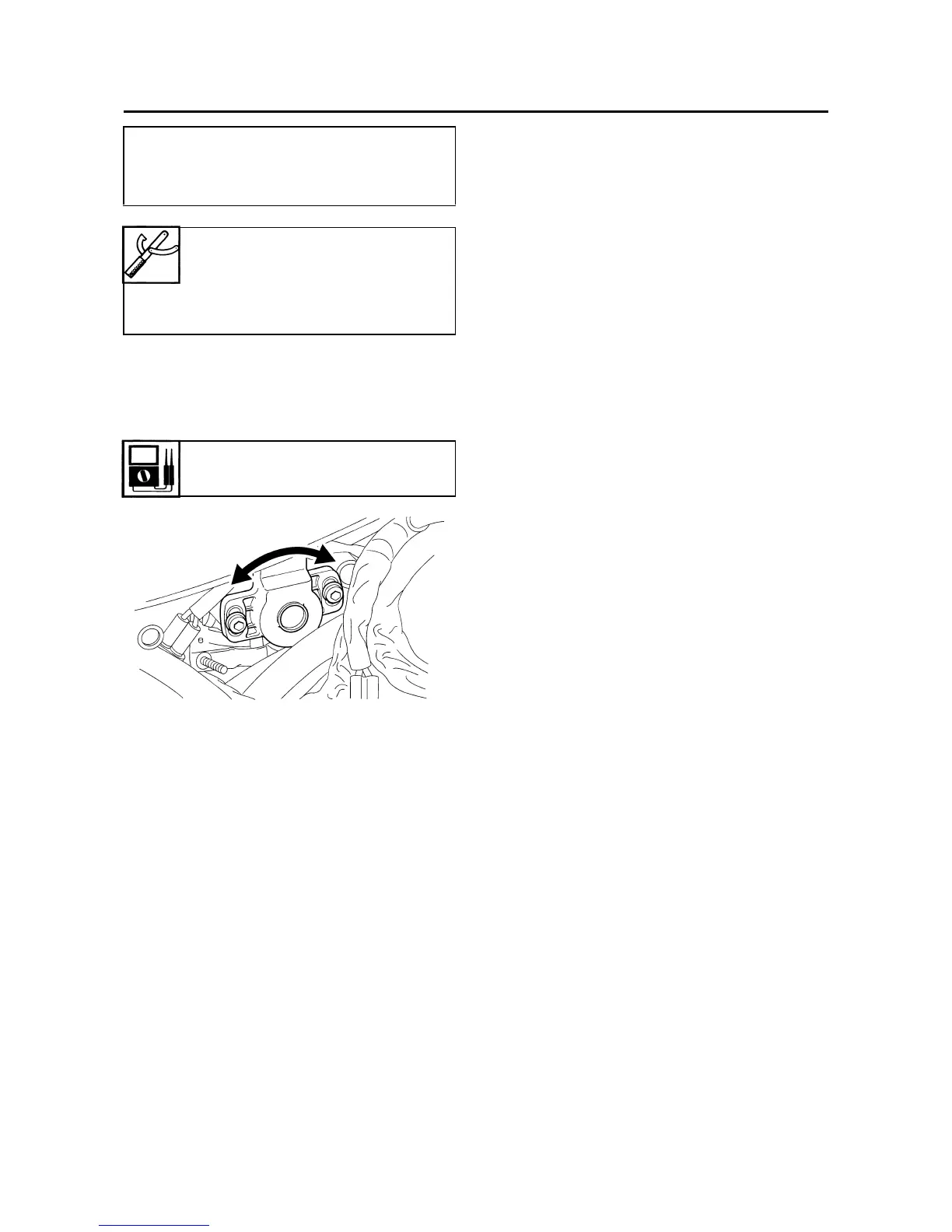

d. Adjust the throttle position sensor angle so
that the voltage is within the specified
range.
e. After adjusting the throttle position sensor
angle, tighten the throttle position sensor
screws.
▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲
• Positive tester probe
Ye ll ow “1 ”
• Negative tester probe
Black/Blue “2”
Digital circuit tester
90890-03174
Model 88 Multimeter with
tachometer
YU-A1927
Output voltage (at idle)
Adjusted by tachometer
To Next Page
