AIR INDUCTION SYSTEM
7-11

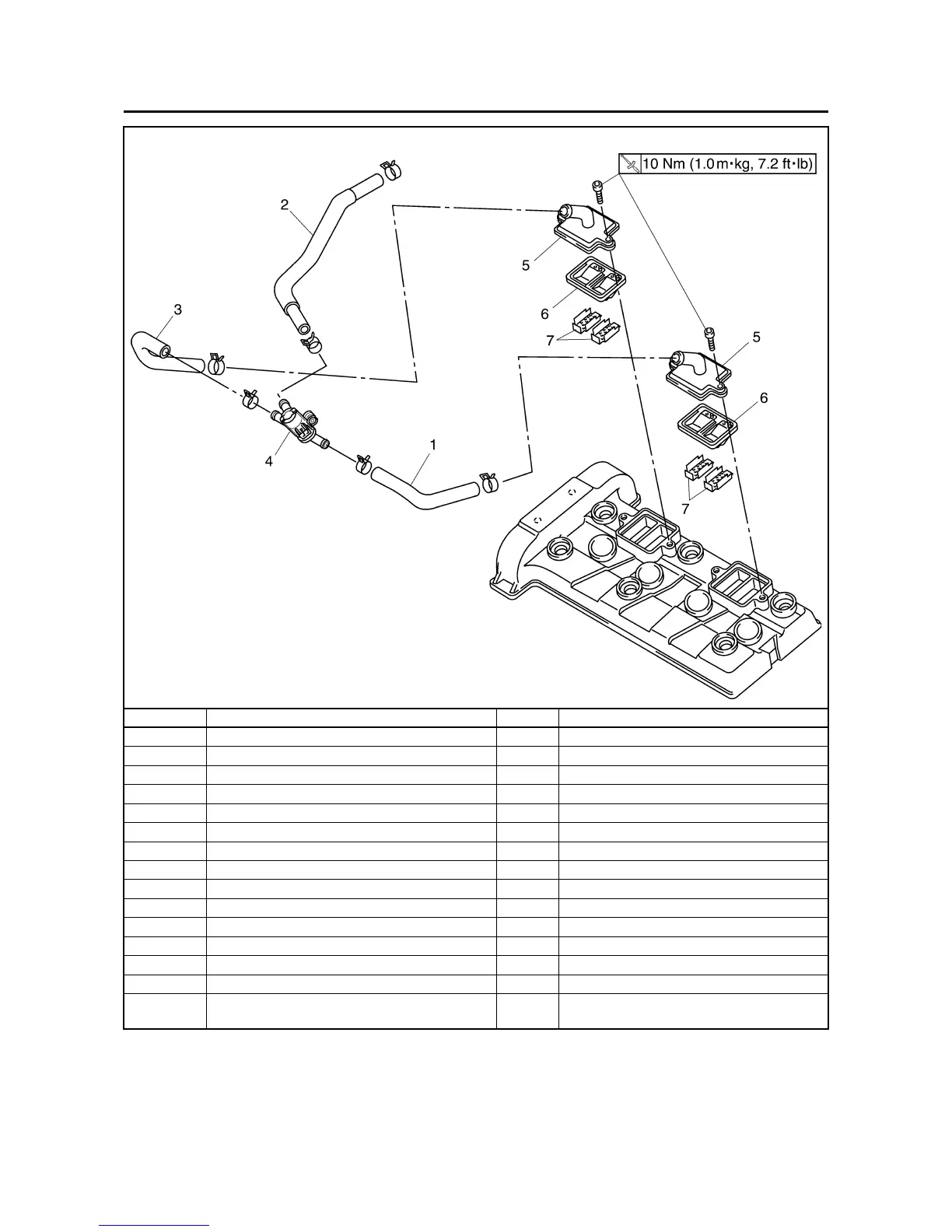

Removing the air cut-off valve assembly and hoses
Order Job/Parts to remove Q’ty Remarks
Seat Refer to "GENERAL CHASSIS" on page 4-1.
Left front cowling inner panel (with cowling) Refer to "GENERAL CHASSIS" on page 4-1.
Right front cowling inner panel (with cowling) Refer to "GENERAL CHASSIS" on page 4-1.
Fuel tank Refer to "FUEL TANK" on page 7-1.
Battery Refer to "GENERAL CHASSIS" on page 4-1.
Air filter case Refer to "GENERAL CHASSIS" on page 4-1.
Battery box and battery box bracket Refer to "GENERAL CHASSIS" on page 4-1.
1 Air cut-off valve hose 1 1 Disconnect.
2 Air cut-off valve hose 2 1 Disconnect.
3 Air cut-off valve hose 3 1 Disconnect.
4 Air cut-off valve 1
5 Reed valve cap 2
6 Reed valve assembly 2
7Plate 4
For installation, reverse the removal proce-
dure.
To Next Page
