Components
39
EMU26003
Engine stop button (if equipped)
The engine stop button stops the engine
when the button is pushed.
EMU26091
Main switch
The main switch controls the ignition system;
its operation is described below.
●
“” (off)
With the main switch in the “” (off) posi-
tion, the electrical circuits are off, and the key
can be removed.
●
“” (on)
With the main switch in the “” (on) position,
the electrical circuits are on, and the key can-
not be removed.
● “” (start)
With the main switch in the “” (start) po-
sition, the starter motor turns to start the en-
gine. When the key is released, it returns
automatically to the “” (on) position.
EMU26112
Steering friction adjuster (if equipped)
A friction device provides adjustable resis-
tance to the steering mechanism, and can be
set according to operator preference. An ad-
juster lever is located on the bottom of the
tiller handle bracket.

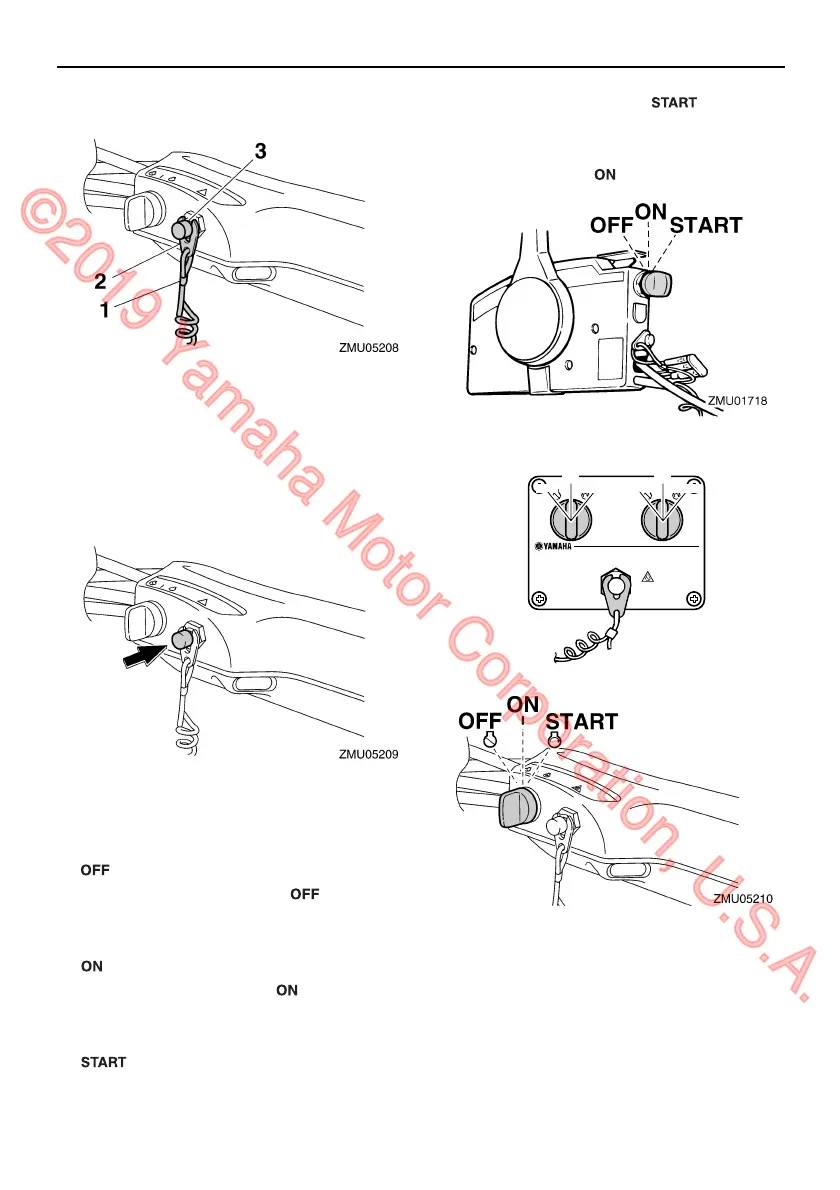

3. Engine shut-off switch
1. Cord
2. Clip
3. Engine shut-off switch
ON
OFF START
ON
OFF START
ZMU04566
