Instruments and indicators
56
EMU41041

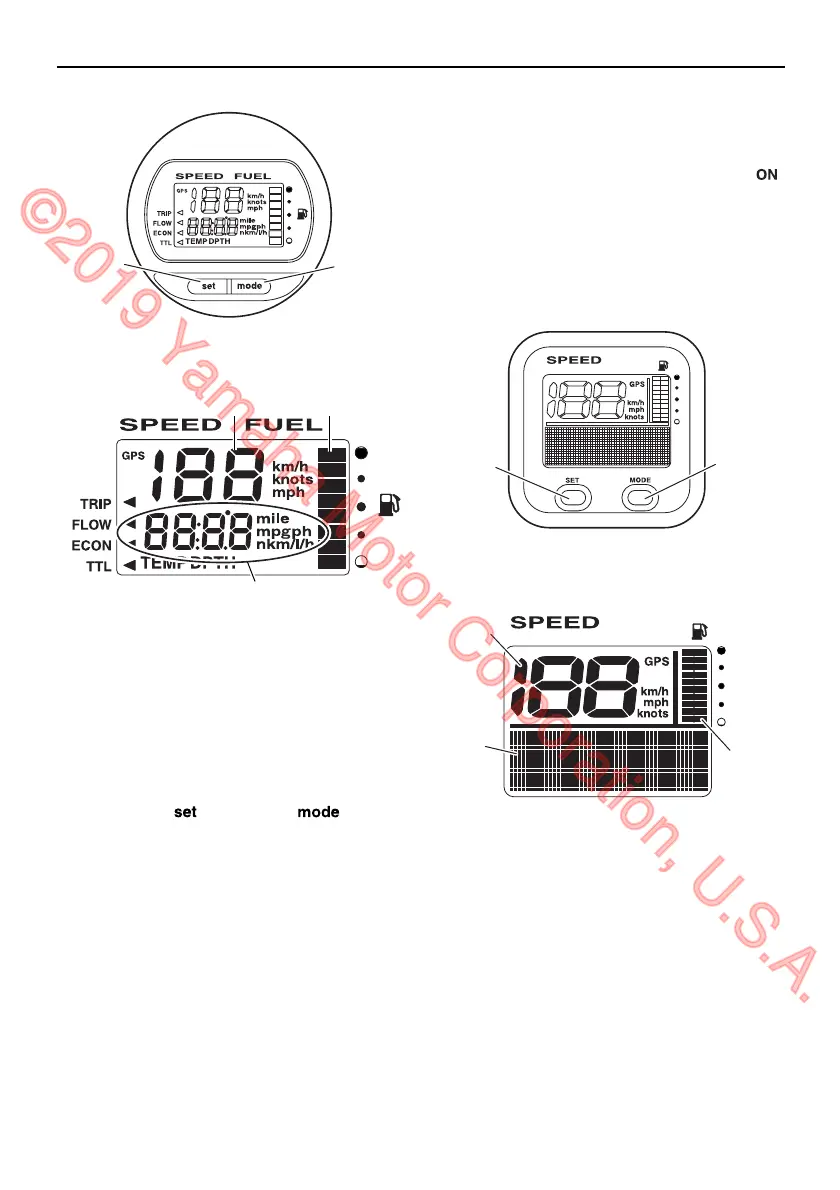

Command Link speedometer
The speedometer unit shows the boat speed
and has functions of fuel meter and system
voltage display. The chosen display is select-
ed using the “” (set) and “” (mode)
buttons as described in this section. In addi-
tion, the speedometer can show the desired
unit of measurement such as km/h, mph, or
knots. If the speed sensor is installed, the unit
can also show the trip display. However, even
if the speed sensor is not installed, the trip dis-
play can be shown by connecting an optional
sensor to the unit. In addition, if optional sen-
sors are connected to the unit, water surface
temperature display, depth display, and clock
will also be available. For the optional sen-
sors, consult your Yamaha dealer.
After the main switch is first turned to the “”
(on) position, all of the displays come on as a
test. After a few seconds, the unit will change
to normal operation.
For more information, see the operation man-
ual for the meters.
EMU41021
Command Link fuel manage-
ment meter
The fuel management meter has the func-
tions of fuel flow meter, total consumption dis-
play, fuel economy display, and remaining
1. Set button
2. Mode button
1. Speedometer
2. Fuel meter
3. Multifunction display
2
1
ZMU05434
12
3
ZMU05435
1. Set button
2. Mode button
1. Speedometer
2. Fuel meter
3. Multifunction display
2
1
ZMU05436
1
2
3
ZMU05437
U63P1DE0.book Page 56 Tuesday, March 29, 2011 7:15 PM
