Instruments and indicators
48
The clock operates on battery power. Discon-
necting the battery will stop the clock. Reset
the clock after connecting the battery.
EMU36080
Voltmeter
The voltmeter displays the charge of the bat-
tery in volts(V).
EMU26721
Fuel level-alert indicator
If the fuel level decreases to one segment, the
fuel level alert segment will blink.
Do not continue to operate the engine with full
throttle if an alert device has activated. Get
back to the port within trolling engine speed.
NOTICE: Running out of fuel can damage
the engine.
[ECM01770]
EMU26732
Low battery voltage-alert indicator
If battery voltage drops, the display will auto-
matically turn on and blink.
Get back to the port soon if an alert device has
activated. For charging the battery, consult
your Yamaha dealer.
EMU26741
Fuel management meter
The fuel management meter shows the state
of the fuel consumption while the engine is
running.
All segments of the display will light momen-
tarily after the main switch is turned on and
will return to normal thereafter.
EMU26752
Fuel flow meter
The fuel flow meter displays the amount of
fuel flow over a one-hour period, at the current
rate of engine operation.

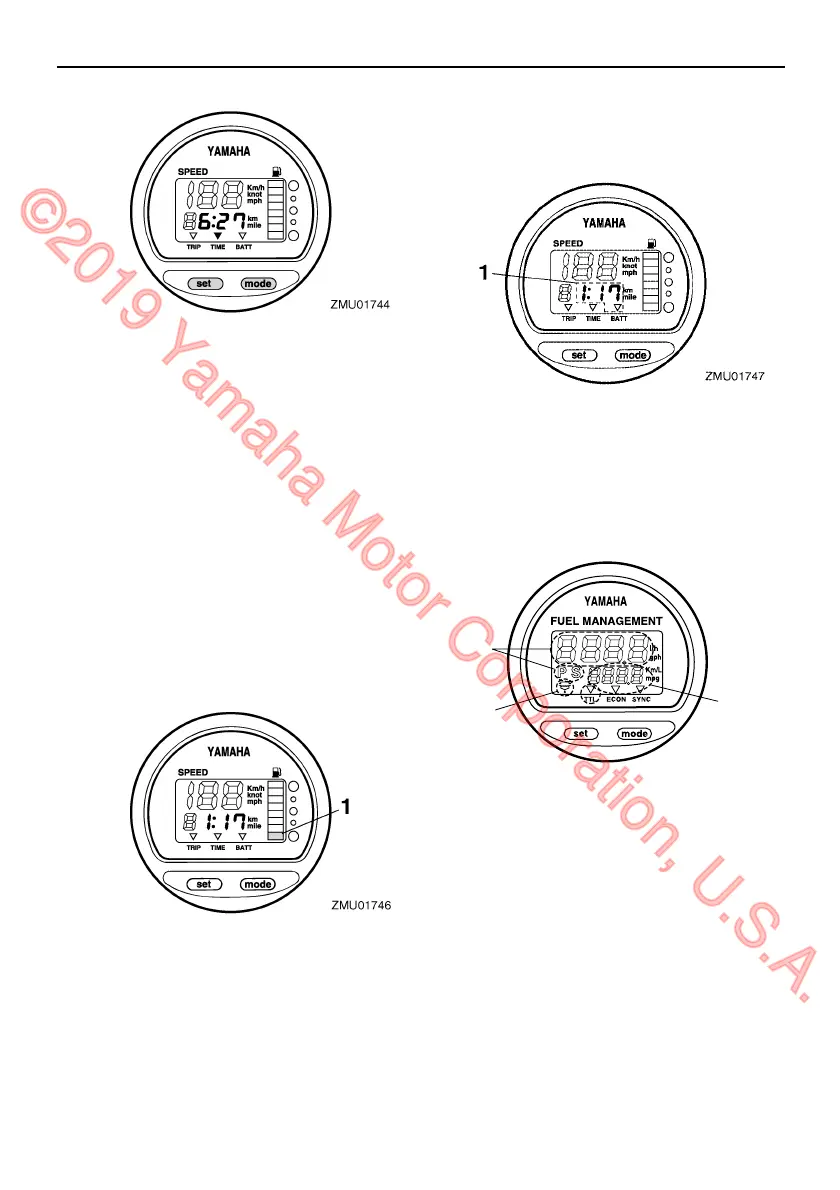

1. Fuel level-alert segment
1. Low battery indicator
1. Fuel flow meter
2. Fuel consumption meter / Fuel economy
meter / Twin engine speed synchronizer
3. Water separator-alert indicator (operates
only if the sensor has been installed)
ZMU01748
1
2
3
