Instruments and indicators
51
EMU26793
Water separator-alert indicator
This indicator will blink when water has accu-
mulated in the water separator. In such an
event, stop the engine and drain the water
from the separator.
This indicator only operates when a water
separator sensor is equipped.
EMU40791
Command Link meter
There are 6 types of Command Link meters:
tachometer unit (square and round types),
speedometer unit (square type), speed & fuel
meter unit (square and round types), and fuel
management meter (square type). The indi-
cator system is slightly different between the
round and square types. Check the model
and type of your unit carefully. This manual
describes mainly the alert indicators. For
more details on setting meters or changing in-
dicator systems, see the operation manual for
the meters.
EMU41163
Command Link tachometer
The tachometer shows the engine speed and
has functions of trim meter, adjusting trolling
speed, cooling water/engine temperature dis-
play, battery voltage display, total hour/trip
hour display, oil pressure display, water de-
tection alert, engine trouble alert, and periodic
maintenance notification. If the cooling water
pressure sensor is installed, the unit can also
show the cooling water pressure display.
However, even if the cooling water pressure
sensor is not installed, the cooling water pres-
sure display can be shown by connecting an
optional sensor to the unit. For the optional
sensor, consult your Yamaha dealer. The ta-
chometer unit is available in round and square
types. Check your tachometer unit type.

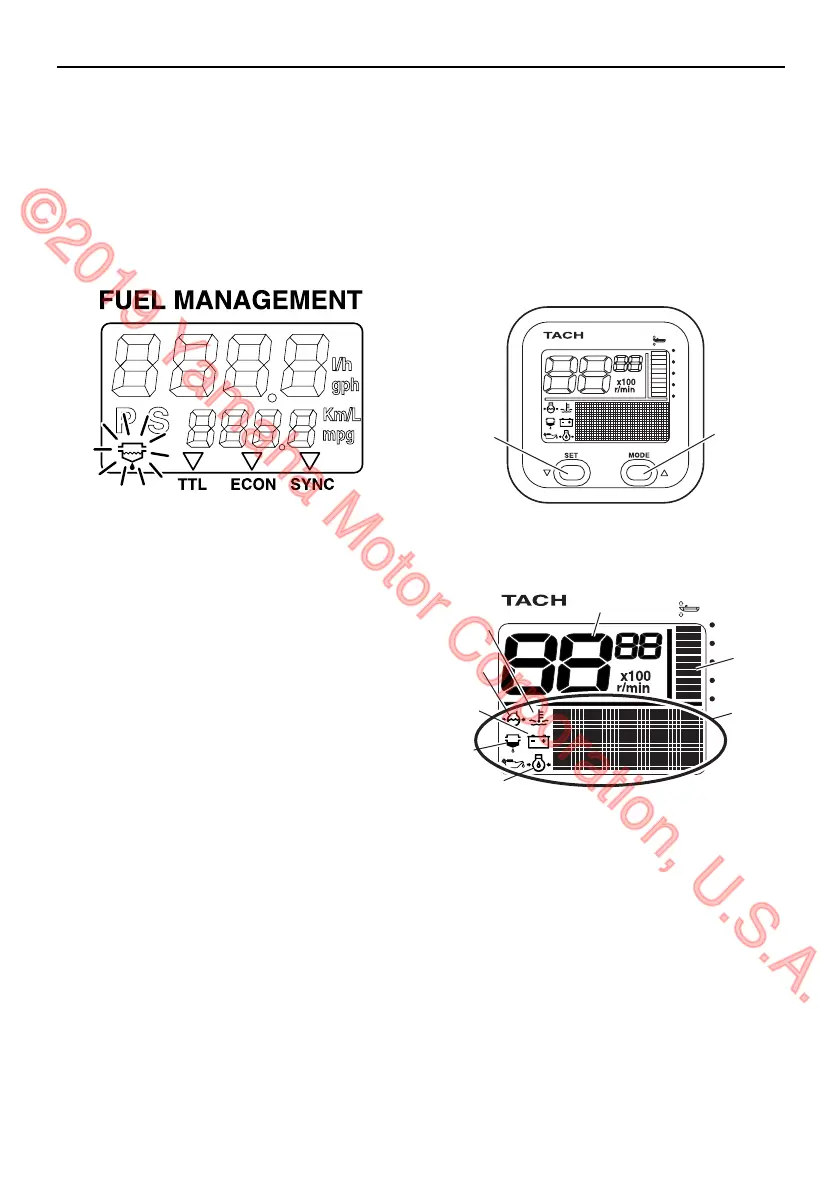

ZMU01755
1. Set button
2. Mode button
1. Tachometer
2. Trim meter
3. Multifunction display
4. Cooling water pressure
5. Cooling water/engine temperature
6. Water detection-alert indicator
7. Battery voltage
8. Oil pressure (4-stroke models)
2
1
ZMU05415
2
3
1
4
5
6
7
8
ZMU05416
