FEATURES ➤ Part names and functions En 11

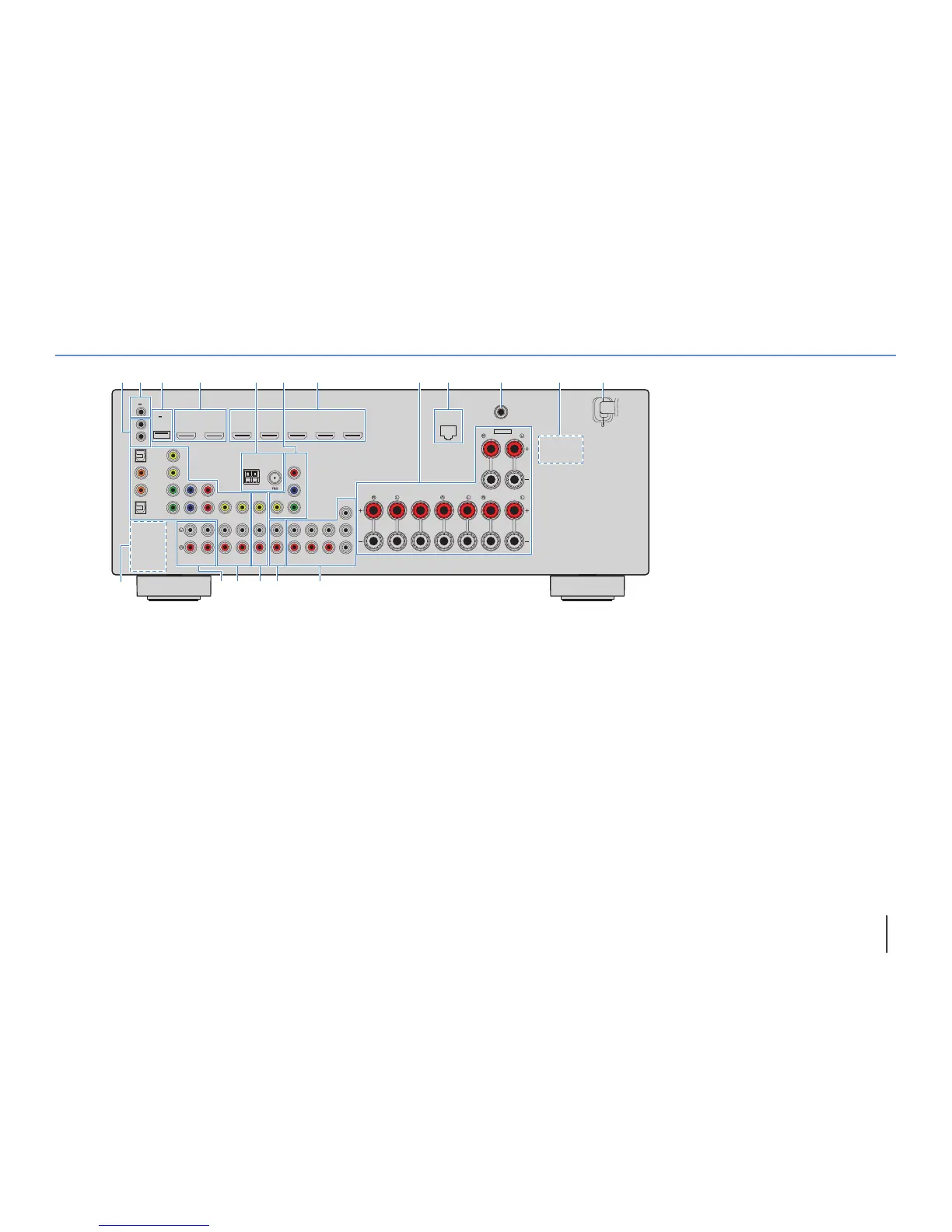

Rear panel (RX-V777)
1 REMOTE IN/OUT jacks
For connecting to an infrared signal receiver/emitter that
allows you to operate the unit and other devices from another
room (p.80).
2 TRIGGER OUT jack
For connecting to a device that supports the trigger function
(p.32).
3 DC OUT jack
For connecting to an optional accessory.
4 HDMI OUT 1–2 jacks
For connecting to HDMI-compatible TVs and outputting
video/audio signals (p.23). When using ARC, TV audio signal
can also be input through the HDMI OUT 1 jack.
5 ANTENNA jacks
For connecting to FM and AM antennas (p.29).
6 MONITOR OUT jacks
COMPONENT VIDEO jacks
For connecting to a TV that supports component video and
outputting video signals (p.23).
VIDEO jack
For connecting to a TV that supports composite video and
outputting video signals (p.24).
7 HDMI 1–5 jacks
For connecting to HDMI-compatible playback devices and
inputting video/audio signals (p.25).
8 SPEAKERS terminals
For connecting to speakers (p.19).
9 NETWORK jack
For connecting to a network with a network cable (p.30).
0 WIRELESS jack
For connecting the supplied wireless antenna (p.30).
A VOLTAGE SELECTOR
(General model only)
Selects the switch position according to your local voltage
(p.32).
B Power cable
For connecting to an AC wall outlet (p.32).
C PHONO jacks
(Except for U.S.A. and Canada models)
For connecting to a turntable (p.28).
D AUDIO 1–2 jacks
For connecting to audio playback devices and inputting
audio signals (p.28).
E AV 1–6 jacks
For connecting to video/audio playback devices and
inputting video/audio signals (p.25).
F AV OUT jacks
For outputting video/audio to a recording device (such as a
VCR) (p.31).
G ZONE2 OUT jacks
For connecting to the external amplifier used in Zone2 and
for outputting audio (p.79).
H PRE OUT jacks
For connecting to a subwoofer with built-in amplifier or to an
external power amplifier (p.31).
AUDIO 1
AUDIO 2
OPTICAL
OPTICAL
COAXIAL
VIDEO
AV4
AV3
AV2
AV 1
(TV)
P B
Y
P
R
COMPONENT
VIDEO
VIDEO
MONITOR OUT
P B
Y
P
R
HDMI 1 HDMI 2 HDMI 3 HDMI 4 HDMI 5
(
BD/DVD
)
12
ARC
ANTENNA
FM AM
FRONT CENTER SURROUND
SINGLE
SURROUND BACK/BI-AMP
SPEAKERS
AV 5
VIDEO
AV 6
AV OUT
ZONE OUT
SUBWOOFER
SUR. BACKSURROUND FRONT
PRE OUT
CENTER
SINGLE
ZONE 2
NETWORK
DC OUT
TRIGGER OUT
REMOTE
5V 0.5A
(
NET
)
12V
IN
OUT
0.1A
ZONE2/F.PRESENCE
EXTRA SP
COMPONENT VIDEO
CENTER
1
2
HDMI
OUT
(
RADIO
)
WIRELESS
2
GD H
8
F
71 3 4 9
C
A B0
E
6
5
* The area around the video/audio output jacks is
marked in white on the actual product to
prevent improper connections.
(U.S.A. model)
