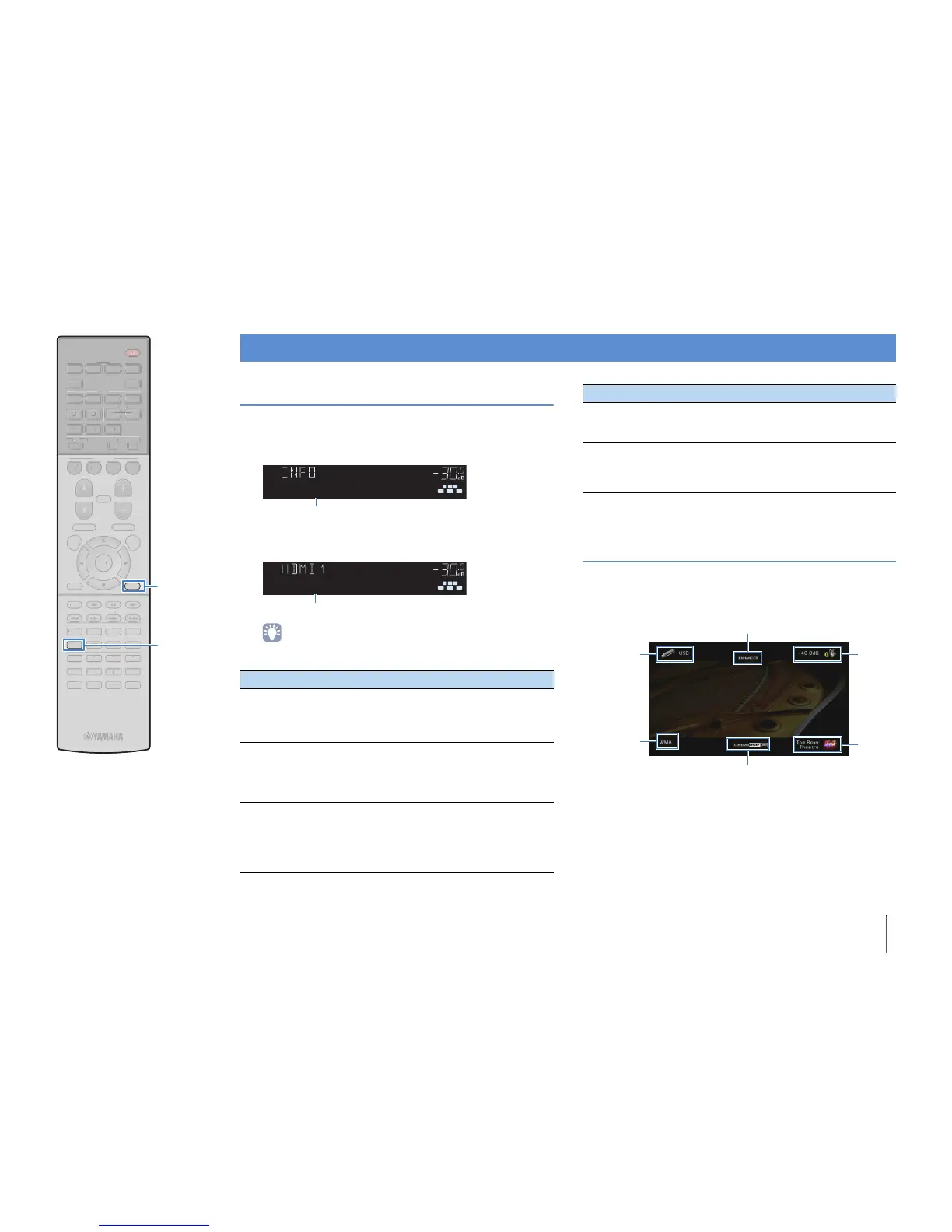

PLAYBACK ➤ Viewing the current status En 86
Switching information on the front display
1
Press INFO.
Each time you press the key, the displayed item changes.
About 3 seconds later, the corresponding information for
the displayed item appears.
• Available items vary depending on the selected input source. The displayed
item can also be applied separately to each input source group.
* The name of the audio decoder currently activated is displayed. If no audio
decoder is activated, “Decoder Off” appears.
Viewing the status information on the TV
1
Press DISPLAY.
The following information is displayed on the TV.
* RX-V777 only
2
To close the information display, press DISPLAY.
Viewing the current status
Input source group Item
HDMI 1–5
V-AU X
AV 1–6
AUDIO 1–2
Input (input source name), DSP Program (sound
mode name), Audio Decoder (decoder name*)
TUNER
Frequency (frequency), DSP Program (sound mode
name), Audio Decoder (decoder name*)
* (U.K. and Europe models only)
Radio Data System data is also available when the unit is
tuned into a Radio Data System broadcasting station ( p.60 ).
USB
SERVER
AirPlay
Song (song title), Artist (artist name), Album (album
name), DSP Program (sound mode name), Audio
Decoder (decoder name*)
* During simple playback of iPod:
Input (input source name), DSP Program (sound mode
name), Audio Decoder (decoder name*)
L C R
SL SW SR
VOL.
Audio Decoder
Item name
L C R
SL SW SR
VOL.
†‡Pro Logic
Information
NET RADIO
Song (song title), Album (album name), Station
(station name), DSP Program (sound mode name),
Audio Decoder (decoder name*)
PHONO
(RX-V777 only [except for U.S.A. and Canada
models])
Input (input source name), DSP Program (sound
mode name), Audio Decoder (decoder name*)
Input source group Item
Input source/
Party mode
status*
Audio format/
Decoder
Compressed Music Enhancer status
CINEMA DSP status
Sound
mode
Volume/
YPAO
Volume
status
90
ENT
MEMORY
5
6 87
1234
MOVIE
ENHANCER
TUNING PRESET
BAND
DISPLAYRETURN
ENTER
ON
SCREEN
OPTION
TOP MENU
MUTE
PROGRAM VOLUME
POP-UP/MENU
PURE DIRECT
STRAIGHT
INFO SLEEP
MUSIC
NET
PARTY HDMI OUT
TUNER
MAIN ZONE 2
USB
MODE
SCENE
BD
DVD
TV
NET RADIO
HDMI
AV
AUDIO
5
65
V-AUX
1234
12
12
34
SUR. DECODE
9
0
ENT
MEMORY
5
6
8
1
2
3
4
M
O
VI
E
ENHAN
CE
R
T
U
NIN
G
P
RE
S
ET
BAND
RETURN
ENTE
R
ON
SC
REE
N
O
PTI
ON
TO
P MEN
U
MUTE
PR
OG
RAM V
O
L
U
ME
PO
P-
U
P
/
MEN
U
P
U
RE DIRE
CT
S
TRAI
GH
T
S
LEE
P
M
US
I
C
N
E
T
PARTY
HDMI
O
U
T
TUNER
MAIN
Z
ONE
2
US
B
MO
D
E
SC
EN
E
BD
DV
D
TV
NE
T
RADI
O
H
DM
I
AV
A
UDI
O
5
6
5
V
-
AUX
1
2
3
4
1
2
1
2
3
4
SU
R. DE
CO
D
E
INFO
DISPLAY
