APPENDIX ➤ Information on HDMI En 134

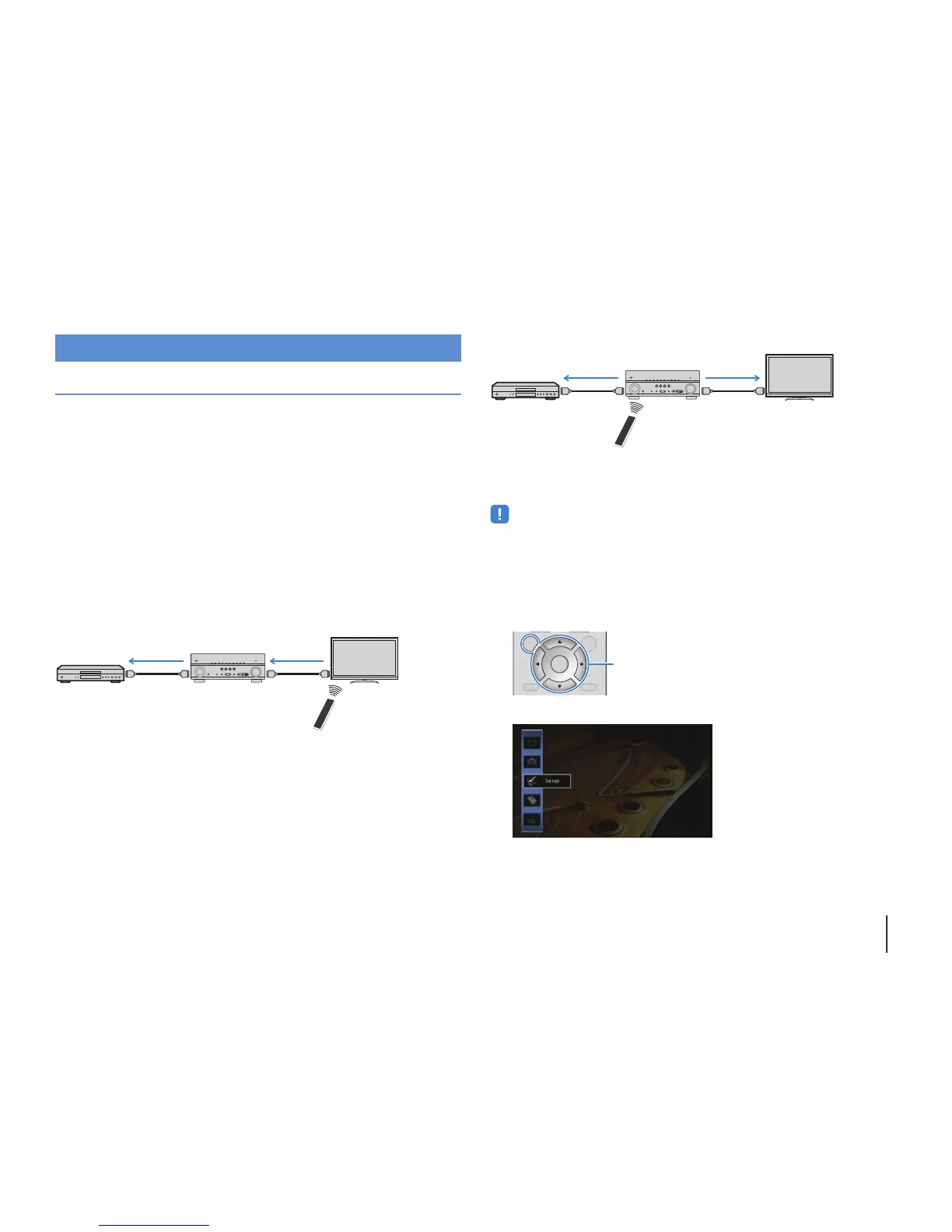

HDMI Control
HDMI Control allows you to operate external devices via HDMI. If you connect a TV that
supports HDMI Control to the unit with an HDMI cable, you can control the unit (such as
power and volume) with TV remote control operations. You can also control playback
devices (such as HDMI Control-compatible BD/DVD players) connected to the unit with
an HDMI cable.
For details on connections, see “Connecting a TV” (p.23) and “Connecting video
devices (such as BD/DVD players)” (p.25).
Operations available from the TV’s remote control
• Standby synchronization
• Volume control including mute
• Switching to input audio from the TV when the TV input is switched to its built-in tuner
• Switching to input video/audio from the selected playback device
• Switching between audio output devices (the unit or TV speaker)
(Example)
Operations available from the unit’s remote control
• Starting playback on the playback device and turning on the TV with a scene
selection (p.51)
• Switching the TV input to display the on-screen menu (when ON SCREEN is pressed)
• Controlling the playback device (playback and menu operations) using the external
device operation keys
(Example)
To use HDMI Control, you need to perform the following HDMI Control link setup after
connecting the TV and playback devices.
For details on settings and operating your TV, refer to the instruction manual for the TV.
• This setup is required every time you add a new HDMI Control-compatible device to your system.
1
Turn on the unit, TV, and playback devices.
2
Configure the settings of the unit.
a Switch the TV input to display video from the unit.
b Press ON SCREEN.
c Use the cursor keys to select “Setup” and press ENTER.
Information on HDMI
HDMI Control
Turn off the TV
The unit turns off
(standby)
HDMI Control
Playback device
also turns off
HDMI Control
Press SCENE (BD/DVD)
Turns on and displays
video from the playback
device
HDMI Control
Playback starts
DISPLAYRETURN
ENTER
ON
SCREEN
OPTION
DI
S
PLA
Y
RETURN
O
PTI
ON
ON SCREEN
Cursor keys
ENTER

Yamaha RX-V677 Specifications

General

Receiver type	Surround
Audio output channels	7.2 channels
Dynamic power per channel (4 Ohm)	190 W
Dynamic power per channel (8 Ohm)	125 W
Power output per channel (1KHz@8 Ohm)	105 W
Power output per channel (20-20KHz@8 Ohm)	90 W
HDMI in	6
Remote (IR) input	1
Composite video in	5
Component video (YPbPr/YCbCr) in	2
12V trigger	Yes
Speakers connectivity type	-
Supported radio bands	AM, FM
Optical drive included	No
Product color	Black
Audio decoders	Dolby Digital Plus, Dolby Pro Logic IIx, Dolby TrueHD, DTS-HD Master Audio
Volume control	Rotary
On Screen Display (OSD) languages	DEU, ENG, ESP, FRE, ITA, JPN, RUS
Power consumption (standby)	0.15 W

Weight and Dimensions

Depth	365 mm
Width	435 mm
Height	171 mm
Weight	10025 g
