PLAYBACK ➤ Playing back music in multiple rooms (multi-zone) En 79

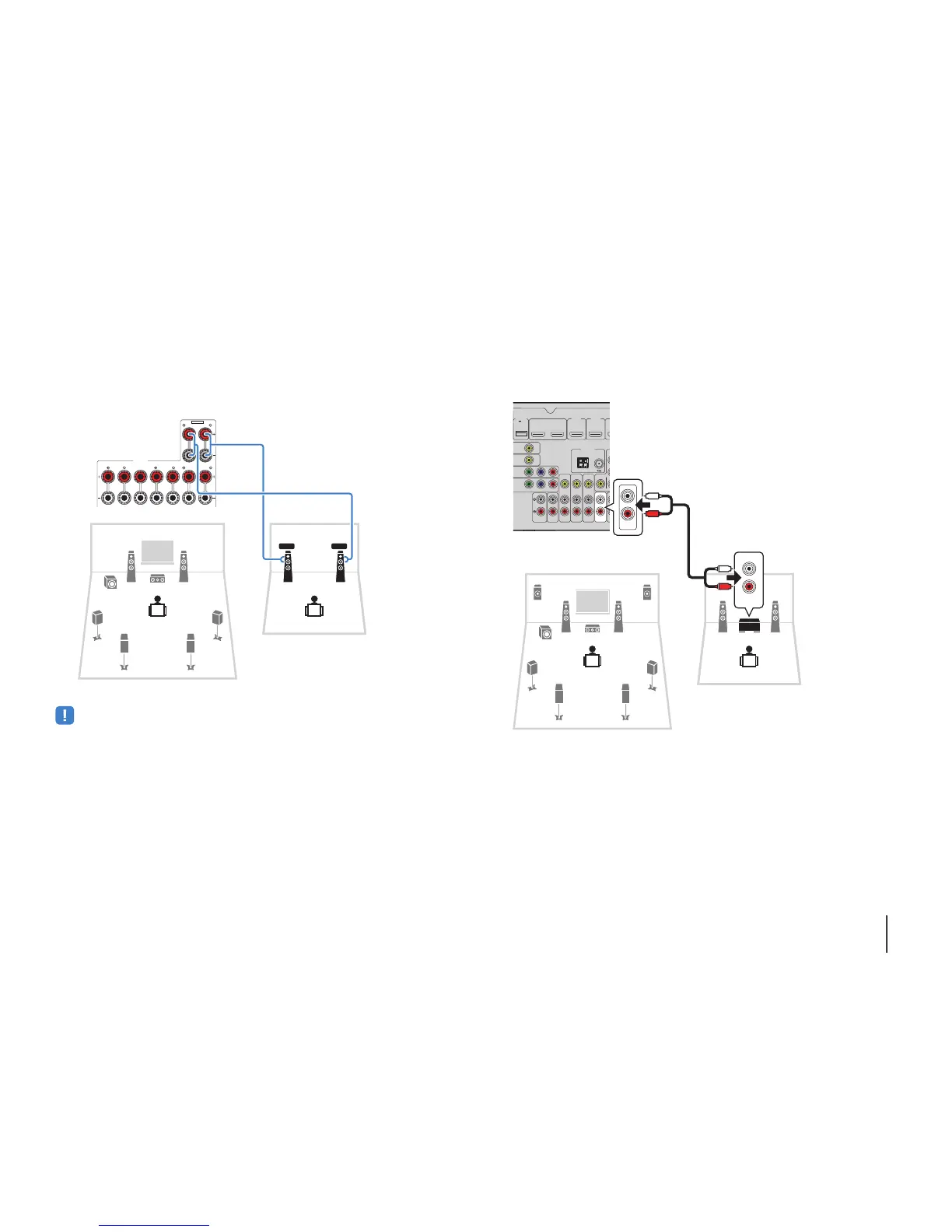

■ Using the unit’s internal amplifier
Connect the speakers placed in Zone2 to the unit with speaker cables.
To utilize the EXTRA SP terminals for Zone2 speakers, set “Power Amp Assign” (p.100)
in the “Setup” menu to “7ch +1ZONE” after connecting the power cable to an AC wall
outlet.
• When Zone2 output is enabled (p.81), the surround back speakers in the main zone do not output sound.
■ Using an external amplifier
Connect the external amplifier (with volume control) placed in Zone2 to the unit with a
stereo pin cable.
FRONT CENTER SURROUND
SINGLE
SURROUND BACK/BI-AMP
SPEAKERS
ZONE2/F.PRESENCE
EXTRA SP
FL FR
12
3
45
76
9
The unit (rear)
Main zone
Zone2
AUDIO 1
AUDIO 2
PTICAL
PTICAL
OAXIA L
VIDEO
AV4
AV3
AV2
AV 1
(TV)
P B
Y
P
R
CO
VIDEO
MONITOR
HDMI 1 HDMI 2
(
BD/DVD
)
12
ARC
ANTENNA
FM AM
AV 5
VIDEO
AV 6
AV OU T
ZONE OUT
F
ZONE 2
DC OUT
5V 0.5A
COMPONENT VIDEO
HDMI
OUT
(
RADIO
)
L
R
AUDIO
L
R
12
3
45
76
9
QW
ZONE OUT
ZONE 2
The unit (rear)
ZONE2 OUT jacks
Zone2
Main zone
External amplifier
Audio input
(analog stereo)

Yamaha RX-V677 Specifications

General

Receiver type	Surround
Audio output channels	7.2 channels
Dynamic power per channel (4 Ohm)	190 W
Dynamic power per channel (8 Ohm)	125 W
Power output per channel (1KHz@8 Ohm)	105 W
Power output per channel (20-20KHz@8 Ohm)	90 W
HDMI in	6
Remote (IR) input	1
Composite video in	5
Component video (YPbPr/YCbCr) in	2
12V trigger	Yes
Speakers connectivity type	-
Supported radio bands	AM, FM
Optical drive included	No
Product color	Black
Audio decoders	Dolby Digital Plus, Dolby Pro Logic IIx, Dolby TrueHD, DTS-HD Master Audio
Volume control	Rotary
On Screen Display (OSD) languages	DEU, ENG, ESP, FRE, ITA, JPN, RUS
Power consumption (standby)	0.15 W

Weight and Dimensions

Depth	365 mm
Width	435 mm
Height	171 mm
Weight	10025 g
