FEATURES ā¤ Part names and functions En 12

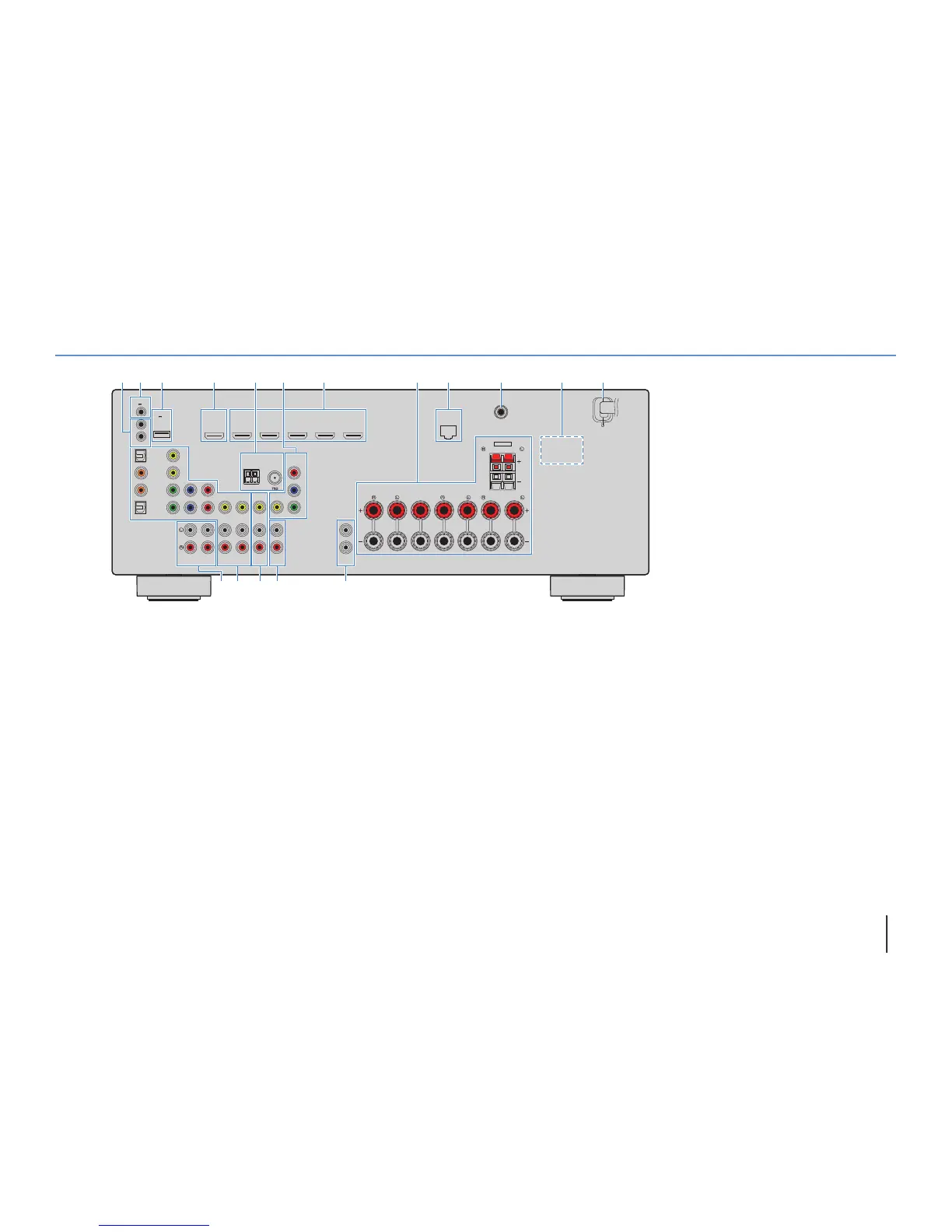

Rear panel (RX-V677)
1 REMOTE IN/OUT jacks
For connecting to an infrared signal receiver/emitter that
allows you to operate the unit and other devices from another
room (p.80).
2 TRIGGER OUT jack
For connecting to a device that supports the trigger function
(p.32).
3 DC OUT jack
For connecting to an optional accessory.
4 HDMI OUT jack
For connecting to an HDMI-compatible TV and outputting
video/audio signals (p.23). When using ARC, TV audio signal
can also be input through the HDMI OUT jack.
5 ANTENNA jacks
For connecting to FM and AM antennas (p.29).
6 MONITOR OUT jacks
COMPONENT VIDEO jacks
For connecting to a TV that supports component video and
outputting video signals (p.23).
VIDEO jack
For connecting to a TV that supports composite video and
outputting video signals (p.24).
7 HDMI 1ā5 jacks
For connecting to HDMI-compatible playback devices and
inputting video/audio signals (p.25).
8 SPEAKERS terminals
For connecting to speakers (p.19).
9 NETWORK jack
For connecting to a network with a network cable (p.30).
0 WIRELESS jack
For connecting the supplied wireless antenna (p.30).
A VOLTAGE SELECTOR
(General model only)
Selects the switch position according to your local voltage
(p.32).
B Power cable
For connecting to an AC wall outlet (p.32).
C AUDIO 1ā2 jacks
For connecting to audio playback devices and inputting
audio signals (p.28).
D AV 1ā6 jacks
For connecting to video/audio playback devices and
inputting video/audio signals (p.25).
E AV OUT jacks
For outputting video/audio to a recording device (such as a
VCR) (p.31).
F ZONE2 OUT jacks
For connecting to the external amplifier used in Zone2 and
for outputting audio (p.79).
G SUBWOOFER PRE OUT 1ā2 jacks
For connecting to a subwoofer with built-in amplifier (p.31).
