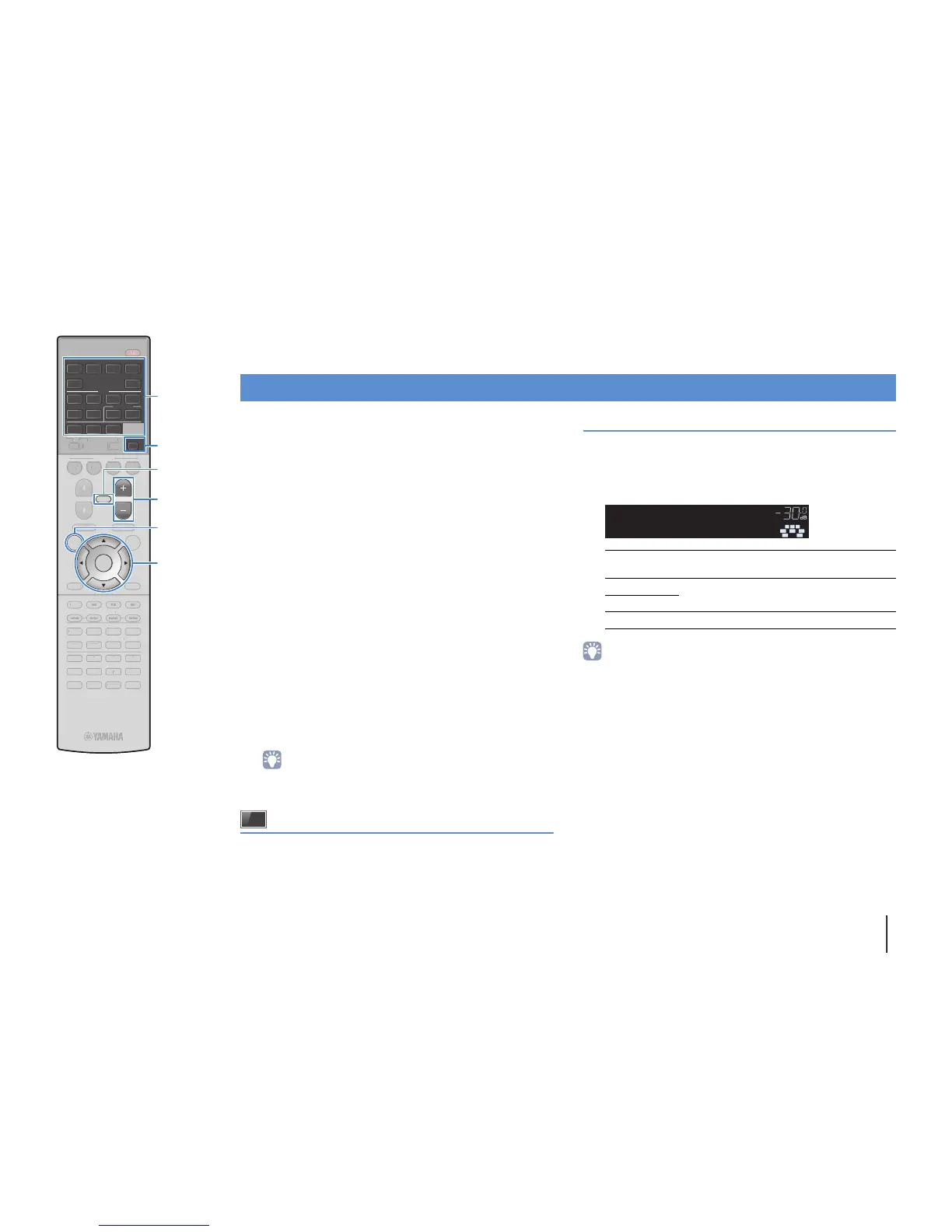

PLAYBACK ➤ Basic playback procedure En 50
PLAYBACK
1
Turn on the external devices (such as a TV or
BD/DVD player) connected to the unit.
2
Use the input selection keys to select an input
source.
3
Start playback on the external device or select a
radio station.
Refer to the instruction manual for the external device.
For details on the following operations, see the
corresponding pages.
• Listening to FM/AM radio (p.58)
• Playing back iPod music (p.63)
• Playing back music stored on a USB storage device
(p.66)
• Playing back music stored on media servers (PCs/NAS)
(p.69)
• Listening to Internet radio (p.73)
• Playing back music with AirPlay (p.76)
4
Press VOLUME to adjust the volume.
• To mute the audio output, press MUTE. Press MUTE again to unmute.
• To adjust the treble/bass settings, use the “Option” menu or TONE
CONTROL on the front panel (p.88).
On-screen input selection
a Press ON SCREEN.
b Use the cursor keys to select “Input” and press ENTER.
c Use the cursor keys to select the desired input source and
press ENTER.
Selecting an HDMI output jack (RX-V777 only)
1
Press HDMI OUT to select an HDMI OUT jack.
Each time you press the key, the HDMI OUT jack to be
used for signal output changes.
• You can also select an HDMI output jack by selecting a scene (p.51).
• When “HDMI OUT 1+2” is selected, the unit outputs video signals at the highest
resolution supported by both TVs (or projectors) connected to the unit. (For
example, if you have connected a 1080p TV to the HDMI OUT 1 jack and a 720p
TV to the HDMI OUT 2 jack, the unit outputs 720p video signals.)
Basic playback procedure
HDMI OUT 1+2
Outputs the same signal at both the HDMI OUT 1
and HDMI OUT 2 jacks.
HDMI OUT 1
Output the signals at the selected HDMI OUT jack.
HDMI OUT 2
HDMI OUT Off Does not output the signals at the HDMI OUT jacks.
L C R
SL
SBL SBR
SW SR
VOL.
HDMI OUT 1+2
90
ENT
MEMORY
5
6 87
1234
MOVIE
ENHANCER
TUNING PRESET
BAND
DISPLAYRETURN
ENTER
ON
SCREEN
OPTION
TOP MENU
MUTE
PROGRAM VOLUME
POP-UP/MENU
PURE DIRECT
STRAIGHT
INFO SLEEP
MUSIC
NET
PARTY HDMI OUT
TUNER
MAIN ZONE 2
USB
MODE
SCENE
BD
DVD
TV
NET RADIO
HDMI
AV
AUDIO
5
65
V-AUX
1234
12
12
34
SUR. DECODE
9
0
ENT
MEMORY
5
6
8
1
2
3
4
M
O
VI
E
ENHAN
CE
R
T
U
NIN
G
P
RE
S
ET
BAND
DI
S
PLA
Y
RETURN
O
PTI
ON
TO
P MEN
U
PR
OG
RAM
PO
P-
U
P
/
MEN
U
P
U
RE DIRE
CT
S
TRAI
GH
T
INF
O
S
LEE
P
M
US
I
C
PARTY
MAIN
Z
ONE
2
MO
D
E
SC
EN
E
BD
DV
D
TV
NE
T
RADI
O
SU
R. DE
CO
D
E
ON SCREEN
ENTER
VOLUME
MUTE
HDMI OUT
Cursor keys
Input selection keys
