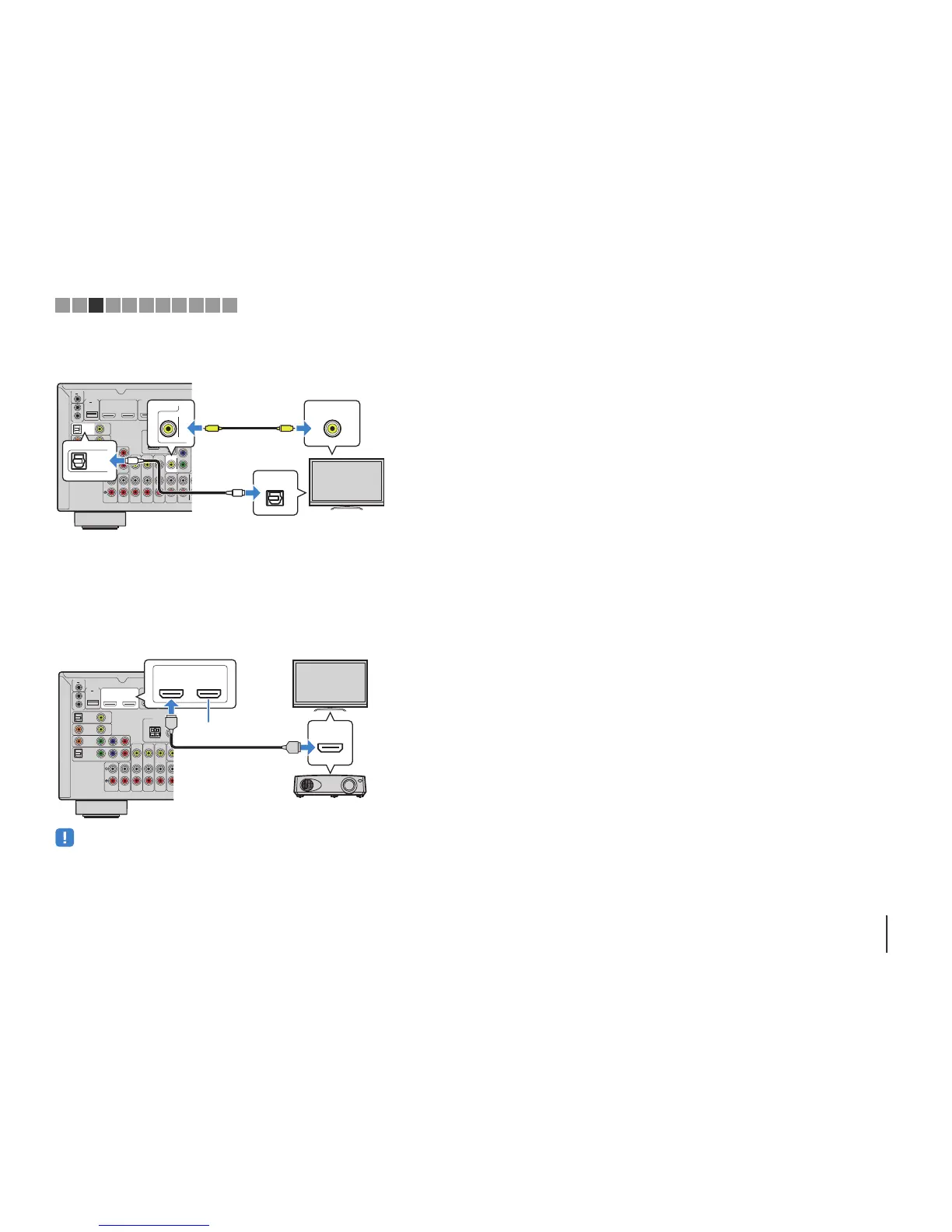

PREPARATIONS ➤ Connecting a TV En 24
❑ VIDEO (composite video) connection (with a video pin cable)
■ Connecting another TV or a projector
(RX-V777 only)
The unit has two HDMI output jacks. If you connect another TV or a projector to the unit
with an HDMI cable, you can switch the TV (or projector) to be used for watching
videos with the remote control (p.50).
• HDMI Control is not available on the HDMI OUT 2 jack.
AUDIO 1
AUDIO 2
OPTICAL
OPTICAL
COAXIAL
VIDEO
AV4
AV3
AV2
AV 1
(TV)
P B
Y
P
R
COMPONENT
VIDEO
VIDEO
MONITOR OUT
P B
Y
P
R
HDMI 1 HDMI 2 HDMI 3
(
BD/DVD
)
12
ARC
ANTENNA
FM AM
AV 5
VIDEO
AV 6
AV OU T
ZONE OUT
S
U
FRONT
ZONE 2
DC OUT
TRIGGER OUT
REMOTE
5V 0.5A
12V
IN
OUT
0.1A
COMPONENT VIDEO
HDMI
OUT
(
RADIO
)
VIDEO
VIDEO
MONITOR
V
V
OPTICAL
O
O
OPTICAL
AV4
(TV)
The unit (rear)
MONITOR OUT
(VIDEO) jack
Video input
(composite video)
AV 4 (OPTICAL) jack
Audio output
(digital optical)
TV
AUDIO 1
AUDIO 2
OPTICAL
OPTICAL
COAXIAL
VIDEO
AV4
AV3
AV2
AV 1
(TV)
P B
Y
P
R
VID
E
M
O
HDMI 1 HDMI 2
(
BD/DVD
)
12
ARC
ANTENNA
FM AM
AV 5
VIDEO
AV 6
AV OU T
ZONE
O
ZON
E
DC OUT
TRIGGER OUT
REMOTE
5V 0.5A
12V
IN
OUT
0.1A
COMPONENT VIDEO
HDMI
OUT
(
RADIO
)
HDMI
HDMI
21
OUT
ARC
HDMI
HDMI
The unit (rear)
HDMI OUT 2 jack
HDMI input
Projector
TV (already connected)
TV
1 2 3 4 5 6 7 8 9 10 11

Yamaha RX-V677 Specifications

General

Receiver type	Surround
Audio output channels	7.2 channels
Dynamic power per channel (4 Ohm)	190 W
Dynamic power per channel (8 Ohm)	125 W
Power output per channel (1KHz@8 Ohm)	105 W
Power output per channel (20-20KHz@8 Ohm)	90 W
HDMI in	6
Remote (IR) input	1
Composite video in	5
Component video (YPbPr/YCbCr) in	2
12V trigger	Yes
Speakers connectivity type	-
Supported radio bands	AM, FM
Optical drive included	No
Product color	Black
Audio decoders	Dolby Digital Plus, Dolby Pro Logic IIx, Dolby TrueHD, DTS-HD Master Audio
Volume control	Rotary
On Screen Display (OSD) languages	DEU, ENG, ESP, FRE, ITA, JPN, RUS
Power consumption (standby)	0.15 W

Weight and Dimensions

Depth	365 mm
Width	435 mm
Height	171 mm
Weight	10025 g
