Yamaha SU10 - Rear Panel

10 ● Controls, Connectors, and LCD ●

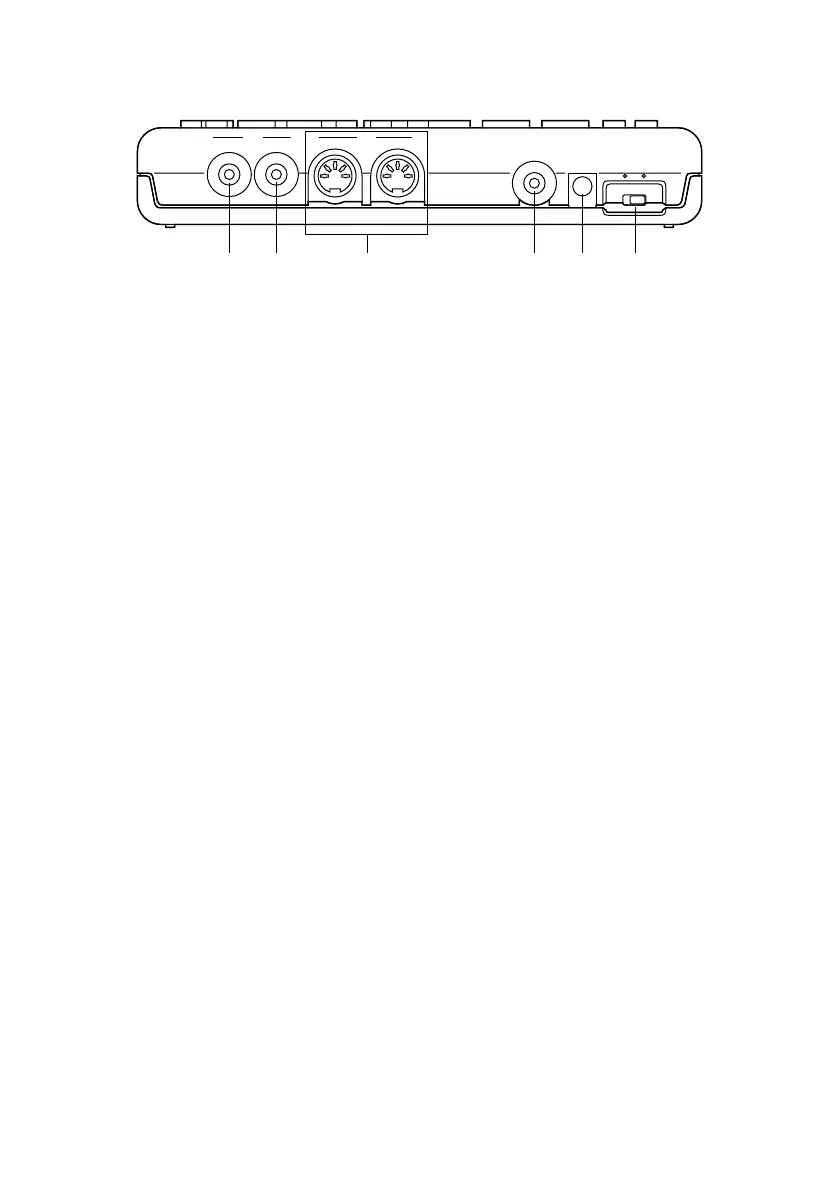

Rear Panel
OUTPUT INPUT
LINE
OUT IN
MIDI
MIC INPUT
DC IN POWER
OFFON
1
2
34
5
6
1 LINE OUTPUT miniphone jack
Outputs a stereo analog signal to powered speakers or other playback device.
2 LINE INPUT miniphone jack
Inputs an analog stereo signal from an external device such as a CD player.
3 MIDI IN/OUT
Standard MIDI connectors. You use these connectors to link your SU10 to
other MIDI devices.
4 MIC INPUT miniphone jack
Accepts input from a dynamic or powered condenser-type microphone.
5 DC IN power input
Receives power input from a PA-3B or PA-1B DC power adaptor.
CAUTION!
Use only a PA-3B or PA-1B adaptor. Use of a different adaptor type may result in
electric shock or device damage.
6 POWER switch
Switches the SU10 power ON or OFF.
