Controls, Connectors, and LCD
●
11
Right Side
MIN
VOLUME
MAX
PHONES
12
1
VOLUME slider
Adjusts the output volume to the PHONES and LINE OUTPUT connectors.
2
Headphone jack
Stereo miniphone jack; connects to stereo headphones.

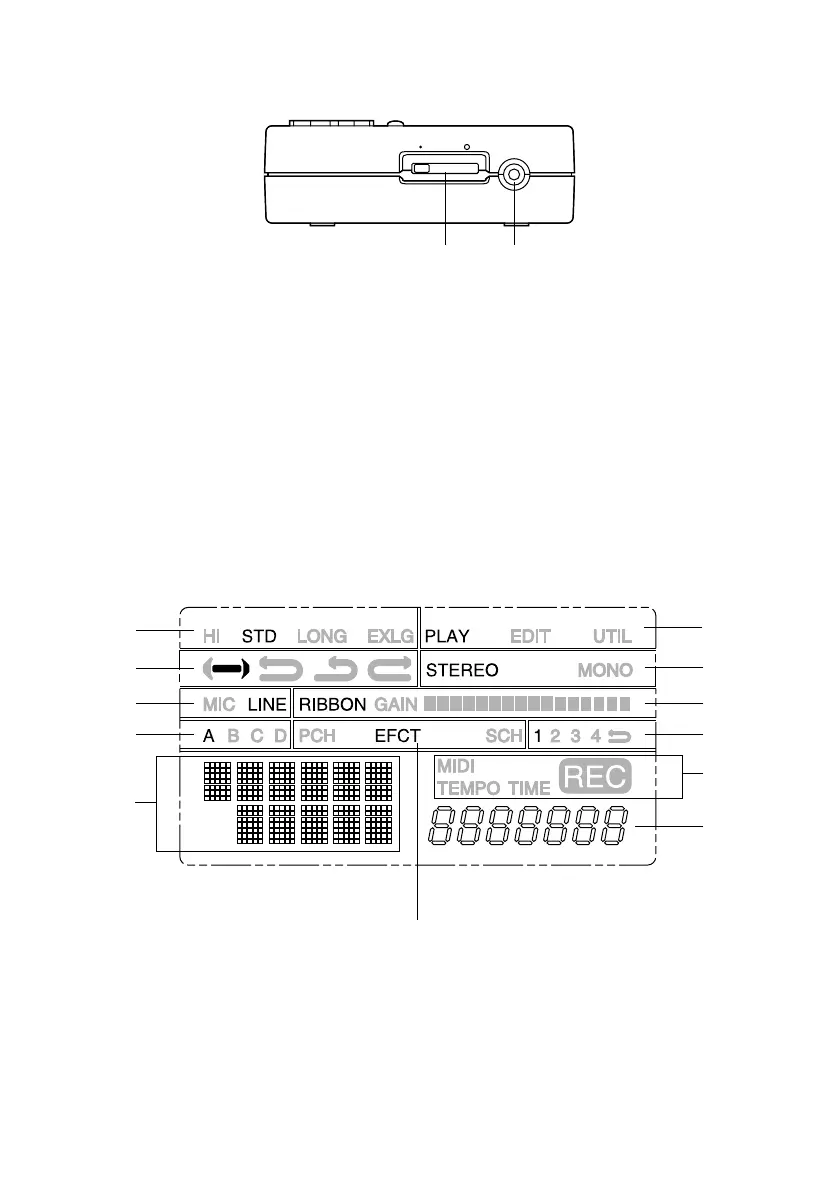

Screen Display
The LCD consists of various compartments, each displaying a different type of
information.
1
3
0
A
B
2
4
56
7
8
9
17
19
