14 ● Supplying Power and Connecting Up ●
When to Replace Batteries
When batteries begin to go low, the SU10 disables EDIT, RECORD, and UTILITY
modes first. If you attempt to switch from PLAY mode into one of these other
modes at this time, the SU10 displays the Battry Low! message briefly and
remains in PLAY mode. If you are already working in EDIT, RECORD, or UTILITY
mode, the SU10 displays Battry Low!, then displays the Keep PwrOn mes-
sage while registering any new data, then changes to PLAY mode.
You can continue to use PLAY mode for some time after other modes are disabled.
Eventually the Battry Low! message will appear during normal playback. You
still have about five minutes of PLAY-mode operation left; the message will repeat
intermittently until batteries are exhausted. The message then changes to Battry
End!, and the SU10 shuts down until you replace the batteries or connect an AC
adapter.
• Do not reuse batteries that you have removed following a Battry Low! message.
• Do not switch off power or remove batteries while the Keep PwrOn message is on the screen.
Connecting Up the SU10

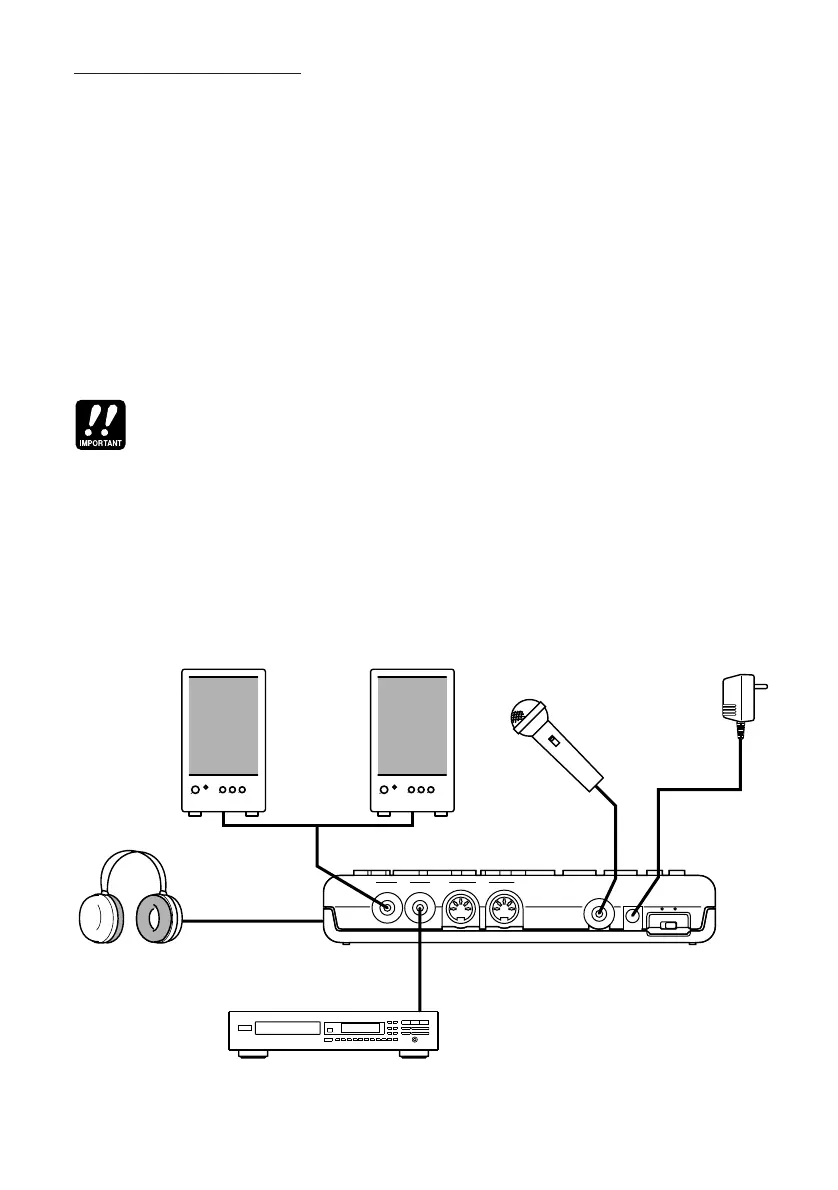

The following illustration shows how devices connect to the SU10. The drawings
on the next page show some typical MIDI configurations.
OUTPUT INPUT
LINE
OUT IN
MIDI
MIC INPUT
DC IN POWER
OFFON
Powered
speakers
CD/Cassette
Player
LINE IN
MIC IN DC IN
PA-3B
or
PA-1B
Adaptor
Microphone
Headphones
PHONES
LINE IN LINE IN
LINE OUT
YAM
AHA
SU10
LINE OUT
