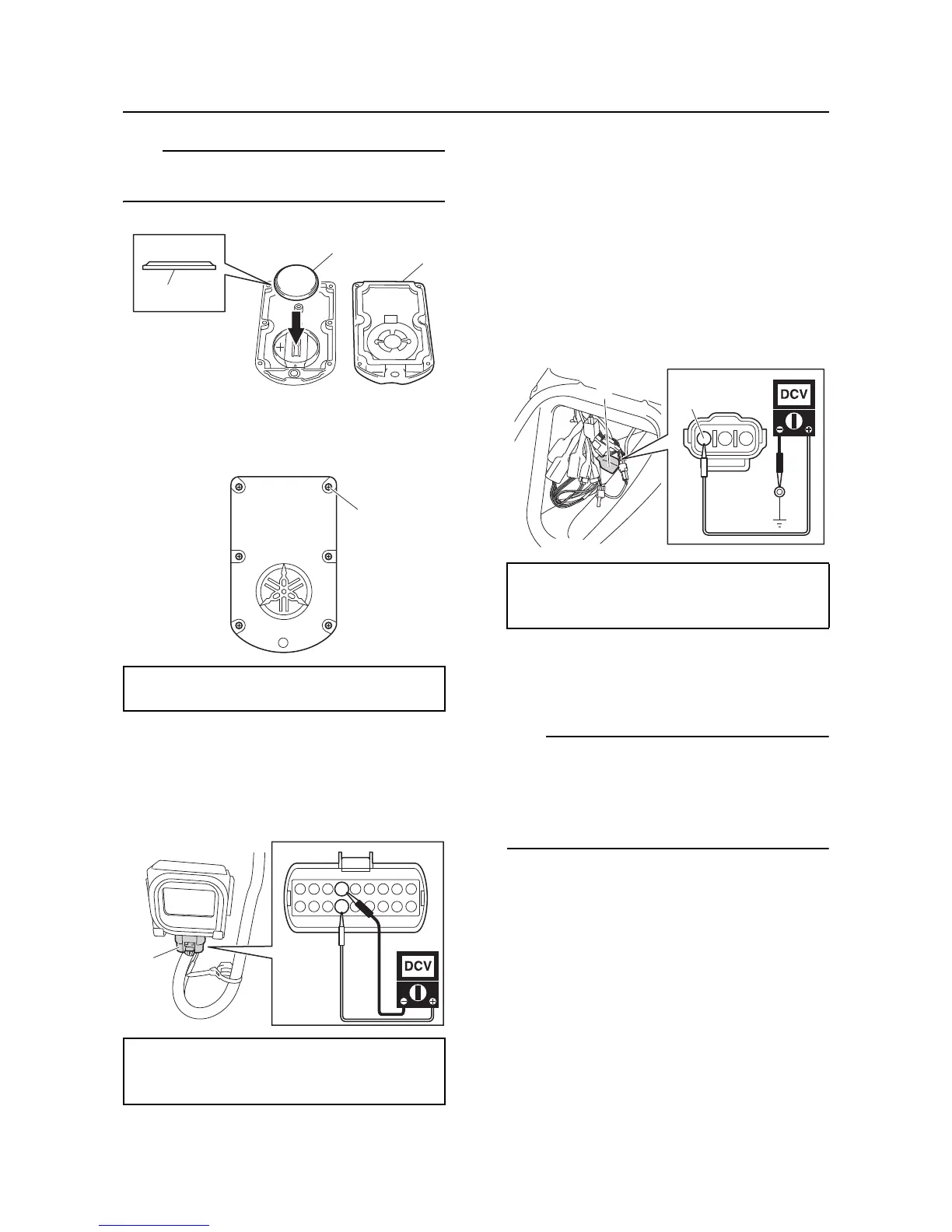

Remote control system
7-38
TIP:
Install the battery (CR2016) “1” with the posi-
tive side “a” facing down.
8. Tighten the screws “1” to the specified
torque in the order [1], [2], and so on.
Remote control receiver check
1. Disconnect the remote control receiver
coupler “a”, and then measure the input
voltage at the remote control receiver cou-
pler terminals (wire harness end).
2. Connect the remote control receiver cou-
pler.
3. Disconnect the multifunction meter cou-
pler “a” from the remote control receiver.
4. Supply power to the ECM, and then mea-
sure the remote control receiver output
voltage at the multifunction meter coupler
terminal (wire harness end) and ground.
Replace the remote control receiver if out
of specification.
5. Connect the multifunction meter coupler.
Transmitter registration
TIP:
Each remote control transmitter “1” has a
unique ID code.
To add or re-register the ID code of a remote
control transmitter to the remote control re-
ceiver “2”, connect the entry box “3”.
1. Connect the entry box to the 2-pin commu-
nication coupler “a”.
Transmitter cover screw “1”
0.1 Nm (0.01 kgf·m, 0.07 ft·lb)
Input voltage
12 V (battery voltage)
Red (R)–Black (B)
1
2
a
[3]
[6]
[2] [4]
[5]
[1]
1
4
13
a
Output voltage
11–12 V
Blue/Yellow (L/Y)–Ground
L/Y
a
