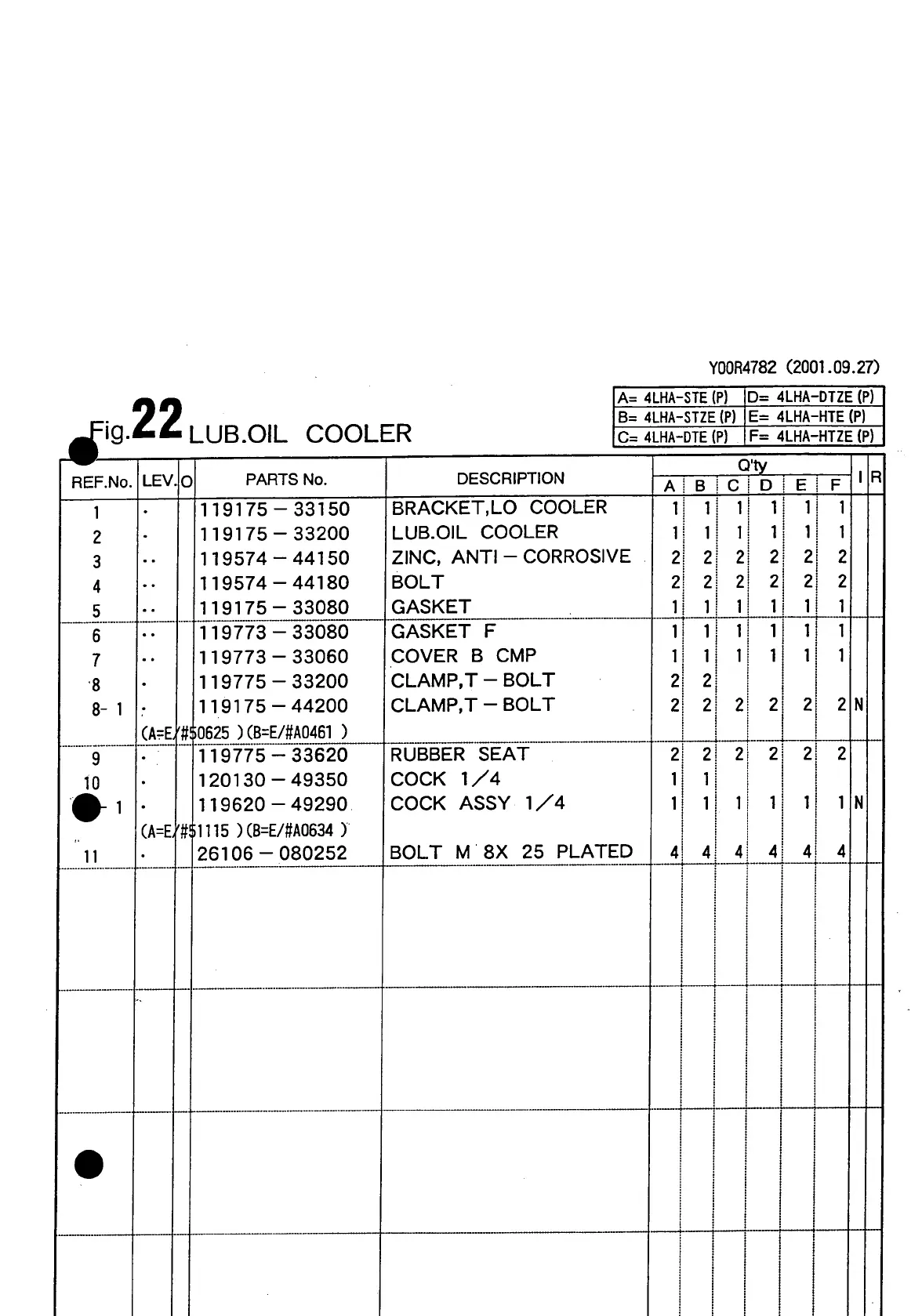

Yanmar 4LHA-HTP User Manual

Y00R4782 (2001.09.27)
ig-
22
LUB.OIL COOLER
A= 4LHA-STE (P)
D= 4LHA-DTZE (P)
B= 4LHA-STZE (P)
E= 4LHA-HTE (P)
C= 4LHA-DTE (P)
F= 4LHA-HTZE (P)
REF.No.
LEV.O
1
2
3
4
5
6
7
8
8- 1
(A=E
9
10
11
(A=E
PARTS No.
119175-33150
119175-33200
119574-44150
119574-44180
119175-33080
119773-33080
119773-33060
119775-33200
119175-44200
#$0625 )(B=E/#A0461 )
119775-33620
120130-49350
119620-49290
#$1115 )(B=E/#A0634 )
26106-080252
DESCRIPTION
BRACKET.LO COOLER
LUB.OIL COOLER
ZINC, ANTI - CORROSIVE
BOLT
GASKET
GASKET F
COVER B CMP
CLAMP.T - BOLT
CLAMP.T - BOLT
RUBBER SEAT
COCK 1/4
COCK ASSY 1/4
BOLT M 8X 25 PLATED
B
Q'ty
R
