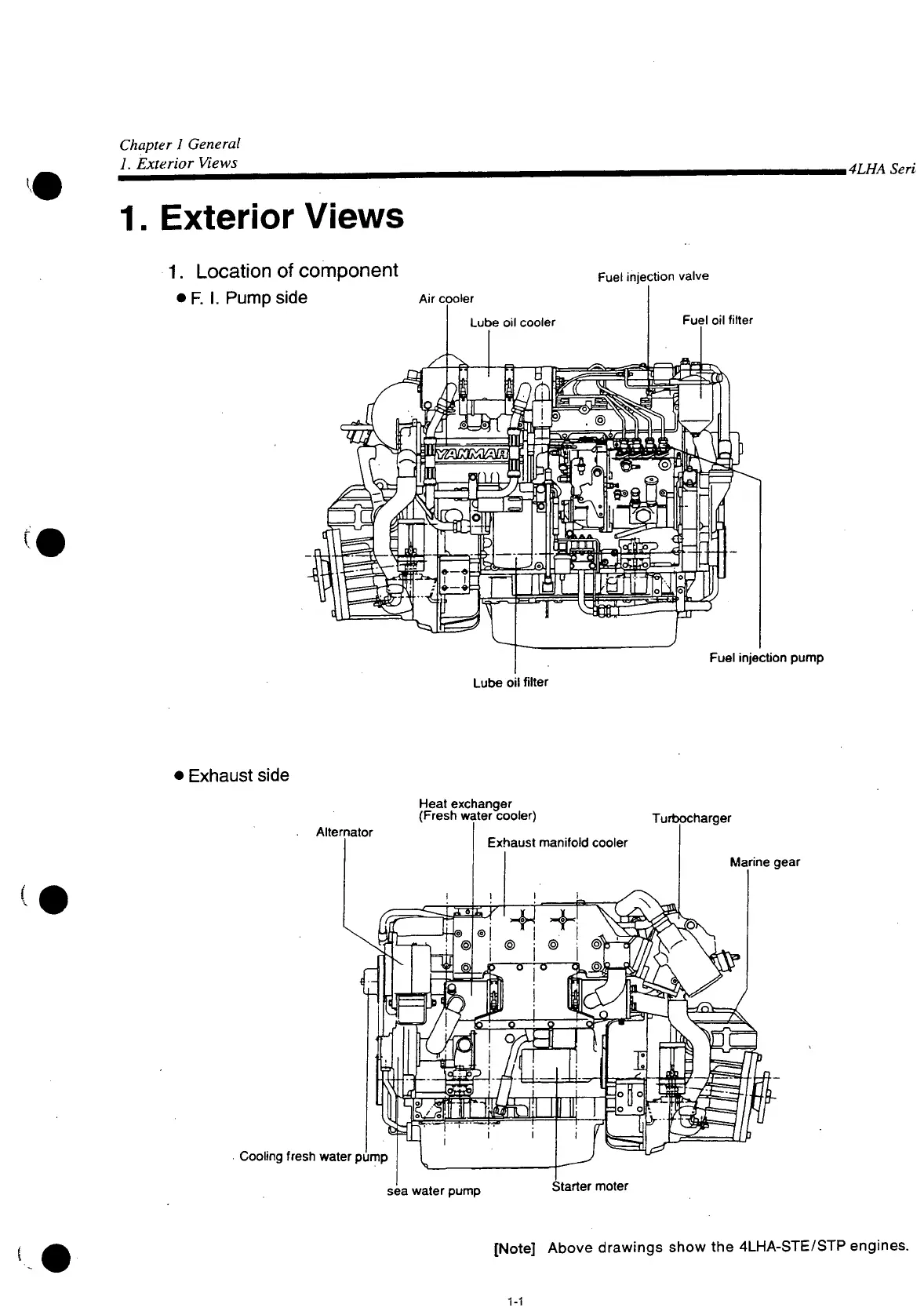

Chapter
1
General
1. Exterior Views
,4LHA Seri
1.
Exterior
Views
1. Location of
component
• F. I. Pump Side Air cooler
Fuel
injection valve
Fuel
oil
filter
Fuel
injection pump
Lube
oil
filter
Exhaust
side
Heat
exchanger
(Fresh
water cooler)
Alternator
Turbocharger
Marine
gear
Cooling
fresh water pump
sea
water pump
Starter moter
[Note]
Above drawings show the
4LHA-STE/STP
engines.
