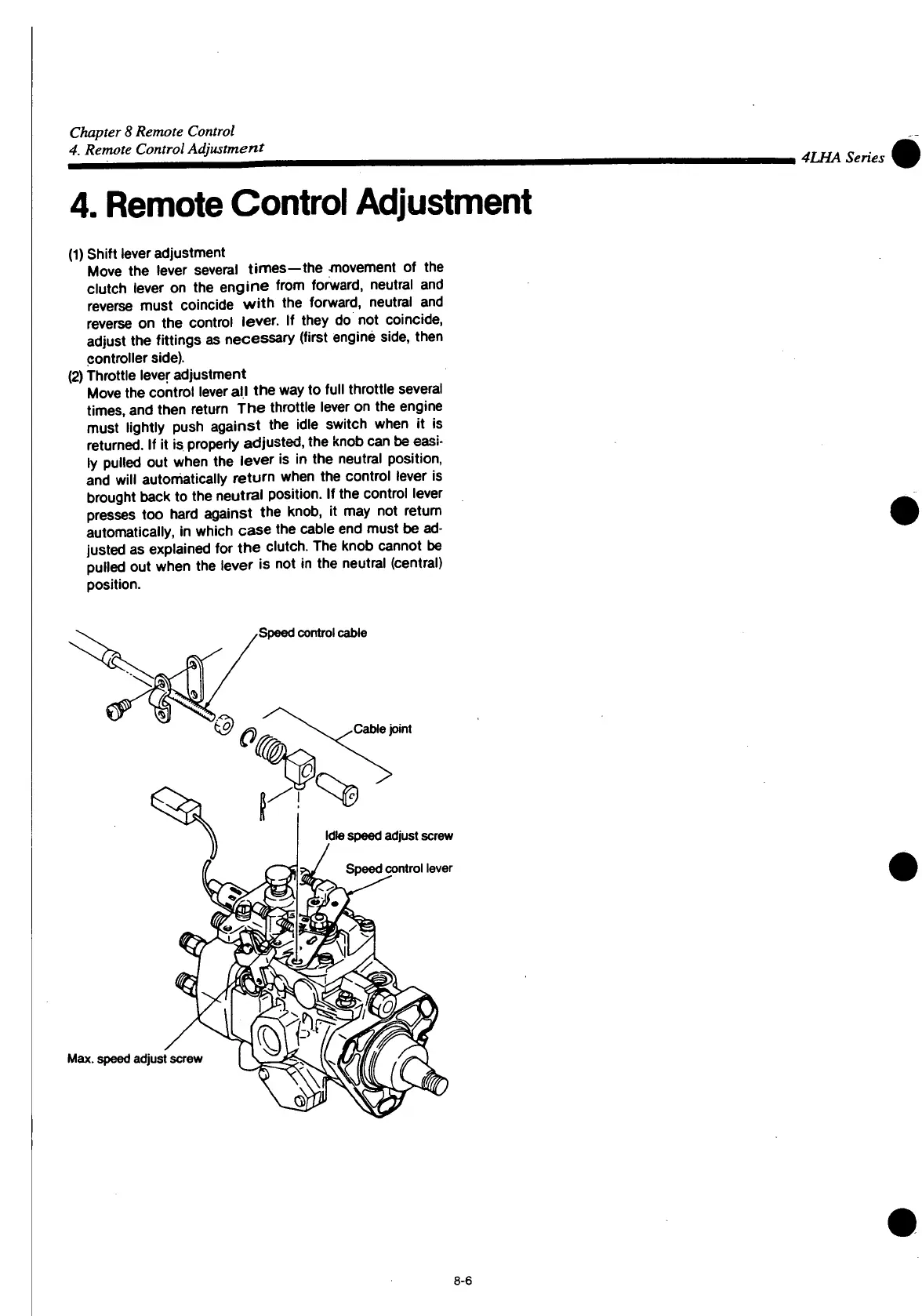

Chapter 8 Remote Control
4. Remote Control Adjustment
4LHA Series
4.
Remote
Control
Adjustment
(1) Shitt lever adjustment
Move
the lever several times—the /novement of the
clutch lever on the engine from forward, neutral and
reverse
must coincide
with
the forward, neutral and
reverse
on the control lever. If they do not coincide,
adjust the
fittings
as
necessary
(first
engine
side,
then
controller
side).
(2)
Throttle
lever
adjustment
Move
the control
lever
all the way to
full
throttle
several
times,
and then
return
The
throttle
lever on the engine
must lightly push against the idle switch when it is
returned. If it is property
adjusted,
the knob
can
be
easi-
ly pulled out when the lever is in the neutral position,
and
will automatically
return
when the control lever is
brought back to the neutral position. If the control lever
presses
too hard against the knob, it may not
return
automatically, in which
case
the cable end must be ad-
justed as
explained
for the clutch. The knob cannot be
pulled
out when the lever is not in the neutral (central)
position.
Speed
control cable
Cable
joint
Idle
speed
adjust screw
Speed
control lever
Max.
speed
adjust screw
8-6
