1.2 Model Number and Nameplate Check
Please perform the following tasks after receiving the drive:
• Inspect the drive for damage.
If the drive appears damaged upon receipt, contact the shipper immediately.
• Verify receipt of the correct model by checking the information on the nameplate.
• If you have received
the wrong model or the drive does not function properly, contact your
supplier.
u
Nameplate
TYPE 1 ENCLOSURE
IP20
IND.CONT.EQ.
7J48
CIMR-J
:
: AC3PH 200-240V 50/60Hz 2.7A/1.4A
: AC3PH 0-240V 0-400Hz 1.2A/0.8A
: 0.9 kg
:
:
: E131457
PASS
MODEL
MAX APPLI. MOTOR : 0.75kW / 0.4kW REV : A
INPUT
OUTPUT
MASS
O / N
S / N
FILE NO
KCC - REM - Yec
- CIMR - V1000
- XXX
J
I
H
G
E
B
A
YASKAWA ELECTRIC CORPORATION MADE IN JAPAN
2-1 Kurosaki-shiroishi, Yahatanishi-Ku, Kitakyushu 806-0004 Japan
C
F
D
A – Normal Duty Amps /
Heavy Duty Amps
B – Software version
C – Enclosure type
D –
KC mark
<1>
E –
Address
<2>
F
– Serial number
G – Lot number
H – Output specifications
I – Input specifications
J – AC drive model

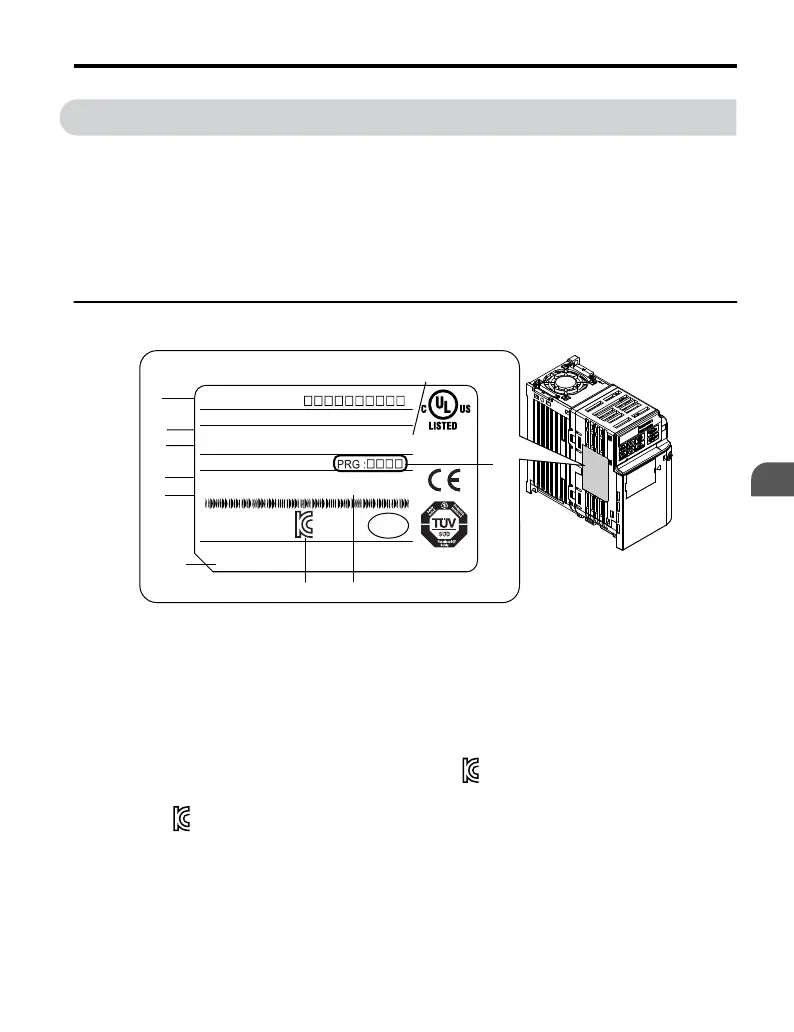

Figure 1.1 Nameplate Information Example
<1>
Drive models CIMR-JToooooo bearing the
mark conform to the Korean Radio Waves
Act and are designated for use in Asia (Region code: T).
마크가 부착되어 있는 제품은 한국 전파법에 적합한 아시아향 기종
(형식: CIMR-JToooooo)입니다.
<2> The address of the head office of Yaskawa Electric Corporation (responsible for product
liability) is shown on the nameplate.
1.2 Model Number and Nameplate Check
YASKAWA ELECTRIC TOEP C710606 25D YASKAWA AC Drive J1000 Installation & Start-Up Manual
23
