Installation Orientation and Spacing

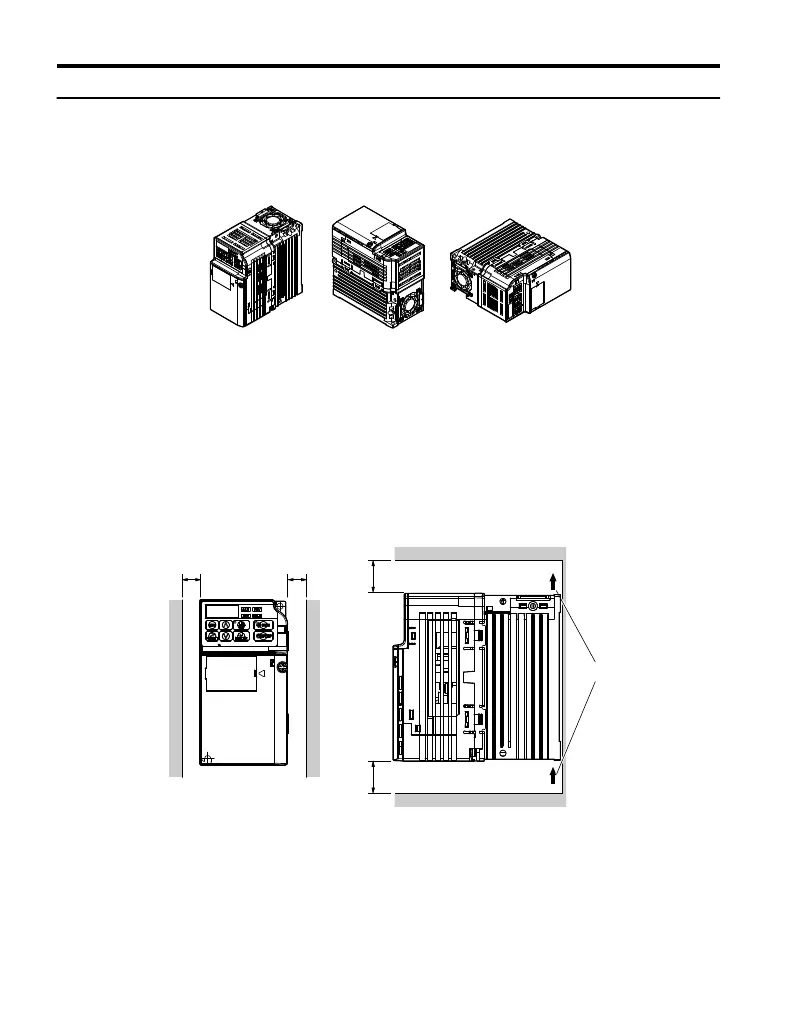

Install the drive upright as illustrated in Figure 2.1 to maintain proper cooling.
A
B
B
A – Correct B – Incorrect
Figure 2.1 Correct Installation Orientation
n
Single Drive Installation
Figure 2.2 explains the required installation spacing to maintain sufficient space for airflow
and wiring. Install the heatsink against a
closed surface to avoid diverting cooling air around
the heatsink.
A
A
C
C
B
Side Clearance
Top/Bottom Clearance
A – 30 mm minimum
B – Airflow direction
C – 100 mm minimum
Figure 2.2 Correct Installation Spacing
Note: The space required on the left and
right sides of the drive are the same for IP20/Open-Chassis drives and
IP20/NEMA Type 1 drives using the NEMA Type 1 Kit option.
