1.3 Component Names
This section illustrates drive components in the IP20/Open-Chassis models.
Refer to NEMA Type 1 Kit on page 202 for information on using the NEMA Type 1 Kit
option to create a NEMA Type 1 rating.
u
IP20/Open-Chassis
n
Single-Phase AC 200 V BA0001B to BA0003B
Three-Phase AC 200 V 2A0001B to 2A0006B
K
A
B
C
D
E
G
H
J
I
F
A – Mounting hole
B – Heatsink
C – Cable cover
D – Terminal cover
E
– Front cover screw
F – Option connector cover
G – Front cover
H – LED operator Refer to
Using the Digital LED
Operator on page 79
I – Case
J –
Cooling fan
<1>
K –
Fan cover
<1>

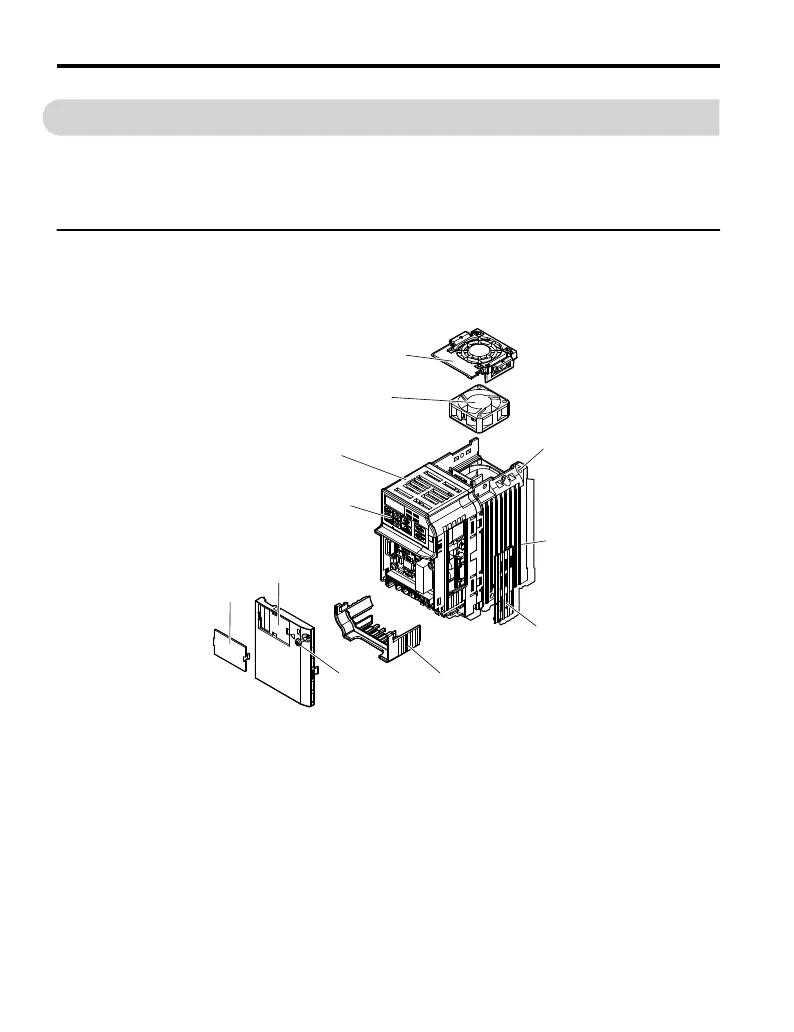

Figure 1.2 Exploded View of IP20/Open-Chassis Type Components
(Model 2A0006B)
<1>
Models BA0001B to BA0003B and 2A0001B to 2A0004B do not have a cooling fan or a
cooling fan cover.
1.3 Component Names
26
YASKAWA ELECTRIC TOEP C710606 25D YASKAWA AC Drive J1000 Installation & Start-Up Manual
