Medium voltage Solid State Starter screen

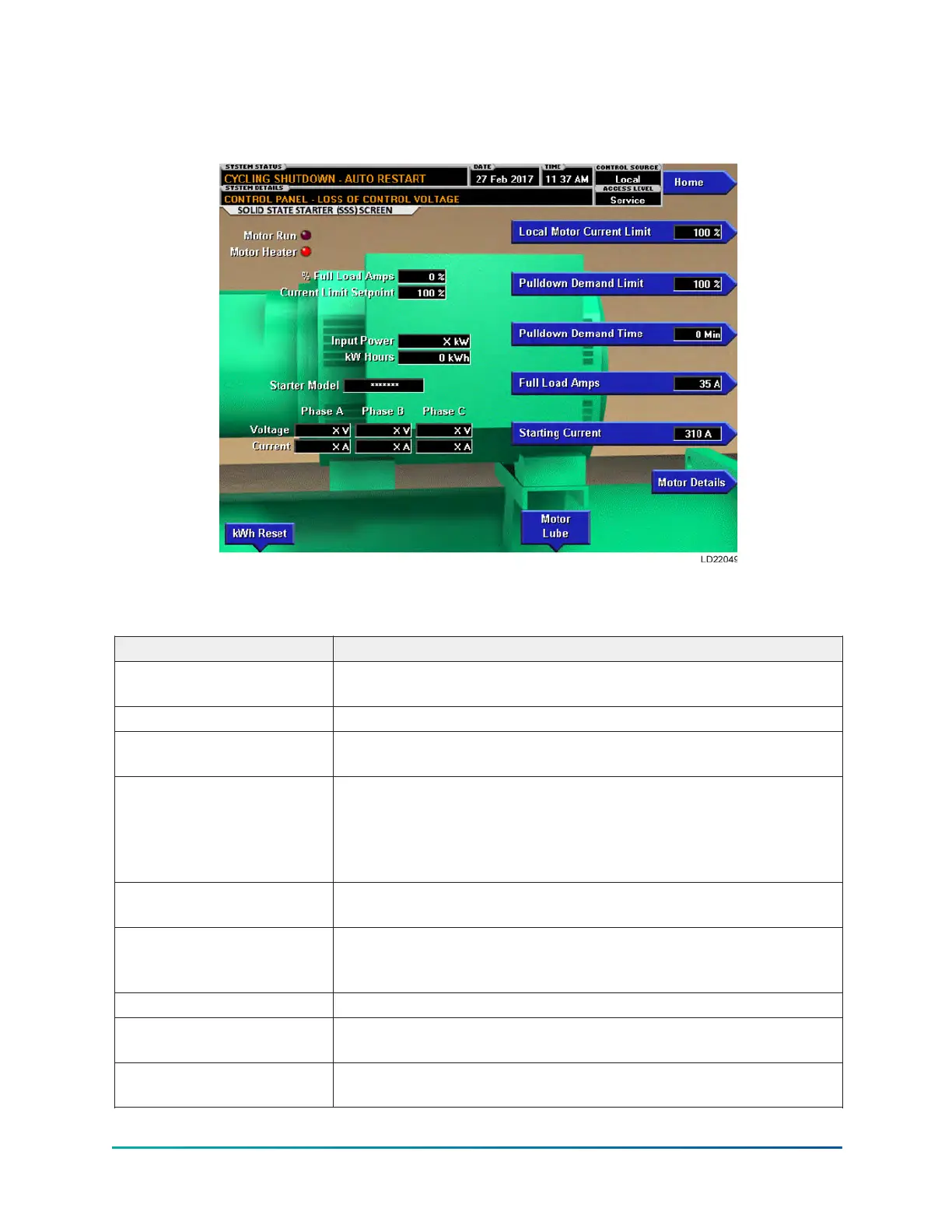

Figure 37: Medium voltage Solid State Starter screen
This screen displays all information pertinent to the Medium Voltage Solid State Starter (MVSSS).
Table 100: Display only
Field/LED name Description
Motor Run (LED)
Indicates when the OptiView Control Center is commanding the
motor to run.
Motor Heater (LED) Indicates whether the optional Motor Heater is ON or OFF.
Motor Current % Full Load
Amps
Displays the motor current as a percentage of Job Full Load Amps
Setpoint.
Current Limit Setpoint
Displays the current limit in use. This value could come from a
0 to 20mA, 4 to 20mA, 0 to 10VDC or 2 to 10VDC input in Analog
Remote mode, PWM signal in Digital Remote mode, E-Link or SC-
EQ communications interface in ISN Remote mode or a locally
programmed value in Local mode.
Input Power
Displays the kilowatts measured by and transmitted from the
starter.
KW Hours
Displays the cumulative kilowatt hours. The microboard calculates
this value from the Input Power transmitted from the starter. When
the number exceeds 999999 KWH, the value will rollover to zero.
Starter Model Displays the starter model number as transmitted from the starter.
Voltage – Phase A, B, C
Displays the 3-phase input line voltage as measured by and
transmitted from the starter.
Current – Phase A, B, C
Displays the 3-phase motor current as measured by and transmitted
from the starter.
YK-EP Style B Centrifugal Chiller104
