Common slots screen

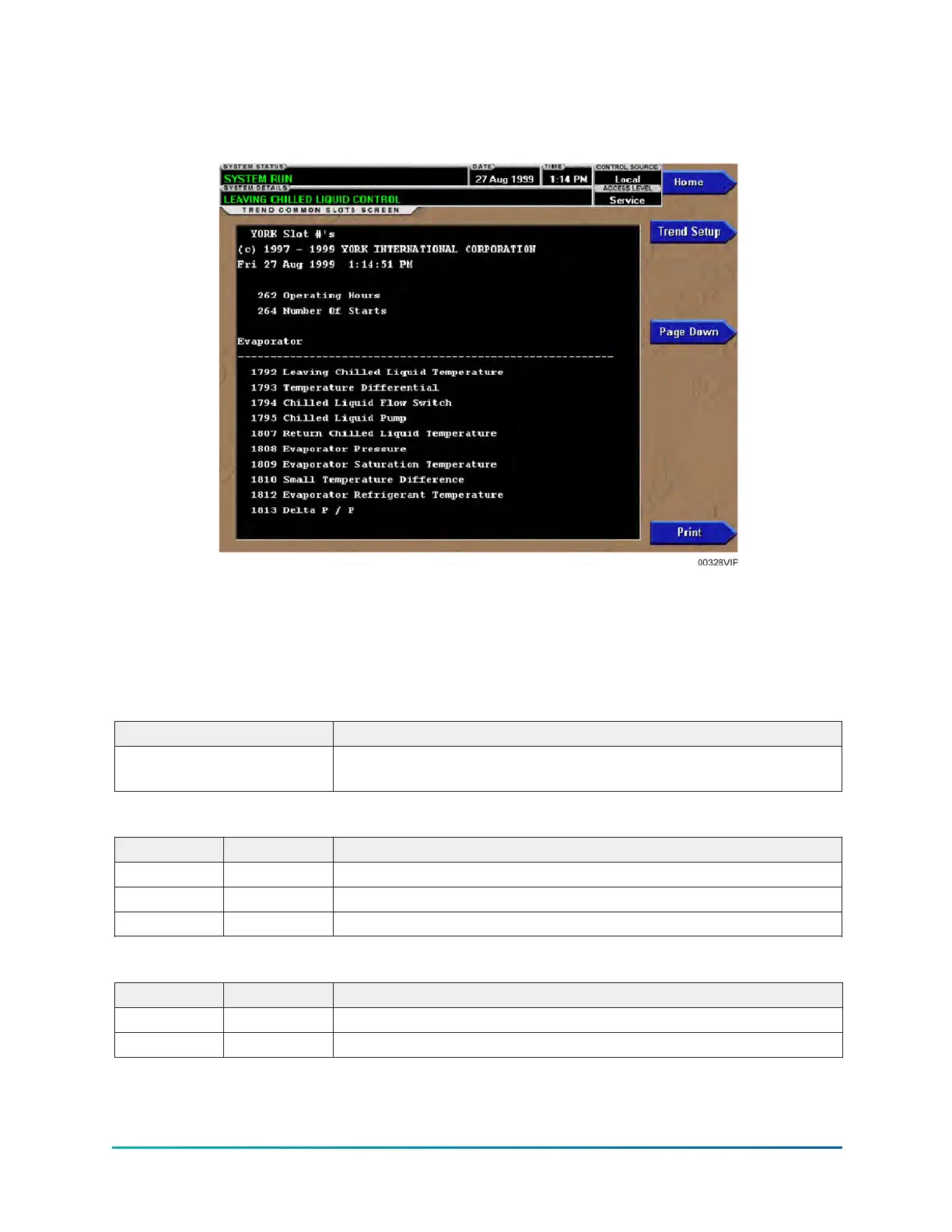

Figure 68: Common slots screen
This screen displays the Slot Numbers of the commonly monitored parameters. The Slot Numbers
for the remainder of the available parameters are listed on the Master Slot Numbers List shown in
Table 195.
From these lists, select up to six parameters to be trended. Return to the TREND SETUP Screen and
enter the parameters Slot Numbers into Data Points 1 through 6.
Table 192: Display only
Field/LED name Description
Slot Numbers
These are the Slot Numbers of the most commonly used
parameters.
Table 193: Programmable
Button Access level Description
Page Down Operator Scroll down in the displayed data
Page Up Operator Scroll up in the displayed data
Print Operator Generates a list of the Slot Numbers of the available parameters.
Table 194: Navigation
Button Access level Description
Home View Returns user to HOME Screen.
Trend Setup View Returns user to TREND SETUP Screen.
