Evaporator screen

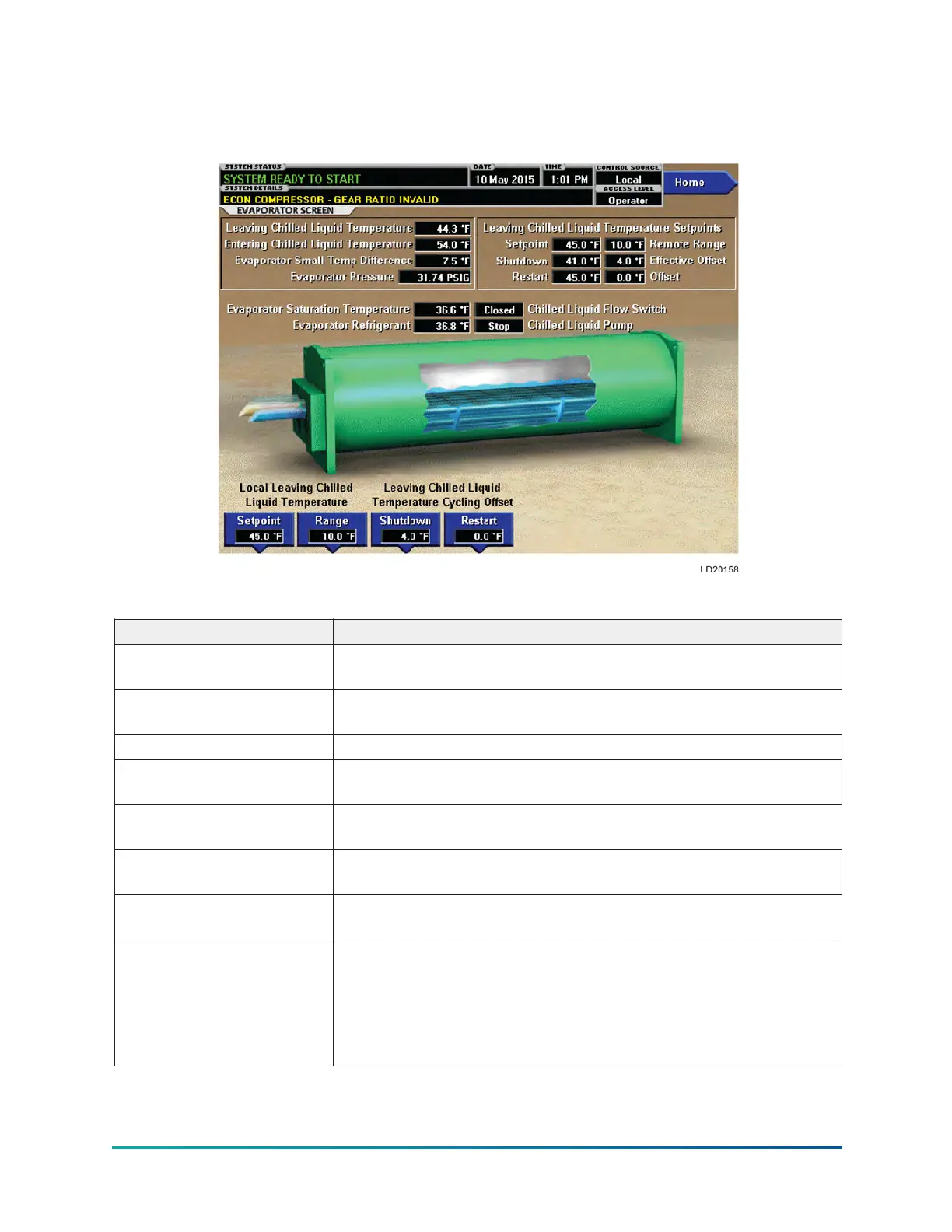

Figure 9: Evaporator screen
Table 13: Display only fields
Field/LED name Description
Chilled Liquid Flow Switch
(Open / Closed)
Displays whether the liquid flow is present in the evaporator.
Chilled Liquid Pump
Displays the command presently sent by the Control Center to the
Chilled Liquid Pump (RUN or STOP).
Evaporator Pressure Displays the present refrigerant pressure in the evaporator.
Evaporator Saturation
Temperature
Displays the present saturation temperature in the evaporator.
Return Chilled Liquid
Temperature
Displays the temperature of the liquid as it enters the evaporator.
Leaving Chilled Liquid
Temperature
Displays the temperature of the liquid as it leaves the evaporator.
Evaporator Refrigerant
Temperature
Displays the temperature of the refrigerant in the evaporator, if the
sensor is present.
Evaporator Small
Temperature Difference
Displays the difference between the Leaving Chilled Liquid
temperature and the Evaporator Refrigerant Temperature. The
Evaporator Refrigerant Temperature will be represented by the
Refrigerant Temperature sensor input if the sensor is present,
otherwise it will be represented by the Evaporator Saturation
Temperature.
YK-EP Style B Centrifugal Chiller30
