Electro-mechanical starter screen

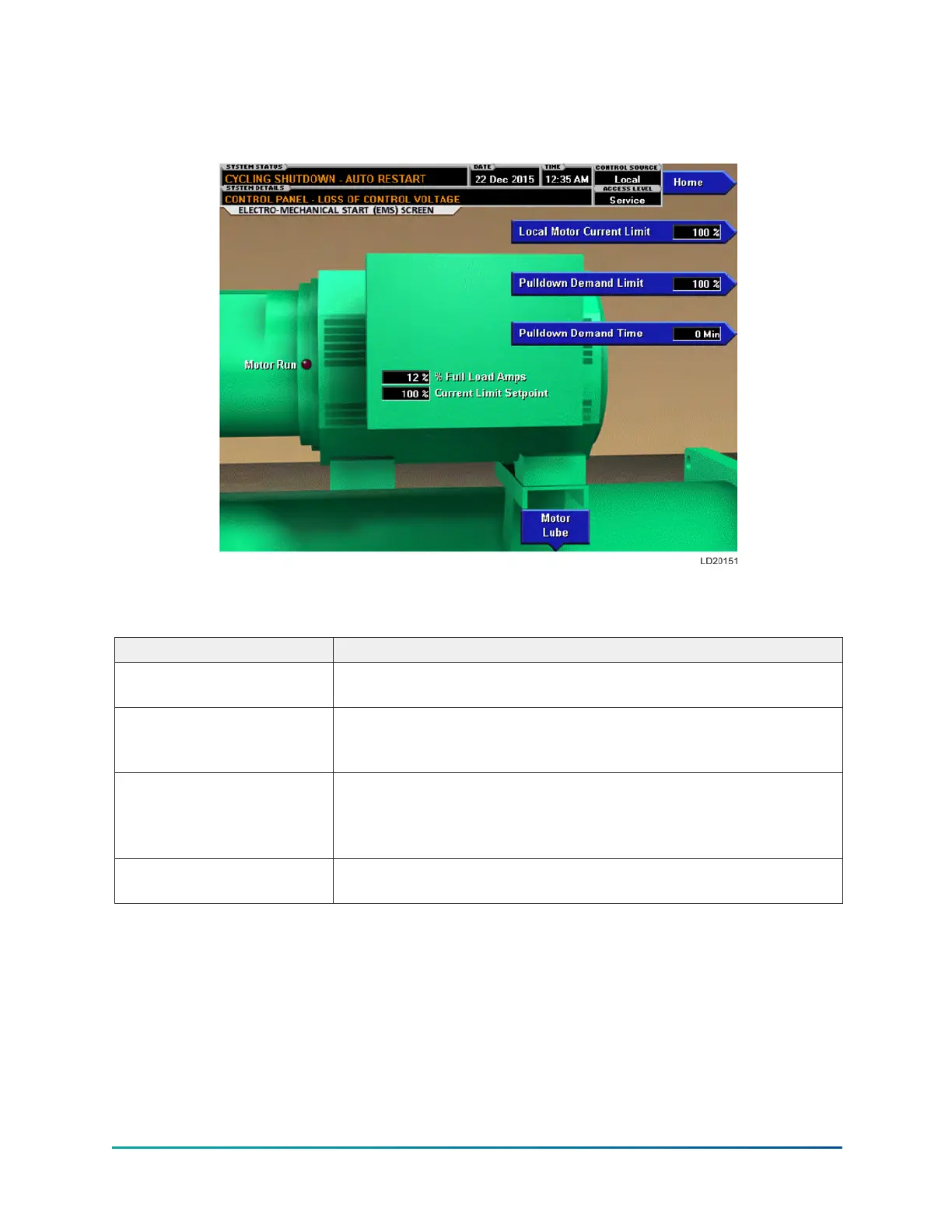

Figure 34: Electro-mechanical starter screen
This screen displays all information pertaining to the Electro-Mechanical Starter.
Table 91: Display only
Field/LED name Description
Motor Run (LED)
Indicates whether the digital output from the controls is
commanding the motor to RUN.
Motor Current % Full Load
Amps
Displays the motor current as a percentage of the Full Load Amps
(FLA) value. For the Electro-Mechanical Starter this is the data
returned by the CM-2 board.
Current Limit Setpoint
Displays the current limit value in use. This value could come from
a 0 to 20mA, 4 to 20mA, 0 to 10VDC or 2 to 10VDC input in Analog
Remote mode, PWM signal in Digital Remote mode, E-Link Gateway
interface in ISN mode, or a locally programmed value.
Pulldown Demand Time Left
Displays the time remaining in the programmed pulldown period if
the value is nonzero.
YK-EP Style B Centrifugal Chiller98
